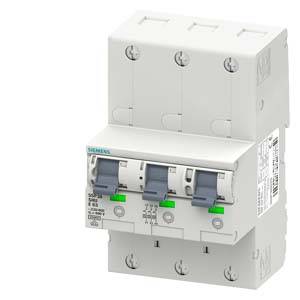

Siemens 5SP38163 5SP3816-3 Main RCCB 16 A 230 V, 400 V
Product type
Main RCCB
Number of pins
3
Release characteristics
E
Nominal current - rounded value
16 A
RoHS-compliant
Yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 285.00 / piece)
€ 285.00
incl. VAT
14-day return policy included
Technical specifications
- IP40, with the connected conductors
- Product type
Main RCCB
- Number of pins
3
- Release characteristics
E
- RoHS-compliant
Yes
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Factory colour
Grey

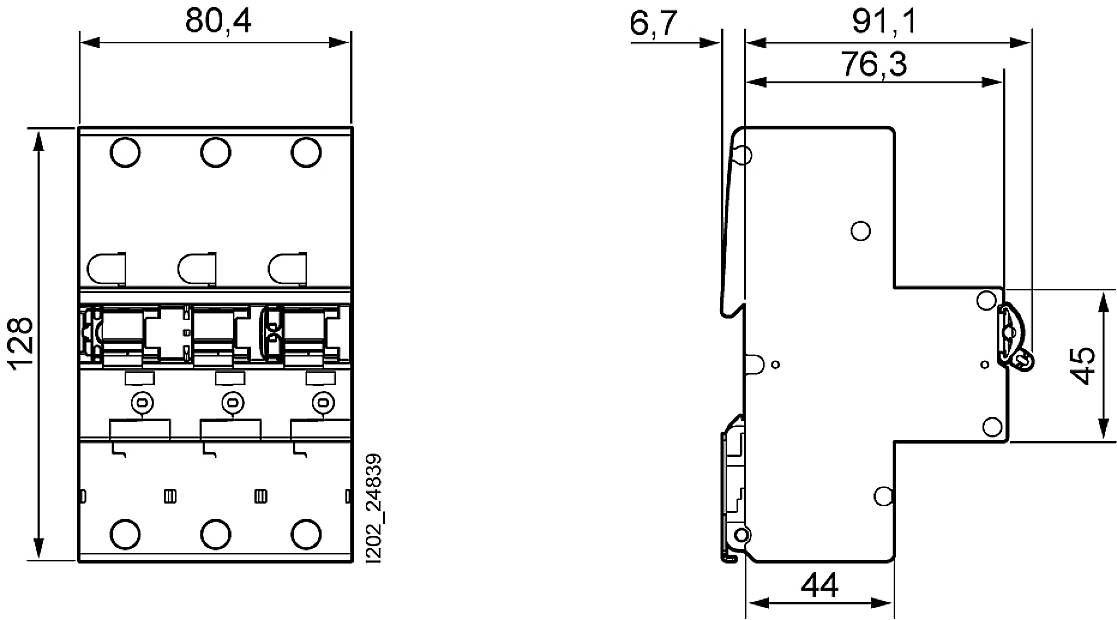

- Dim
(W x H x D) 80.4 x 128 x 76.3 mm
- Content
1 pc(s)
- Operating voltage
440 V
- Nominal voltage
230 V
400 V
- Compatible with (details)
SENTRON
- Width
80.4 mm
- Height
128 mm
- Depth
76.3 mm
DIN rail
50 Hz
16 A
400 V
E
690 V
3
25 A
2
3
6 kV
IP40
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1727038 Siemens 5SP38163 5SP3816-3 Main RCCB 16 A 230 V, 400 V
Datasheet 1727038 Siemens 5SP38163 5SP3816-3 Main RCCB 16 A 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 1727038 Siemens 5SP38163 5SP3816-3 Main RCCB 16 A 230 V, 400 V
Description
Main miniature circuit breaker (SHU), 3x 1-pole, E 16, 400V The miniature circuit breaker is the fuse for short-circuit protection www.siemens.com/global/en/home/products/energy/low-voltage/components/sentron-protection-devices/miniature-circuit-breakers.html. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
