Buy Siemens 8GK9710-0KK00 Busbar mount 1 pc(s) Piece

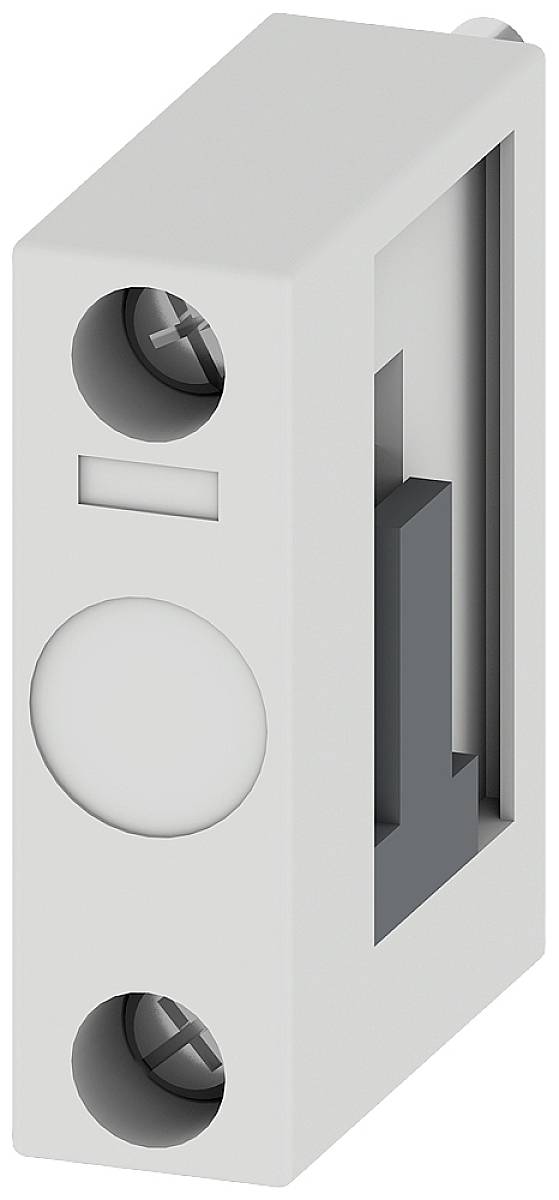

A rectangular, grey electronic component block with exposed screw connections and internal components, suitable for technical applications.

Image similar

Packaging type

Piece

Product type

Busbar mount

Type

For copper 12, 20, 30 x 5, 10

Nominal current

630 A

Weight

59 g

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

2 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 22.68 / piece)

€ 22.68

plus VAT.

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Alpha, busbar holder, for rails: 12-30 x 5-10mm, 1-pole, 60 mm

Our service for you

Technical specifications

Rail center distance 60 mm

Packaging type: Piece

Product type: Busbar mount

Type: For copper 12, 20, 30 x 5, 10

Nominal current: 630 A

Weight: 59 g

Length: 49.5 mm

Width: 20 mm

Height: 65 mm

Dim: (L x W x H) 49.5 x 20 x 65 mm

Compatible with (details): Rails 12-30 x 5-10 mm

Content: 1 pc(s)

Type: 8GK9710-0KK00

RoHS-compliant: Yes

Number of pins: 1

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2862219 Siemens 8GK9710-0KK00 Busbar mount 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2862219 Siemens 8GK9710-0KK00 Busbar mount 1 pc(s) Piece

Description

Alpha, busbar holder, for rails: 12-30 x 5-10mm, 1-pole, 60 mm The Alpha installation distributor - a complete system of wall and stand distributors for installation of devices up to 1250 A. Alpha - the system concept counts. The Alpha distribution systems are tested according to IEC 61439 and are based on a common platform structure with extensive versions up to 1250 A. Due to the platform structure and the modular structure, the device-specific installation kits can be integrated into different distribution versions. This makes planning and installation easier. The assembly is carried out individually and project-specific. The configuration software SIMARIS configuration supports from planning through to documentation of the power distribution and installation distributors Alpha.

This text is machine translated.
