Siemens Buzzer 8WD42400FA 8WD4240-0FA 1 pc(s)

A black, cylindrical adapter with 'SIEMENS' written on top.
A yellow charging point with green, yellow, and red lights in the foreground. A person in workwear is blurred in the background.

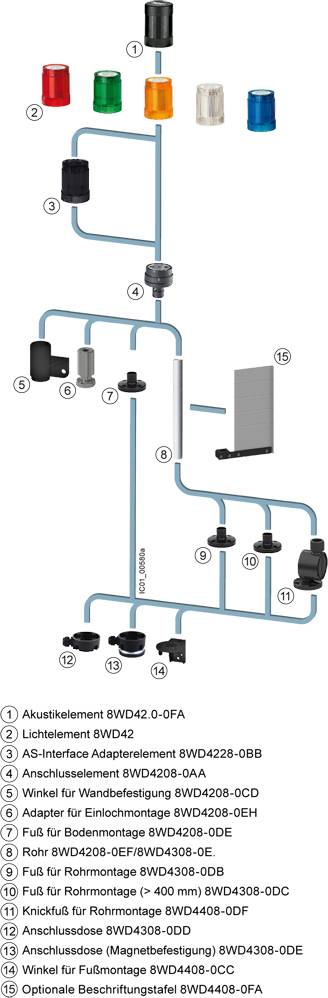

'Diagram shows a piping system with coloured elements. Each part is numbered with labels from 1 to 14 to explain its function.'

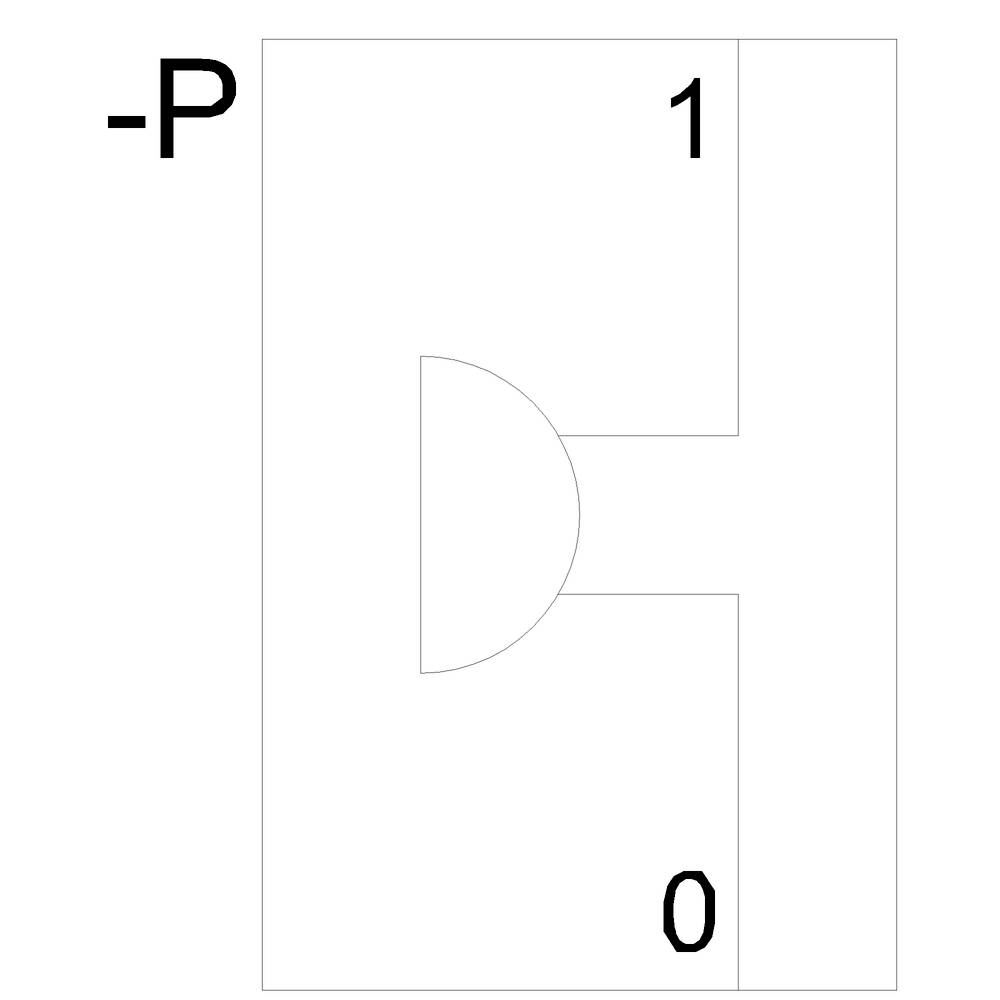

'1 P 0' in a stylised space, resembling a game field. Top left: '-P', top right: '1', bottom: '0'.

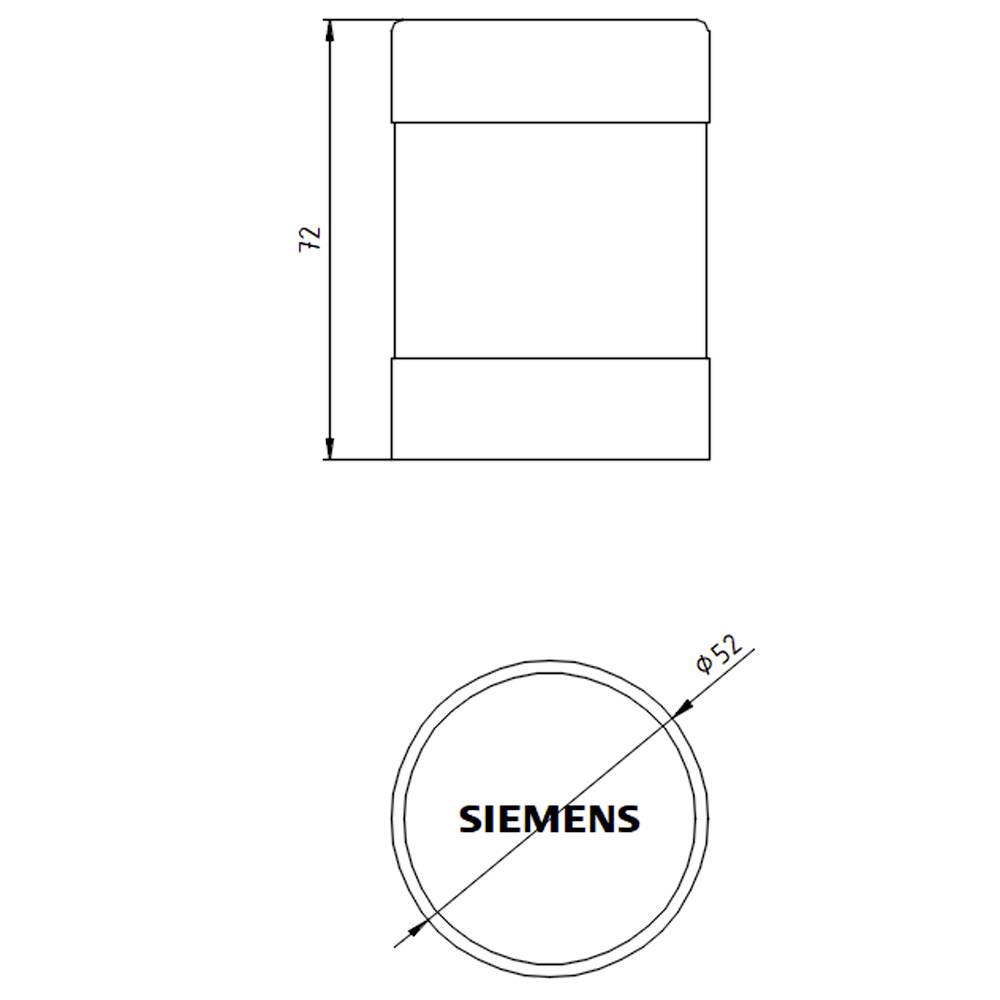

Technical drawing of a cylindrical object with a height of 72 mm and diameter of 52 mm. Labelled with "SIEMENS".
1/5
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 104.99 / piece)
€ 104.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Ambient temperature: -20 °C to +50 °C
  • Maximum current consumed: 35 mA
Product type

Buzzer

Operating voltage

115 V

Max. current consumption

35 mA

Factory colour

Black

Signal type

Non-stop acoustic signal

(Ø)

50 mm

Height

72 mm

IP54

Dim

(Ø x H) 50 mm x 72 mm

Width

52 mm

Material

PC

Type

8WD4240-0FA

Noise emission (max.)

85 dB

Weight

66 g

Type

Bayonet

Max. temperature

+50 °C

Min. temperature

-20 °C

Black

50 mm

Continuous tone/pulse tone

85 dB

AC/DC

IP54

TRUE

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1701616 Siemens Buzzer 8WD42400FA 8WD4240-0FA 1 pc(s)

Datasheet 1701616 Siemens Buzzer 8WD42400FA 8WD4240-0FA 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1701616 Siemens Buzzer 8WD42400FA 8WD4240-0FA 1 pc(s)

Description

Spare part for rotary operating mechanism 8UC6 Extension shaft 600 mm long 6x 6 mm
