Name: Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1KB0 Overload
Brand: Siemens
SKU: 1430980
Availability: InStock

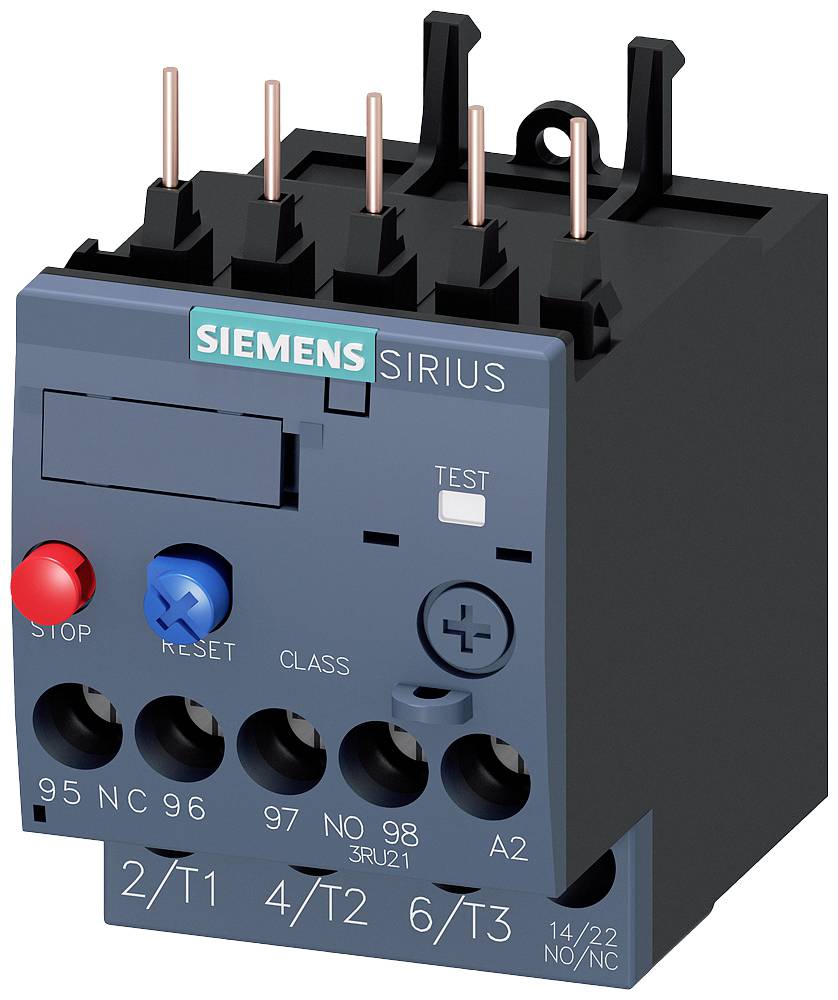

A Siemens Sirius overload relay with multiple terminals, red stop and blue reset buttons, and a test button is illustrated.

An open electrical control cabinet with cables, switches, and components for electrical controls, mounted in multiple rows.

'Illustration of a switch with nine marked components including current rail, thermal overload relay, and reset button.'

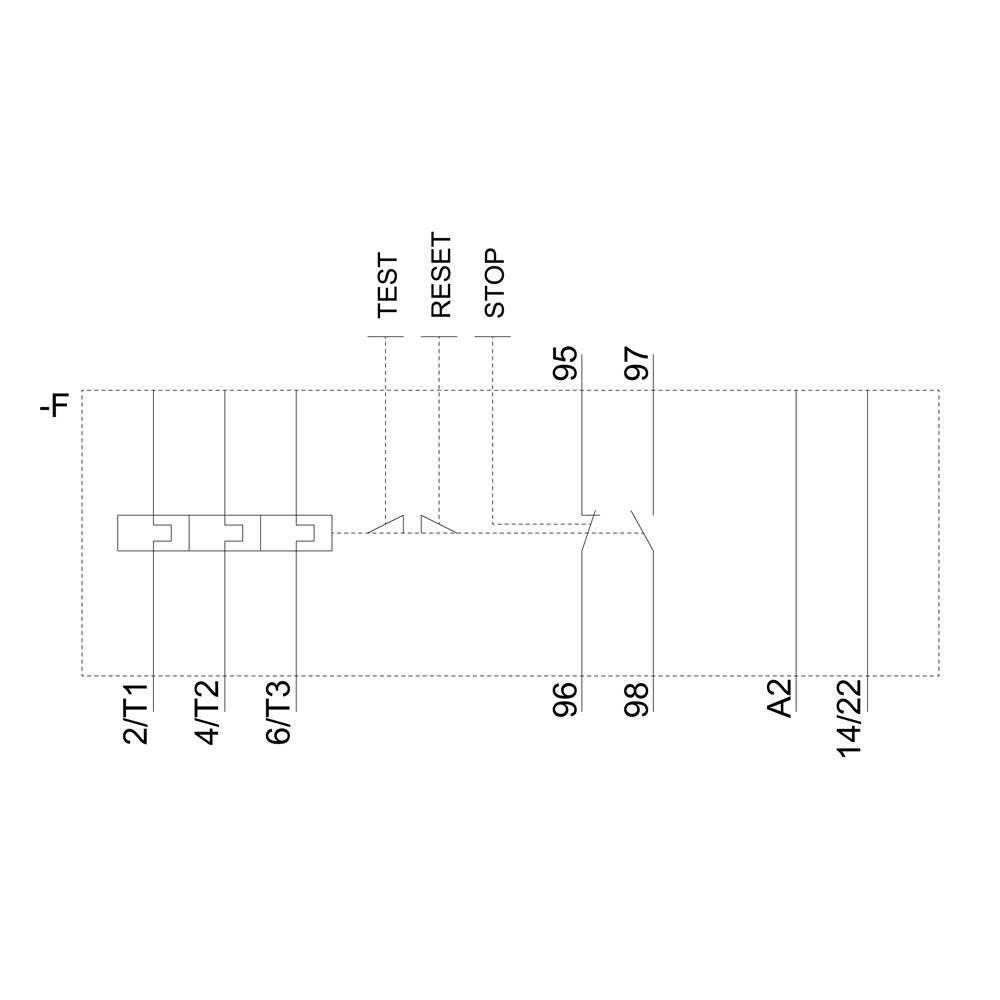

Description of an electrical circuit diagram: shows connections between components, marked with 'TEST', 'RESET', 'STOP'.

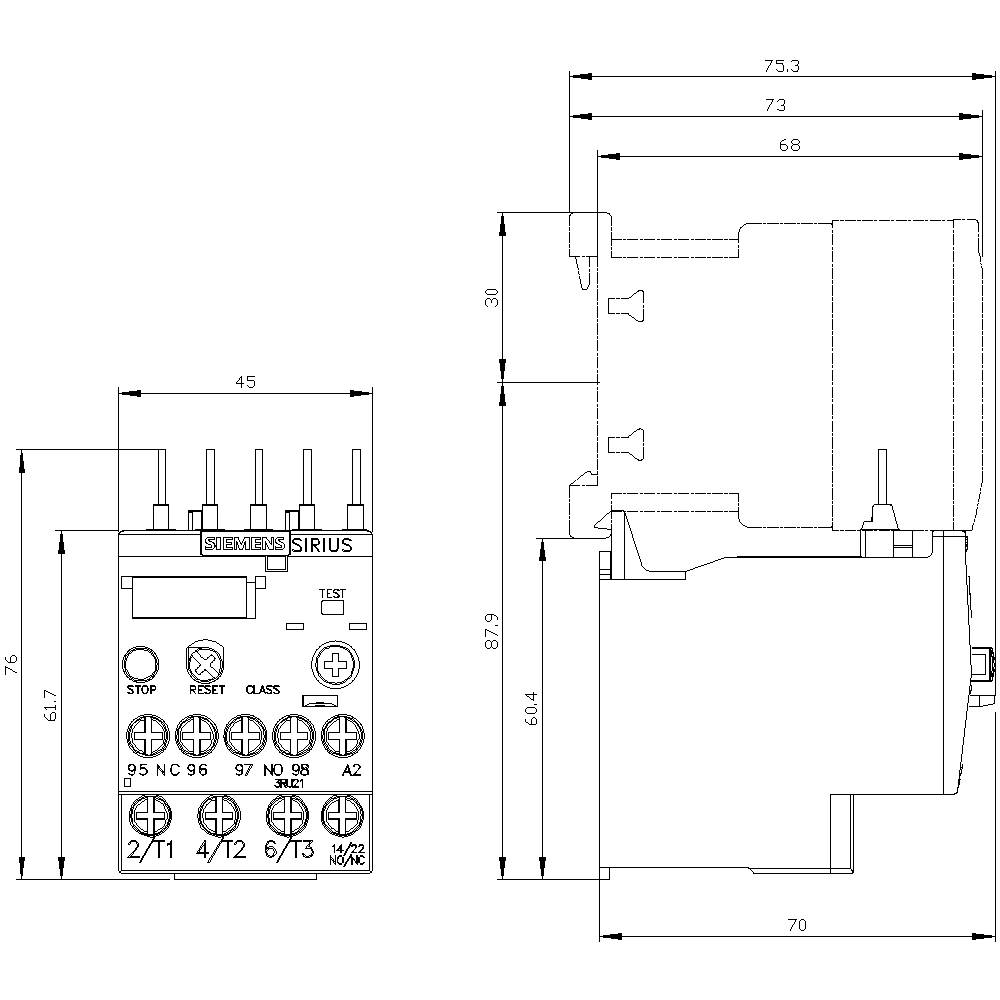

'Technical drawing of a SIRIUS device with precise dimensions in millimetres and labelled connections on the front and side views.'

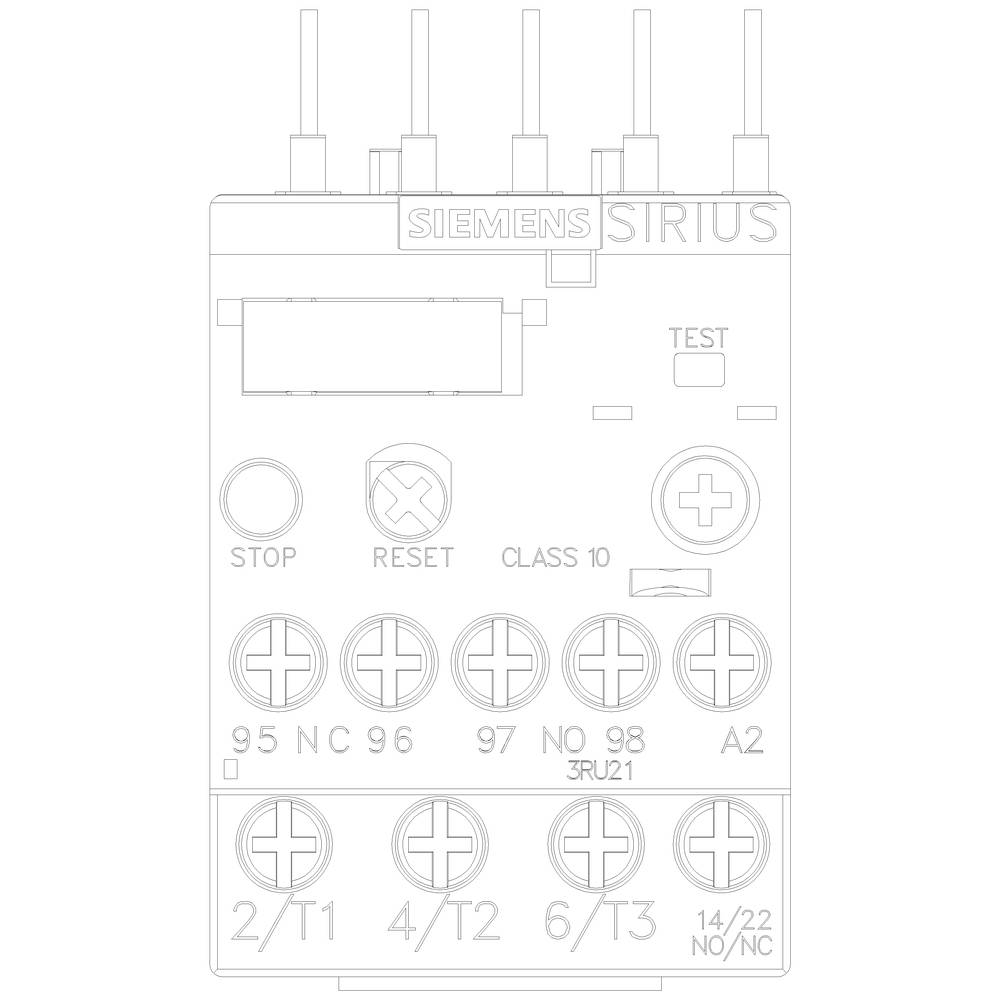

A Siemens SIRIUS contactor with 'STOP' and 'RESET' buttons, classified as 'CLASS 10' with multiple connection terminals.

1/6

Image similar

Packaging type

Piece

Product type

O/L relay

Functions

Overload

Max. operating voltage

690 V AC

Contact type

1 maker

1 breaker

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Size of combined protection: S00; Mounting Type: installing contactor

Packaging type: Piece

Product type: O/L relay

Type: 3RU2116-1KB0

Functions: Overload

Operating voltage: 690 V AC

Max. operating voltage: 690 V AC

Operating voltage: 690 V AC (max)

Features: Automatic/manual switch

Contact type: 1 maker
1 breaker

Connection: Screws

Min. temperature: -40 °C

Max. temperature: +70 °C

: IP20

Width: 45 mm

Height: 76 mm

Depth: 70 mm

Dim: (L x W x H) 400 cm x 45 mm x 76 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Length: 400 cm

Type: S00

Amperage adjustment range (max.): 12.5 A

Amperage adjustment range (min.): 9 A

Weight: 0.1452 kg

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Functions

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1KB0 Overload

Item no:1430980

Fast track dispatch on Fri 6 Nov

3 Piece(s)Conrad Electronic

This article

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-0GB0 Phase error, Overload

Item no:1430966

Dispatches on Thu 12 Nov

Conrad Electronic

Phase error

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-0HB0 Overload

Item no:1430991

Dispatches on Thu 12 Nov

Conrad Electronic

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-0JB0 Overload

Item no:1431066

Dispatches on Thu 12 Nov

Conrad Electronic

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1AB0 Overload, Phase error

Item no:1431152

Fast track dispatch on Fri 6 Nov

7 Piece(s)Conrad Electronic

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1BB0 Overload

Item no:1431153

Dispatches on Thu 12 Nov

Conrad Electronic

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1DB0 Overload

Item no:1431154

Fast track dispatch on Fri 6 Nov

4 Piece(s)Conrad Electronic

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1EB0 Overload

Item no:1431004

Dispatches on Thu 12 Nov

Conrad Electronic

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1GB0 Overload

Item no:1431177

Fast track dispatch on Fri 6 Nov

2 Piece(s)Conrad Electronic

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1HB0 Overload

Item no:1431016

Fast track dispatch on Fri 6 Nov

1 Piece(s)Conrad Electronic

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Documents & Downloads

Datasheet

Datasheet 1430980 Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1KB0 Overload

User & Safety Instructions

User & Safety Instructions 1430980 Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1KB0 Overload

Description

Overload relay 9.0...12.5 A thermal for motor protection Size S00, CLASS 10 contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual automatic RESET SIRIUS 3RU2 thermal overload relay for current-dependant protection of consumers with normal start-up against impermissible high heating due to overload or phase failure.
This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous applications (ATEX or IEC Ex) are a matter of course.
Available with different adjustment ranges of the overload release. They are available with screw or spring-type terminals for quick, maintenance-free and vibration-proof connection, as well as for stand-alone installation.
The accessories fit all sizes S00 to S3.
Simple, efficient, always up-to-date - the SIRIUS modular system.

This text is machine translated.
