Name: Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2126-4FB0 Overload
Brand: Siemens
SKU: 1431142
Availability: BackOrder

A Siemens electrical overload relay from the Sirius series with three terminals and control buttons.

An open electrical cabinet reveals multiple rows of electrical components and wiring used for controlling industrial processes.

'Circuit diagram of an electrical overload relay 3RU21 with frame sizes 500 to S3. Shows individual components and connections, including RESET options.'

Circuit diagram of a mechanism with three vertical buttons labelled 'TEST', 'RESET', and 'STOP'. Horizontal lines indicate connections.

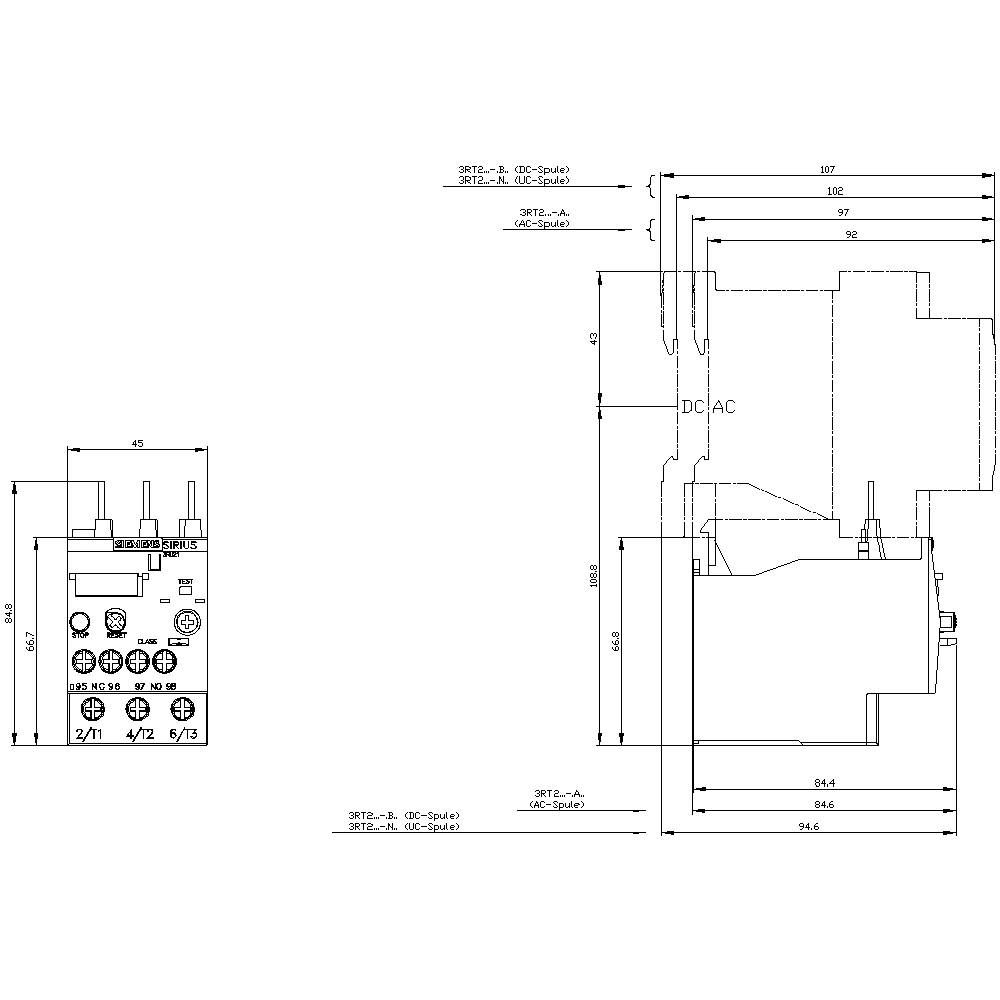

Technical drawing of an electrical component showing front and side views. Dimensions and connection details are provided.

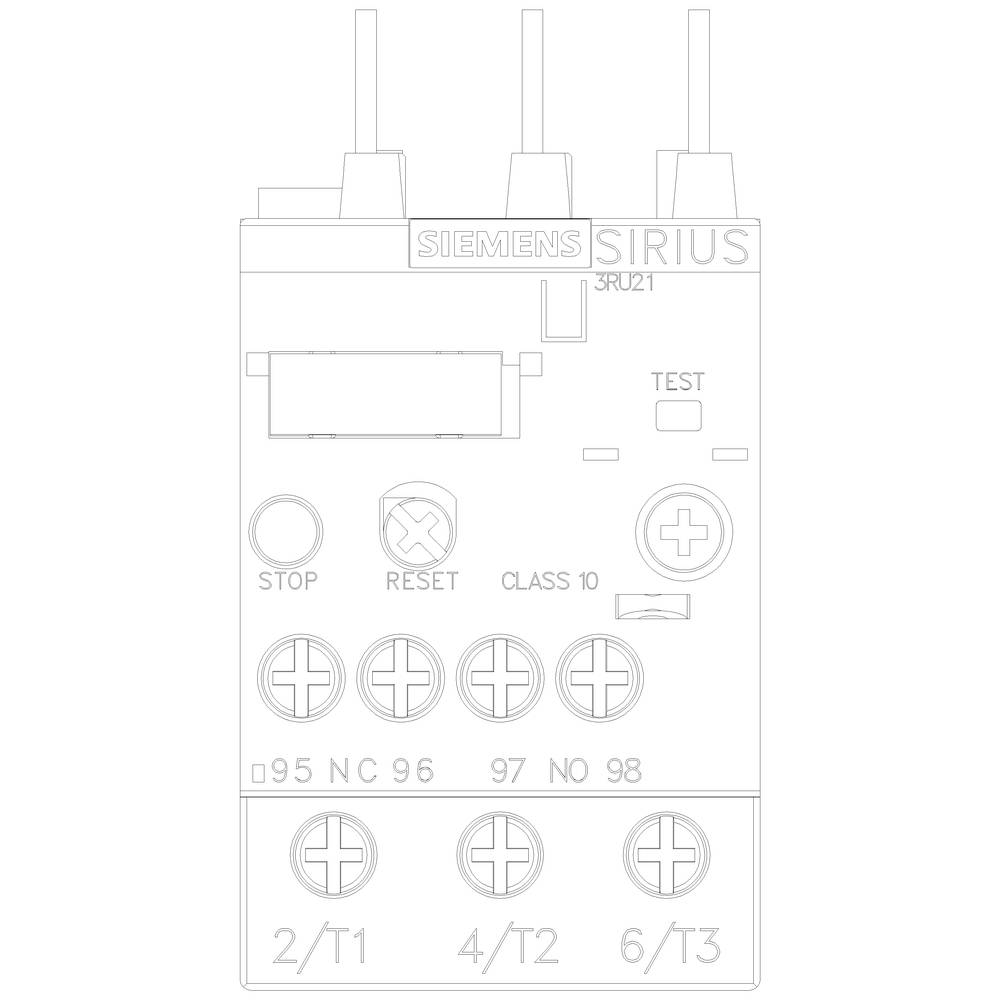

'Diagram of a Siemens SIRIUS 3RU21 device with connections, test and reset buttons, Class 10, and connection markings 95, 96, 97, 98.'

1/6

Image similar

Product type

O/L relay

Functions

Overload

Max. operating voltage

690 V AC

Contact type

1 maker

1 breaker

Switching voltage (max.)

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 99.99 / piece)

€ 99.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Size of the overload relay: S0
Mounting type: installing contactor
Power loss: 7.5 W
Operating frequency: 50/60 Hz
Isolation voltage: 690 V
Surge voltage resistance: 6000 V
Pins for main circuit: 3
Operating current: 40 A

Product type: O/L relay

Type: 3RU2126-4FB0

Functions: Overload

Operating voltage: 690 V AC

Max. operating voltage: 690 V AC

Operating voltage: 690 V AC (max)

Features: Automatic/manual switch

Contact type: 1 maker
1 breaker

Switching voltage (max.): 690 V AC

Connection: Screws

Min. temperature: -40 °C

Max. temperature: +70 °C

: IP20

Width: 45 mm

Height: 85 mm

Depth: 85 mm

Dim: (W x H x D) 45 x 85 x 85 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Type: S0

Amperage adjustment range (max.): 40 A

Amperage adjustment range (min.): 34 A

Weight: 0.1936 kg

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Switching voltage (max.)

Functions

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2126-4FB0 Overload

Item no:1431142

Dispatches on Thu 12 Nov

Conrad Electronic

This article

690 V AC

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-0GB0 Phase error, Overload

Item no:1430966

Dispatches on Thu 12 Nov

Conrad Electronic

690 V AC

Phase error

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-0HB0 Overload

Item no:1430991

Dispatches on Thu 12 Nov

Conrad Electronic

690 V AC

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-0JB0 Overload

Item no:1431066

Dispatches on Thu 12 Nov

Conrad Electronic

690 V AC

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1AB0 Overload, Phase error

Item no:1431152

Fast track dispatch on Fri 6 Nov

7 Piece(s)Conrad Electronic

690 V AC

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1BB0 Overload

Item no:1431153

Dispatches on Thu 12 Nov

Conrad Electronic

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1DB0 Overload

Item no:1431154

Fast track dispatch on Fri 6 Nov

4 Piece(s)Conrad Electronic

690 V AC

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1EB0 Overload

Item no:1431004

Dispatches on Thu 12 Nov

Conrad Electronic

690 V AC

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1GB0 Overload

Item no:1431177

Fast track dispatch on Fri 6 Nov

3 Piece(s)Conrad Electronic

690 V AC

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-1HB0 Overload

Item no:1431016

Fast track dispatch on Fri 6 Nov

1 Piece(s)Conrad Electronic

690 V AC

Overload

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Documents & Downloads

Datasheet

Datasheet 1431142 Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2126-4FB0 Overload

User & Safety Instructions

User & Safety Instructions 1431142 Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2126-4FB0 Overload

Description

Overload relay 34...40 A thermal for motor protection size S0, CLASS 10 contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual automatic RESET SIRIUS 3RU2 thermal overload relay for current-dependant protection of consumers with normal starting against impermissible high heating due to overload or phase failure.
This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous applications (ATEX or IEC Ex) are a matter of course.
Available with different adjustment ranges of the overload release. They are available with screw or spring-type terminals for quick, maintenance-free and vibration-proof connection, as well as for stand-alone installation.
The accessories fit all sizes S00 to S3.
Simple, efficient, always up-to-date - the SIRIUS modular system.
