Name: Siemens SSR 3RF21301AA42 30 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)
Brand: Siemens
SKU: 1430796
Availability: BackOrder

Electrical contactor with 'SIRIUS' label, grey, with multiple screw terminals and marking '24V DC'.

An open electrical cabinet with various electronic components and cables arranged across multiple levels.

Electrical circuit diagram shows two antiparallel-connected diodes with terminals 1L, 2T, A1+, A2-, within a rectangular frame.

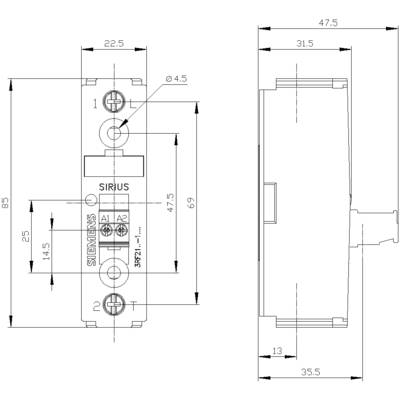

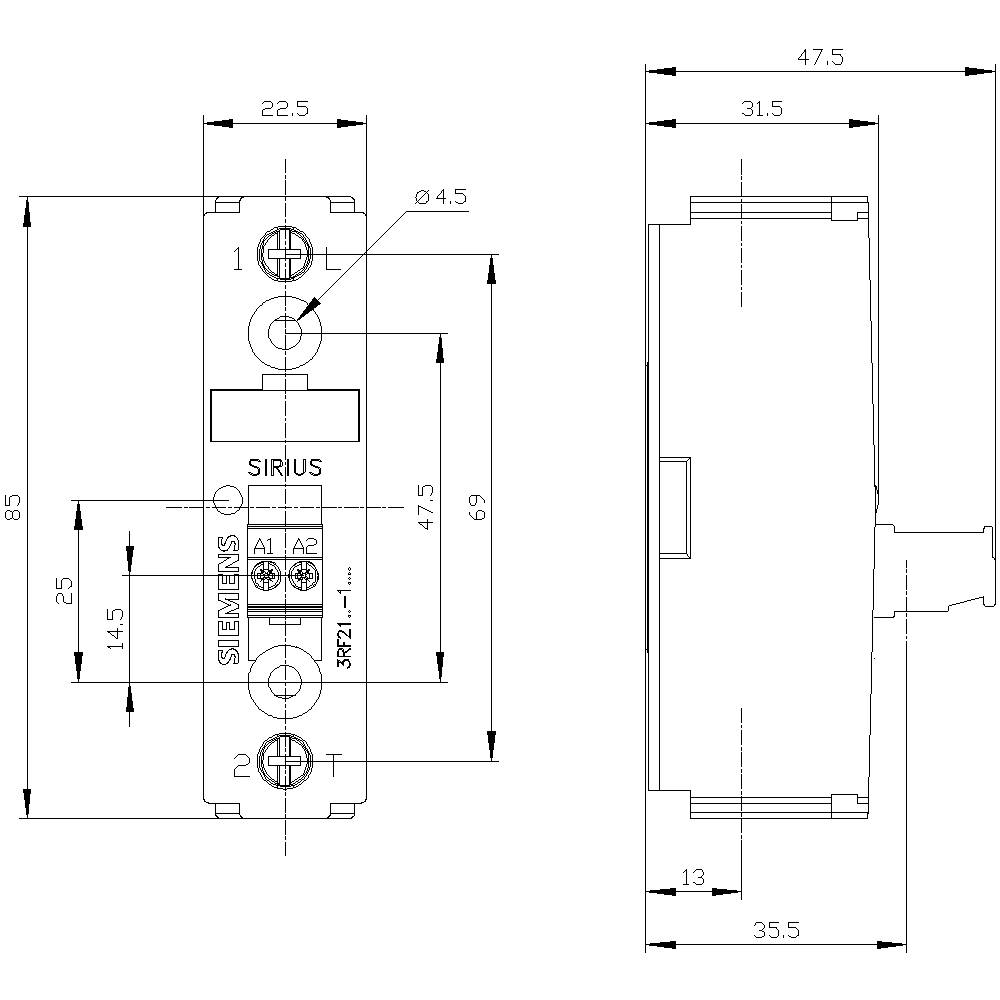

Technical drawing of a SIRIUS device with dimensions: width 22.5 mm, height 85 mm, depth 47.5 mm. Terminals A1 and A2 are marked.

1/4

Image similar

Packaging type

Piece

Product type

SSR

Control voltage (min.)

4 V DC

Control voltage (max.)

30 V DC

Switching voltage (max.)

230 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 20 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 49.99 / piece)

€ 49.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: screw fastening
Number of poles: 1
Isolation voltage: 600 V

Packaging type: Piece

Product type: SSR

Type: 3RF2130-1AA42

Switching type: Zero crossing

Connection: Screw terminal

Control voltage (min.): 4 V DC

Control voltage (max.): 30 V DC

Control voltage range: 4 - 30 V DC

Control current (max.): 15 mA

Surge current (max.): 300 A

Switching voltage (min.): 24 V AC

Switching voltage (max.): 230 V AC

Current load (max.): 30 A

Output voltage (min.): 24 V DC

Output voltage (max.): 230 V AC

Max. output current: 30 A

Contact type: 1 maker

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Width: 22.5 mm

Height: 85 mm

Depth: 48 mm

Weight: 68 g

RoHS-compliant: Yes

Permanent current (max.): 30 A

Content: 1 pc(s)

: 1

: TRUE

: 4-30 V

: 30 A

: DC

: 30 A

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Current load (max.)

Control voltage (max.)

Control voltage (min.)

Output voltage (max.)

Switching voltage (max.)

Siemens SSR 3RF21301AA42 30 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)

Item no:1430796

Dispatches on Fri 20 Nov

Conrad Electronic

This article

30 A

30 V DC

4 V DC

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 49.99^*

Siemens SSR 3RF21201AA02 20 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)

Item no:1430804

Fast track dispatch on Wed 4 Nov

12 Piece(s)Conrad Electronic

20 A

24 V DC

15 V DC

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 53.99^*

Siemens SSR 3RF21201AA04 20 A Switching voltage (max.): 460 V AC Zero crossing 1 pc(s)

Item no:1430791

Fast track dispatch on Wed 4 Nov

3 Piece(s)Conrad Electronic

20 A

24 V DC

15 V DC

460 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 51.99^*

Siemens SSR 3RF21201AA22 20 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)

Item no:1430805

Dispatches on Fri 20 Nov

Conrad Electronic

20 A

230 V AC

110 V AC

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 53.99^*

Siemens SSR 3RF21201AA24 20 A Switching voltage (max.): 460 V AC Zero crossing 1 pc(s)

Item no:1430795

Dispatches on Fri 20 Nov

Conrad Electronic

20 A

230 V AC

110 V AC

460 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

Siemens SSR 3RF21201AA42 20 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)

Item no:1430806

Fast track dispatch on Wed 4 Nov

2 Piece(s)Conrad Electronic

20 A

30 V DC

4 V DC

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 45.99^*

Siemens SSR 3RF21201AA45 20 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Item no:1430792

Dispatches on Fri 20 Nov

Conrad Electronic

20 A

30 V DC

4 V DC

600 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Siemens SSR 3RF21301AA04 30 A Switching voltage (max.): 460 V AC Zero crossing 1 pc(s)

Item no:1432277

Dispatches on Fri 20 Nov

Conrad Electronic

30 A

24 V DC

15 V DC

460 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Siemens SSR 3RF21301AA06 30 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)

Item no:1432278

Dispatches on Fri 20 Nov

Conrad Electronic

30 A

24 V DC

15 V DC

600 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 93.99^*

Siemens SSR 3RF21301AA24 30 A Switching voltage (max.): 460 V AC Zero crossing 1 pc(s)

Item no:1430788

Dispatches on Fri 20 Nov

Conrad Electronic

30 A

230 V AC

110 V AC

460 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 61.99^*

Documents & Downloads

Datasheet

Datasheet 1430796 Siemens SSR 3RF21301AA42 30 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1430796 Siemens SSR 3RF21301AA42 30 A Switching voltage (max.): 230 V AC Zero crossing 1 pc(s)

Description

Solid state relays, 1-phase 3RF2 width 22.5 mm, 30 A 24-230 V / DC 4-30 V screw terminals SIRIUS 3RF21 solid state relays for switching resistive/inductive loads, e.g. of radiators or valves in a filling plant.
The devices are wear-free and silent and are ideal for noise-sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded by simply clicking on the standardized 3RF29 function modules for a wide range of applications. The devices are approved worldwide (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths or as 3-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-loaded or ring cable lug connection.
In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.
Simple, efficient, always up-to-date - the SIRIUS modular system.

This text is machine translated.
