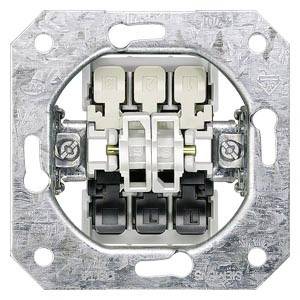

Siemens Switch product range Switch Delta 5TD2115 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 25.99 / piece)
€ 25.99
incl. VAT
14-day return policy included
Technical specifications
- Mounting type: Flush-mounted
- Switch type function
Switch
- Product type
Switch product range
- Type series
Delta
- Nominal voltage
250 V
- Nominal current
10 A
IP20
- Dim
(L x W) 70 mm x 70 mm
- Content
1 pc(s)
- Width
70 mm
- Length
70 mm
- Material
Steel
250 V
Flush mounted (plaster)
Basic element
Push button/touch control button
Other
Single push button
TRUE
Push-in clamp
None
Other
FALSE
10 A
FALSE
FALSE
Other
Metal
Mounting with claw and screw
2
FALSE
FALSE
Matt
IP20
0
0
1
70 mm
70 mm
32 mm
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1704270 Siemens Switch product range Switch Delta 5TD2115 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1704270 Siemens Switch product range Switch Delta 5TD2115 1 pc(s)
Description
Fixed-mounted non-automatic air circuit breaker 3-pole, Size 2 In=2500 A to 690 V, 50/60 Hz AC Icu=80 kA at 500 V with ready to close signaling switch Connection top horizontal bottom horizontal Motorized/manual operating mechanism with memory with electrical and mechanical activation Motor and electr. calling for 110...127 V AC, 110...125 V DC With 1st auxiliary release Undervoltage release "R", F3 110...127 V AC, 110...125 V DC instantaneous With 2nd auxiliary release Shunt release "F", F2 110...127 V AC, 110...125 V DC Switch position-depending auxiliary current switches 2 NC+2 NO
Hints
The rocker is snapped into the frame, thus forming a unit.
