Signal Construct LDC20124 LED indicator light Yellow 24 V DC, 24 V AC 20 mA 130 mcd

Black, round push button with a green centre in a raised dome shape, typically used for controlling or activating devices.

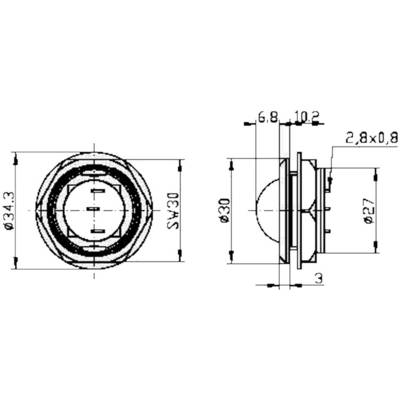

Technical drawing showing two views of a round component with dimensions. Left: Front view (diameter 34.3 mm). Right: Side view (diameter 30 mm, depth 10.2 mm).
1/2
Image similar
Product type
LED indicator light
Operating voltage
24 V DC
24 V AC
Operating current
20 mA
Recess diameter
27 mm
Light intensity I(V)
130 mcd
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Mon 9 Nov
39 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 4.29 / piece)
€ 4.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Signal Construct LDC20124 LED indicator light Yellow 24 V DC, 24 V AC 20 mA 130 mcd

Our service for you

  • Symbol image for Signal Construct LDC20124 LED indicator light Yellow 24 V DC, 24 V AC 20 mA 130 mcd

Technical specifications

Product type

LED indicator light

Type

LDC20124

Factory colour

Yellow

Operating voltage

24 V DC

24 V AC

Operating voltage

24, 24 - 28, 28 V DC, V AC

Min. operating voltage

24 V DC

24 V AC

Max. operating voltage

28 V DC

28 V AC

Operating current

20 mA

Recess diameter

27 mm

Case colour

Black

Mounting type

Screw

Light intensity I(V)

130 mcd

Connection

Type C CEE 7/16 plug 2.8 mm

RoHS-compliant

Yes

Type

Matted surface

Content

1 pc(s)

Operating current

20 mA

Operating voltage

24 - 28 V DC/AC

Documents & Downloads

Datasheet

Datasheet 150811 Signal Construct LDC20124 LED indicator light Yellow 24 V DC, 24 V AC 20 mA 130 mcd

User & Safety Instructions

User & Safety Instructions 150811 Signal Construct LDC20124 LED indicator light Yellow 24 V DC, 24 V AC 20 mA 130 mcd

Description

Best On/Off contrast by matte surface.

Scope of delivery

  • LED LD 20124
  • DMC 22 mounting clip.
