ElectromechanicsRelaysMonitoring RelaysEUM Monitoring Relays

Single mount Siemens 3RU2946-3AA01 1 pc(s)

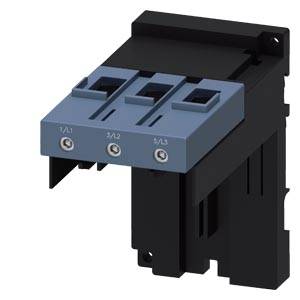

Electrical contactor with three blue connection terminals on a black module, used for controlling electrical circuits.
An open electrical cabinet reveals multiple rows of electrical controls, switches, and cables, neatly arranged.
'Diagram shows an electrical circuit with numbered components: 1. Carrier, 2. Overload trigger, 3. Accessories, 4-7. Switches and reset mechanisms.'

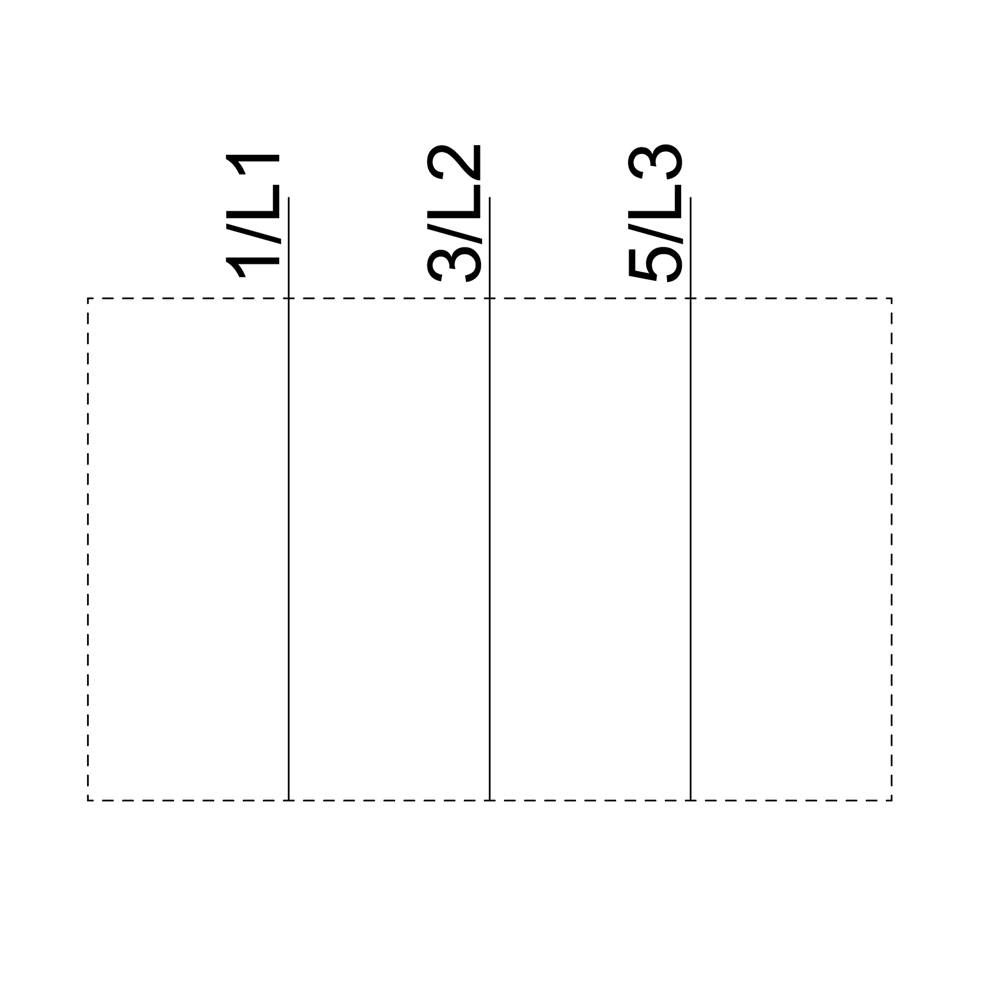

Diagram shows three vertical lines within a rectangle. Labelled as '1/L1', '3/L2', '5/L3'. Used to represent measurement points.

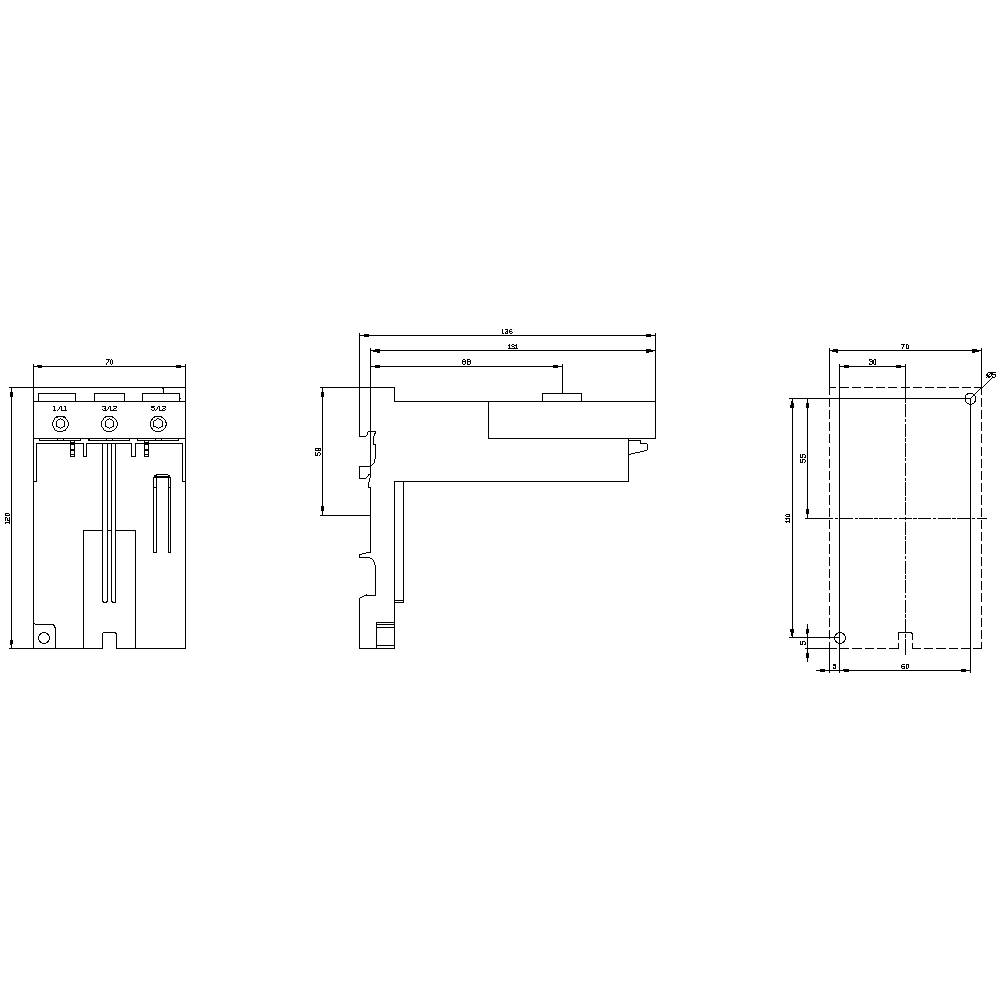

Technical drawing of a mechanical component showing front, side, and top views, each with precise dimensional measurements in millimetres.
1/5
Image similar
Product type
Single mount
Type
3RU2946-3AA01
Type
S3
Connection
Screws
Min. temperature
-20 °C
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 6 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 28.99 / piece)
€ 28.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Single mount

Type

3RU2946-3AA01

Type

S3

Connection

Screws

Min. temperature

-20 °C

Max. temperature

+70 °C

Width

70 mm

Height

120 mm

Depth

136 mm

Dim

(W x H x D) 70 x 120 x 136 mm

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1745447 Single mount Siemens 3RU2946-3AA01 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1745447 Single mount Siemens 3RU2946-3AA01 1 pc(s)

Description

22MM PLASTIC ROUND COMPLETE UNIT COMBINATION: ILLUMINATED PUSHBUTTON MOMENTARY CONTACT TYPE WITH FLAT BUTTON ILLUMINATED WITH INTEGRATED LED 24V AC/DC SCREW TERMINAL, 1NC WITH HOLDER RED !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor Preferred successor ty 3SU1102-0AB20-1CA0
