Sol Expert Konstantstrom-LED-Treiber 4-24V LED driver 4 - 24 V 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
Highlights & Details
Konstantstrom-LED-Treiber 4-24V
- 4 - 24 V
Technical specifications
- Adjustable current: Approx. 5 mA, 10 mA or 20 mA
- Product type
LED driver
- Operating current
5 mA
10 mA
20 mA
- Dim
(L x W x H) 12.5 x 9 x 2.75 mm
- Output voltage (max.)
24 V
- Output voltage (min.)
4 V
- Weight
0.37 g
- Width
9 mm
- Height
2.75 mm
- Length
12.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3451727 Sol Expert Konstantstrom-LED-Treiber 4-24V LED driver 4 - 24 V 1 pc(s)
Conformity certificate
Conformity certificate 3451727 Sol Expert Konstantstrom-LED-Treiber 4-24V LED driver 4 - 24 V 1 pc(s)
Description
Discover the first adjustable constant power source, which is perfectly suitable for limiting the current of your LEDs. And 4 V - 24 V, DC or AC voltage.

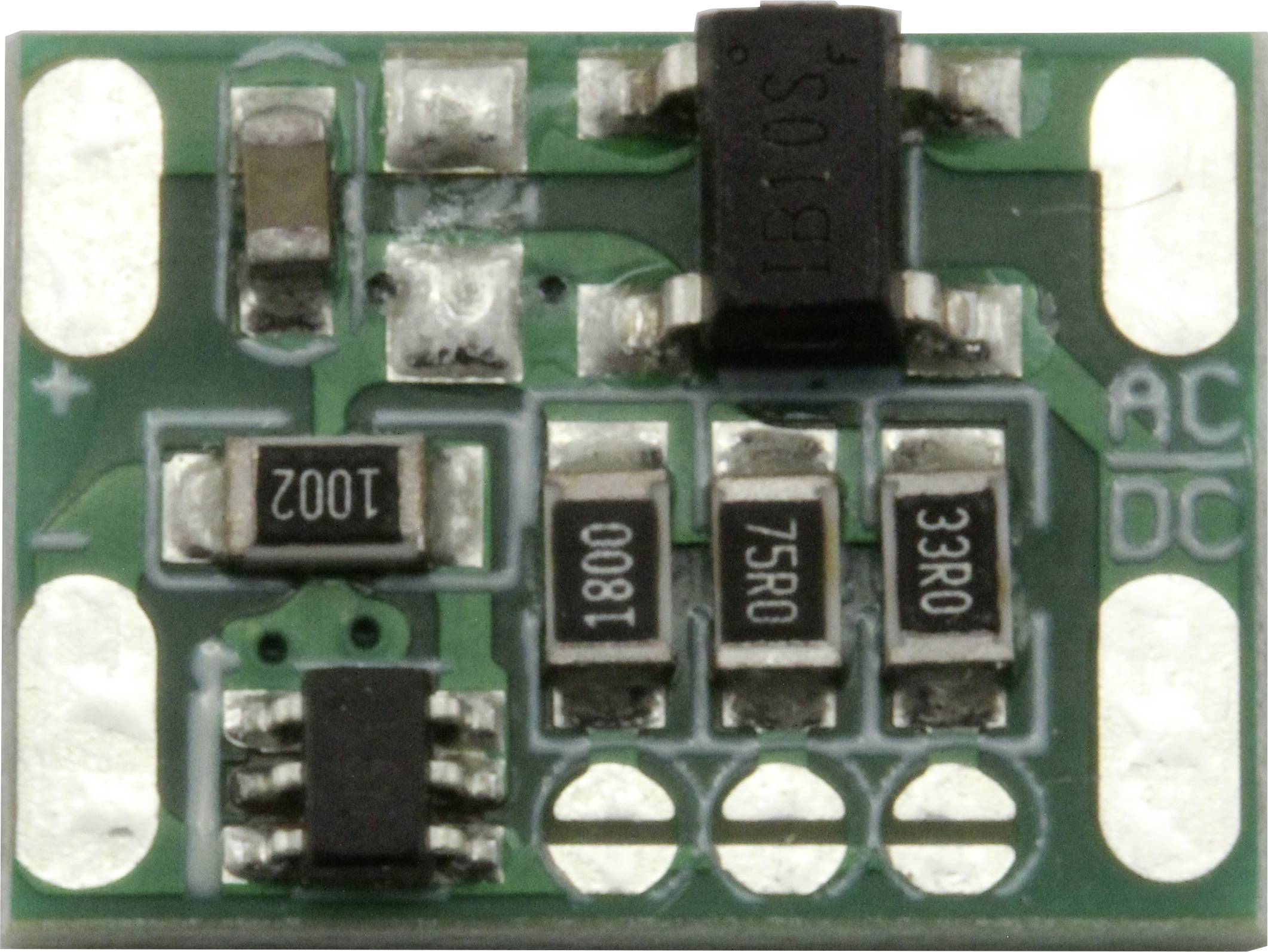

Bring your LED projects to the next level with the cleverer adjustable constant current source from SOL-EXPERT. This compact board fits effortlessly into the smallest projects thanks to its size and offers a flexible voltage range of 4 to 24 V, both DC and AC voltage. No matter whether you are working in the model railway construction, in the robotics or in the vehicle technology - with this constant power source you can ensure reliable protection of your LEDs, without the annoying calculation of pre-resistors! And for the first time with individually adjustable brightness in 3 different levels.

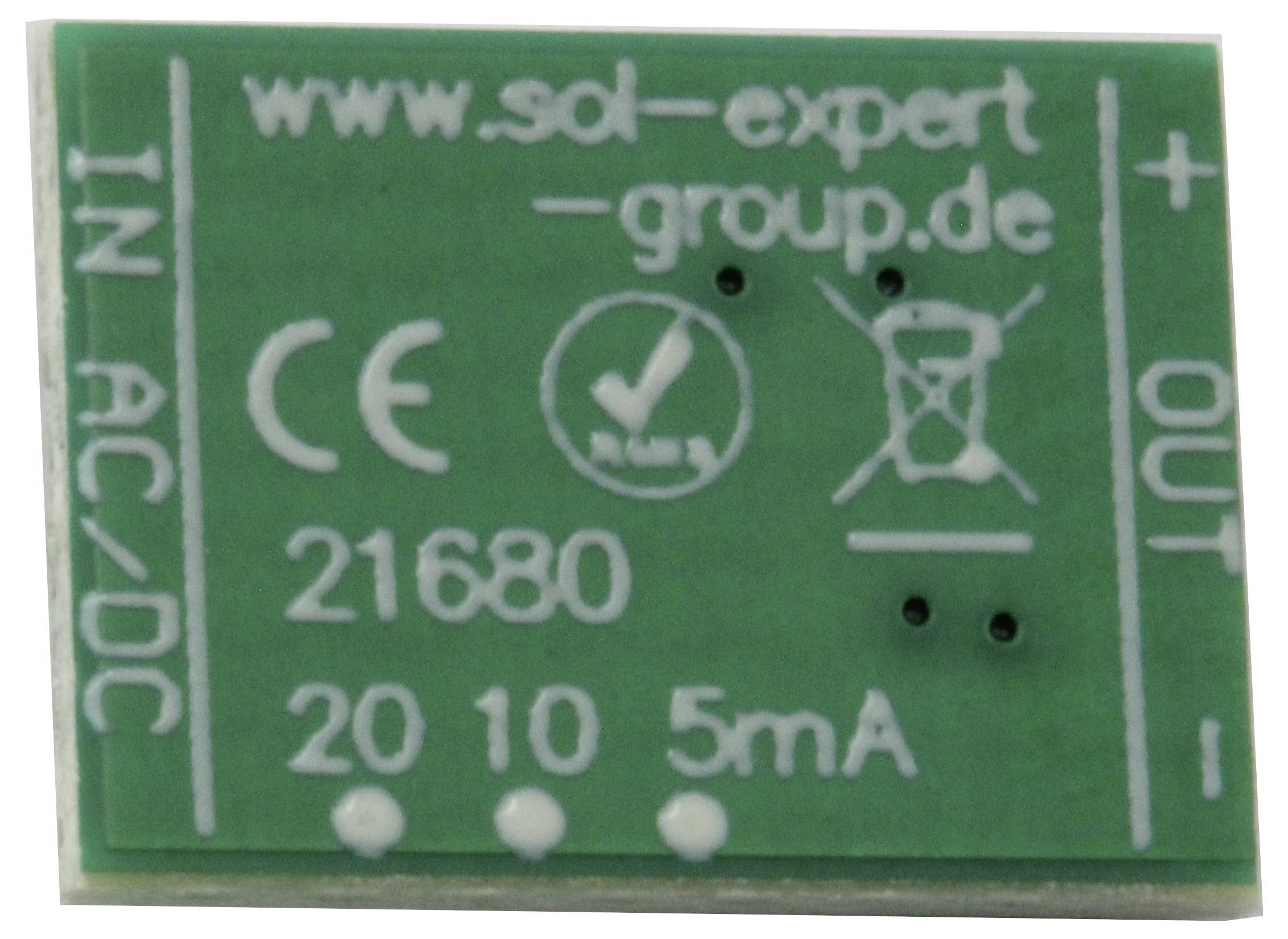

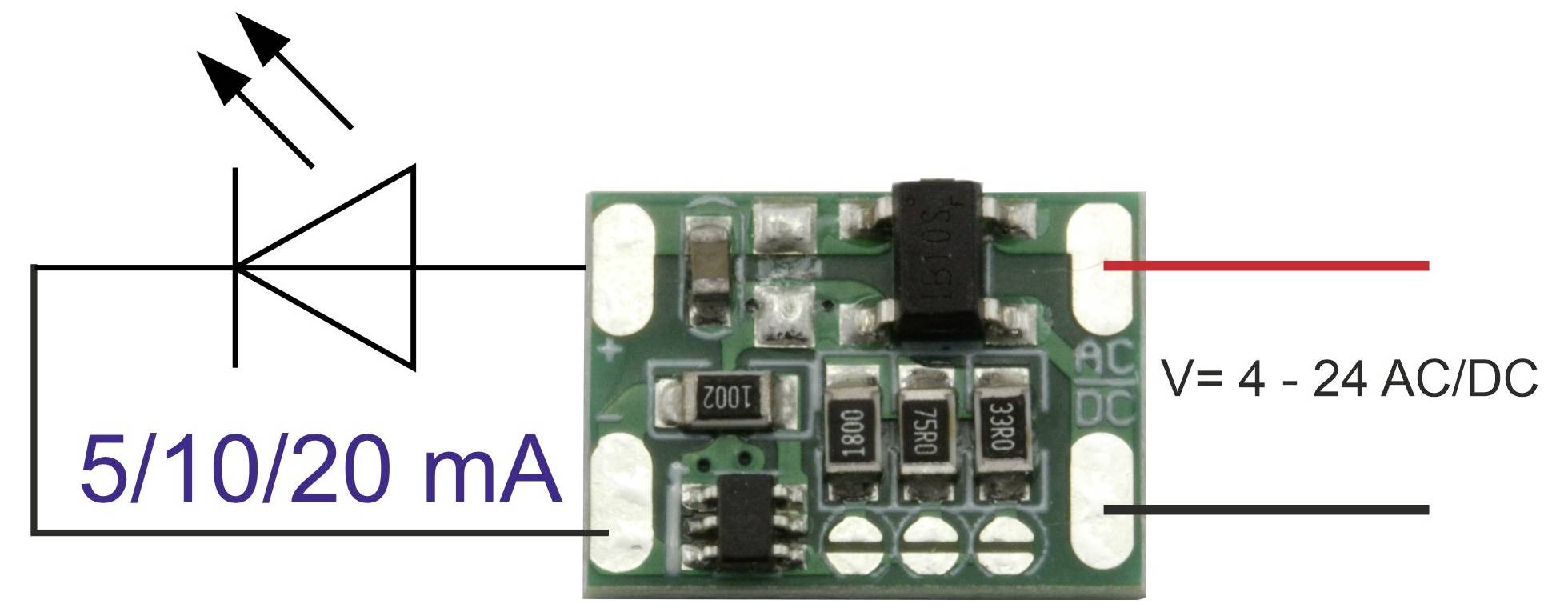

Adjust the brightness of your LEDs according to your desires! You can easily choose between the currents of 5 mA, 10 mA or 20 mA. You can activate the required current strength by simply connecting one of the three selection soldering pads using a soldering iron and a bit of solder – and this several times, in case you wish to change the setting later on.
Small but powerful!
With only 12.5 × 9 × 2.75 mm our constant power source is one of the smallest of its kind and can be used anywhere. Thanks to the pre-tinned connection pads, processing is child's play. There are unlimited applications: Use them in model installations to ensure that your LEDs are always stable.
Flicker-free operation thanks to buffer capacitor
LEDs may flicker when used in model railway construction. But don't worry! Our board has special soldering pads for a buffer capacitor (not included), which guarantees reliable, flicker-free operation. Like this you can enjoy perfect light in every situation!
Versatile use
Our constant power source supports all different LED types, regardless of color or shape. You can also connect several LEDs in series or parallel at any time.
This LED-driver provides in all cases a uniform and reliable power supply for your LEDs.
This text is machine translated.
Bring your LED projects to the next level with the cleverer adjustable constant current source from SOL-EXPERT. This compact board fits effortlessly into the smallest projects thanks to its size and offers a flexible voltage range of 4 to 24 V, both DC and AC voltage. No matter whether you are working in the model railway construction, in the robotics or in the vehicle technology - with this constant power source you can ensure reliable protection of your LEDs, without the annoying calculation of pre-resistors! And for the first time with individually adjustable brightness in 3 different levels.
Adjust the brightness of your LEDs according to your desires! You can easily choose between the currents of 5 mA, 10 mA or 20 mA. You can activate the required current strength by simply connecting one of the three selection soldering pads using a soldering iron and a bit of solder – and this several times, in case you wish to change the setting later on.
Small but powerful!
With only 12.5 × 9 × 2.75 mm our constant power source is one of the smallest of its kind and can be used anywhere. Thanks to the pre-tinned connection pads, processing is child's play. There are unlimited applications: Use them in model installations to ensure that your LEDs are always stable.
Flicker-free operation thanks to buffer capacitor
LEDs may flicker when used in model railway construction. But don't worry! Our board has special soldering pads for a buffer capacitor (not included), which guarantees reliable, flicker-free operation. Like this you can enjoy perfect light in every situation!
Versatile use
Our constant power source supports all different LED types, regardless of color or shape. You can also connect several LEDs in series or parallel at any time.
This LED-driver provides in all cases a uniform and reliable power supply for your LEDs.
This text is machine translated.
Scope of delivery
- 1x LED driver
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
