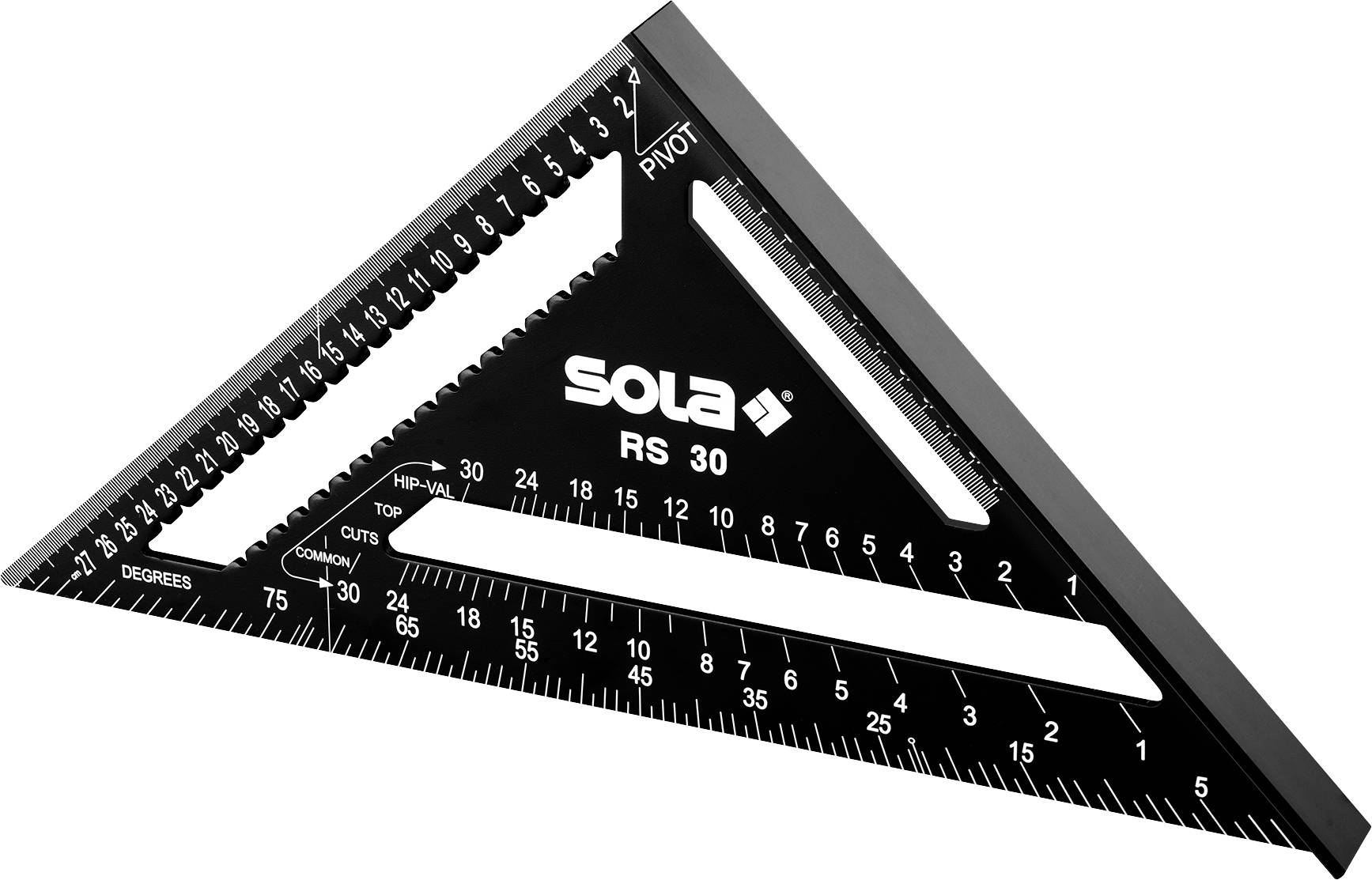

Sola RS 30 56160201 Rafter square 305 x 305 mm 90 °

The multi-functional angle for precise marking and measuring

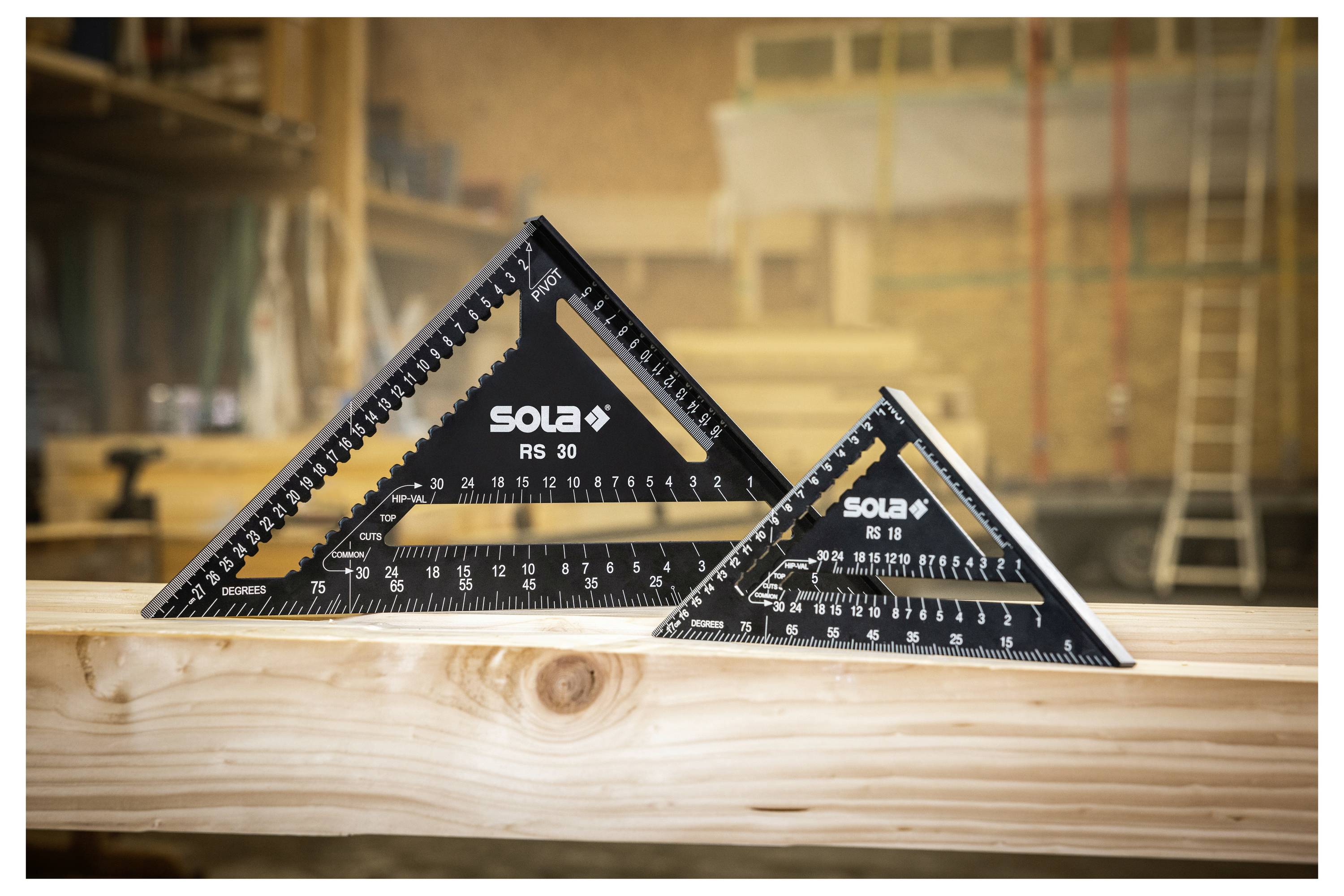

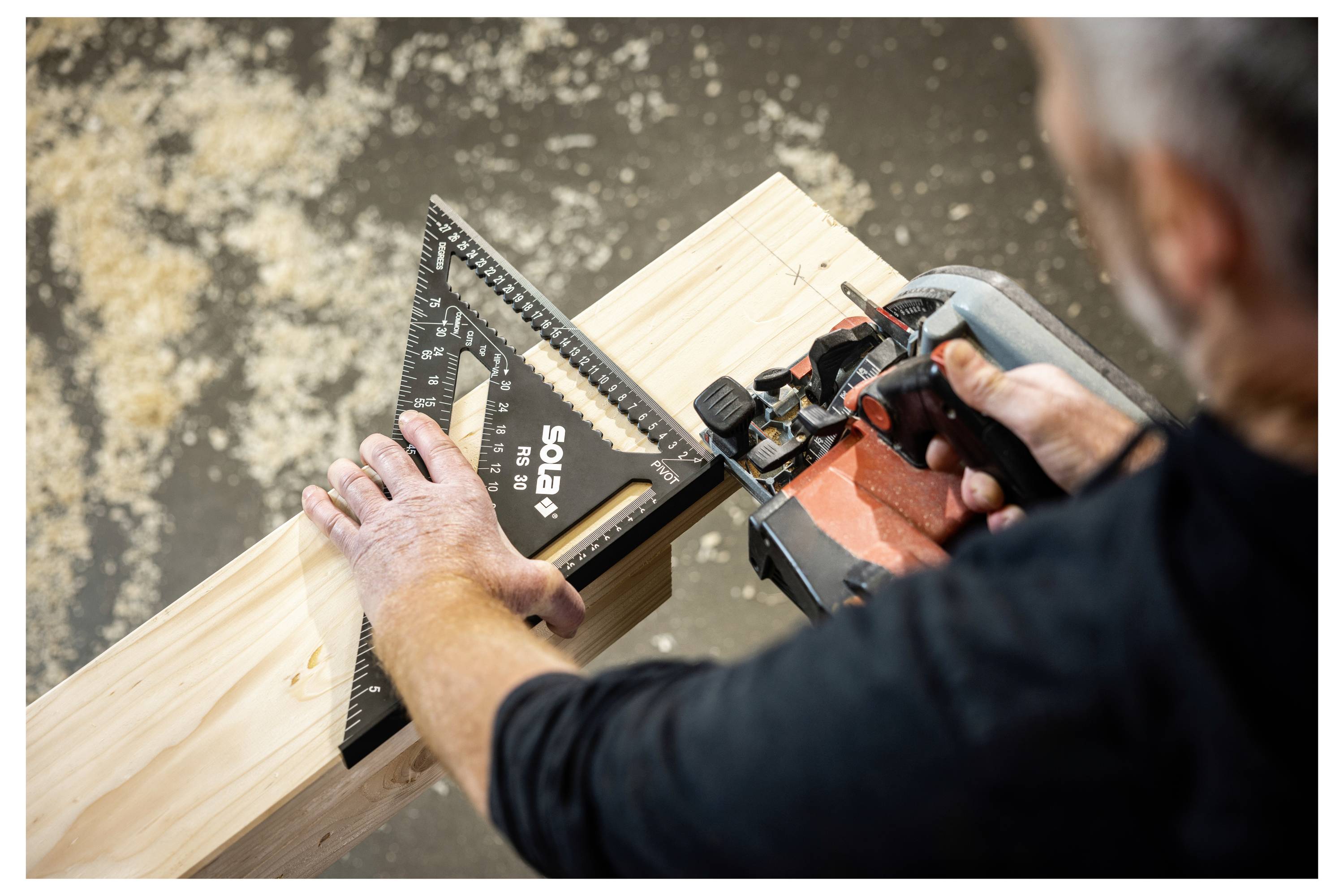

With the RS 18 and RS 30, Sola has expanded the angle range by two new saver angles with a leg length of 18 cm and 30 cm. Both rafter angles have the shape of a right-angled triangle with a stop at a catheter and combine the functions of a ruler, stop angle, miter angle, angle gauge as well as rafter knife. Moreover, they can be used as a marking tool and thanks to a robust edge as a saw guide. The angles are light, but still very robust and durable, made from aluminum.

Multi-talent for markings
The large number of cut-outs and metric scales in mm and cm placed on both sides make the Sola saver angle a multi-functional tool that Ideal is suitable for marking lines and angles. With the offset scale below the stop, lines can be drawn perpendicular to the stop. If you want to mark or tear parallel lines with a pin, use the marking aid with notches at a distance of 0.5 cm.

0°to 90° angle gauge
If the rafter angle is attached to the rafter or workpiece with the stop, a 45° and 90° angle can be marked or checked quickly and easily. With the degree scale at the hypotenuse, any angle measurements can be made between 0° to 90°. The rafter angle is rotated around the pivot point (Pivot Point) to the desired angle on the degree scale.

Quickly marking lifter cuts
The different scales and recesses of the saver angle are special
Predestined for working with the material wood – be it in rooms, carpenters or carpenters. Particularly in the carpentry shop for roof structures and rafters, the use of a rafter angle has advantages. Parallel to the degree scale there is a recess with two special scales for the coating of normal, burrs and throat rafters. In addition, the rafter angle from Sola offers a 90°-marking aid for grease cuts.

Robust and durable
The saver angles from Sola are made from light aluminum and score through
Special robustness and durability. The scalings on both sides are lasered, do not dazzle and have an increased contrast, in order to be able to read the results quickly and comfortably. In addition to the RS 18 and RS 30 in metric design, Sola also offers saver angles in the imperial sizes of 7 inch (RSI 7) and 12 inch (RSI 12).

This text is machine translated.
