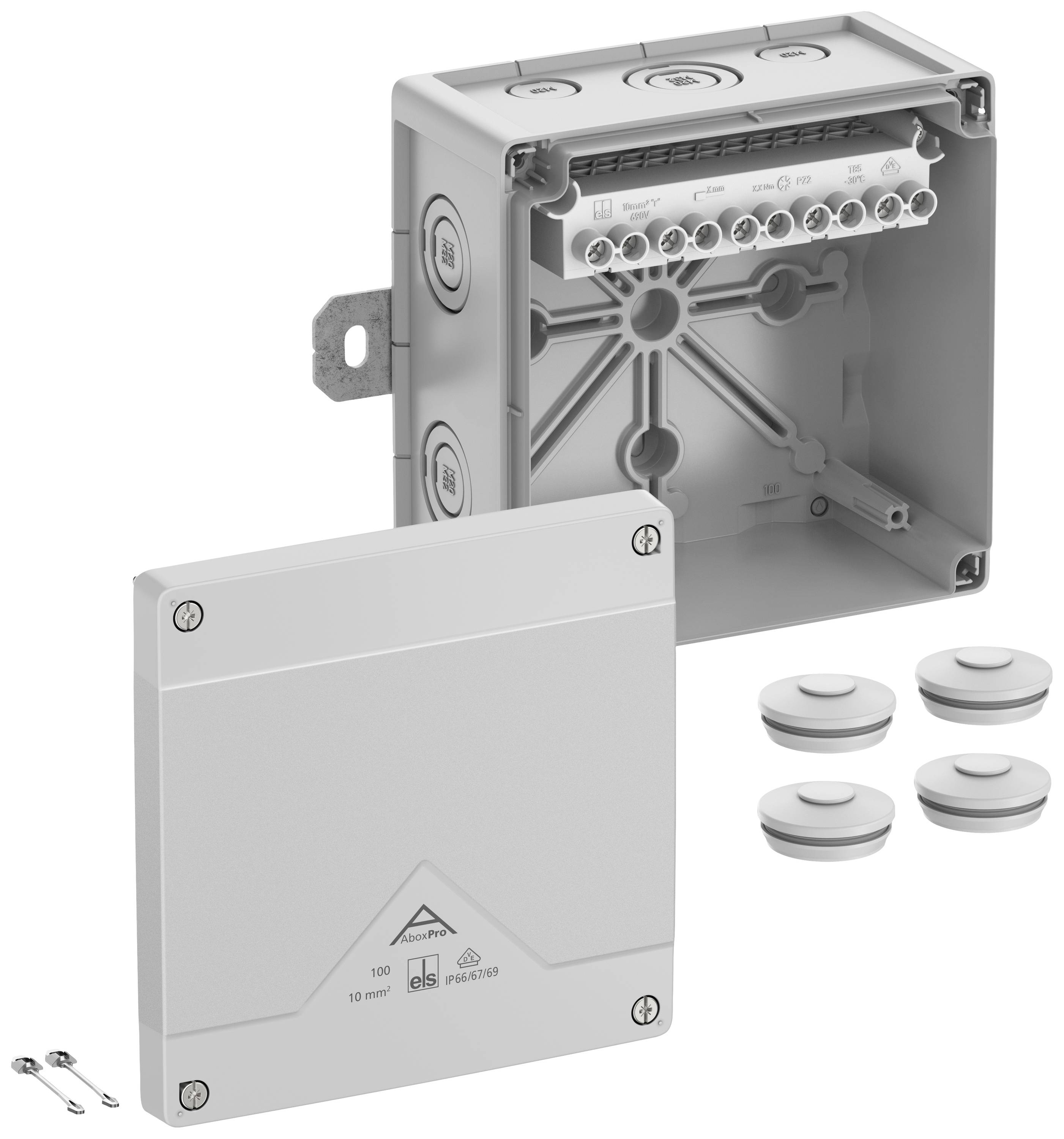

Spelsberg 41042101 Junction box (L x W x H) 152 x 152 x 85 mm Grey IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.15
€ 28.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP66
IP67
IP69
- Dim
(L x W x H) 152 x 152 x 85 mm
- Content
1 pc(s)
- Width
152 mm
- Height
85 mm
- Length
152 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3062304 Spelsberg 41042101 Junction box (L x W x H) 152 x 152 x 85 mm Grey IP66, IP67, IP69 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3062304 Spelsberg 41042101 Junction box (L x W x H) 152 x 152 x 85 mm Grey IP66, IP67, IP69 1 pc(s)
Description
Junction box with IP66/IP67/IP69 protection rating, 10 mm² nominal diameter, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22), DLG (ammonia resistance), DNV (class: Ships and offshore installations), impact membranes, M20/M25/M32, (2 back, 10 side), external mounting points, for industrial installations and unprotected outdoor areas, gray, Ui = 690 V AC, In = 57 A, with elevated screw terminal, 5-pole - 10², clamping cross-sections per pole: 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm², 4 x 10 mm² rigid/flexible copper with wire-end sleeve.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Accessories attached:
- 4 double diaphragm supports IP66 M32 sealing range 13 - 21 mm
- Cover retainer
