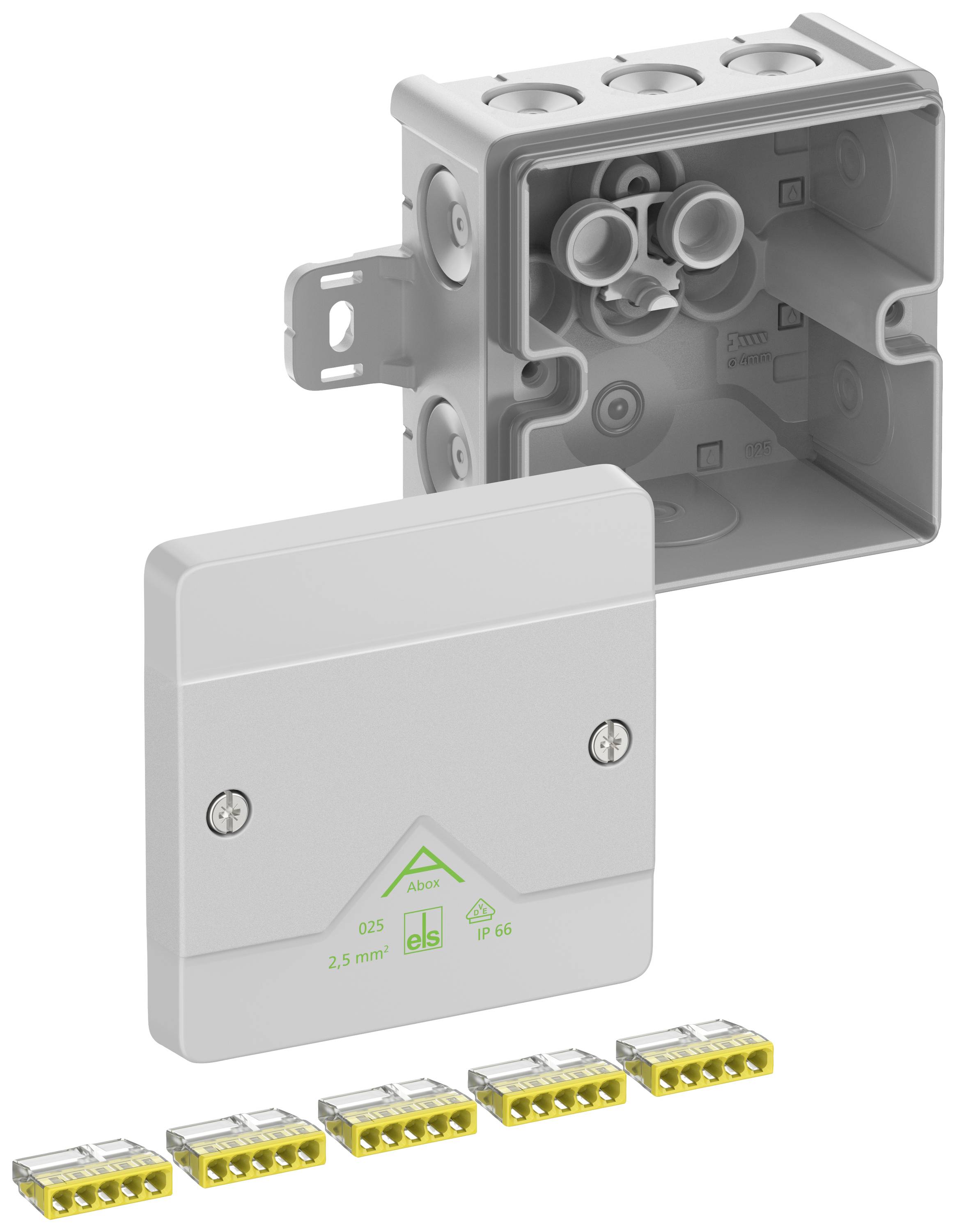

Spelsberg 80242101 Junction box (L x W x H) 87 x 87 x 52 mm Grey IP66 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
3
5% = € 0.34
€ 5.95
5
7% = € 0.47
€ 5.82
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP66
- Dim
(L x W x H) 87 x 87 x 52 mm
- Content
1 pc(s)
- Width
87 mm
- Height
52 mm
- Length
87 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3062235 Spelsberg 80242101 Junction box (L x W x H) 87 x 87 x 52 mm Grey IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3062235 Spelsberg 80242101 Junction box (L x W x H) 87 x 87 x 52 mm Grey IP66 1 pc(s)
Description
Junction box, with IP66 protection, nominal cross-section 2.5 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22), DLG (ammonia resistance), self-sealing, soft introduction membranes, M16/M20, Sealing area 4 - 16 mm, (1 at the back, 8 on the sides), external mounting positions, for standard installations indoors and in protected outdoor areas, gray, Ui=450 V AC, In=24 A, with 5 screwless 5-conductor terminals WAGO 2273-205, max. Nominal cross-section according to DIN EN 60998: 2.5 mm², clamping cross-sections per pole: 5 x 0.5 - 2.5 mm² rigid Cu/Al (please refer to the installation instructions!).
