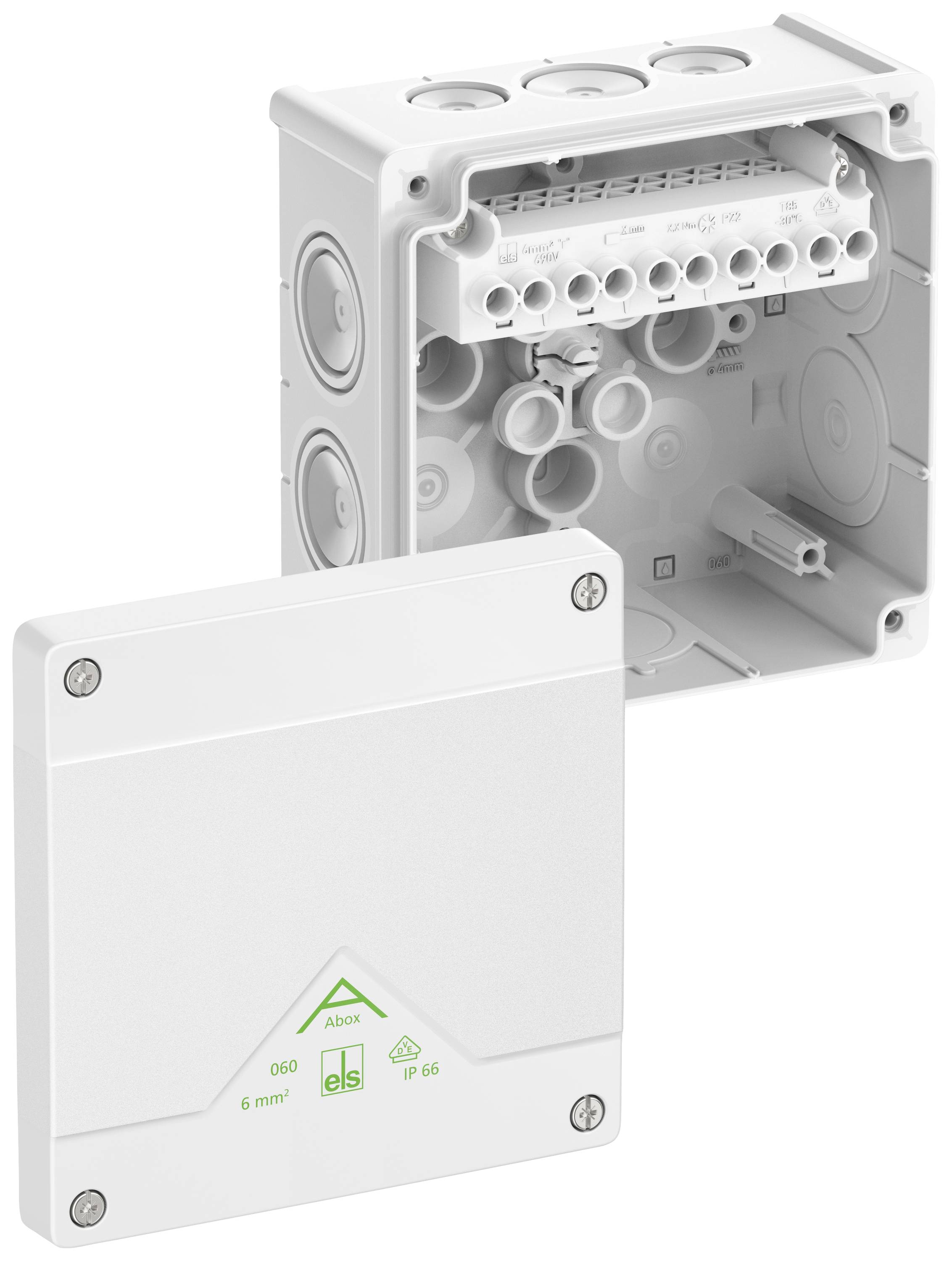

Spelsberg 80612001 Junction box (L x W x H) 127 x 127 x 70 mm White IP66 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
4% = € 0.67
€ 14.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€
Technical specifications
- Product type
Junction box
- Factory colour
White
IP66
- Dim
(L x W x H) 127 x 127 x 70 mm
- Content
1 pc(s)
- Width
127 mm
- Height
70 mm
- Length
127 mm
Documents & Downloads
Datasheet
Datasheet 3062258 Spelsberg 80612001 Junction box (L x W x H) 127 x 127 x 70 mm White IP66 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3062258 Spelsberg 80612001 Junction box (L x W x H) 127 x 127 x 70 mm White IP66 1 pc(s)
Description
Junction box, with IP66 protection, nominal diameter 6 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22), DLG (ammonia resistance), self-sealing, soft introduction membranes, M20/M25/M32, Sealing area 4 - 28 mm, (2 at the back, 8 on the sides), interior fitting, for standard indoor and protected outdoor installations, white, Ui = 690 V AC, In = 41 A, with elevated screw clamp, 5-pole - 6 mm², clamping cross-sections per pole: 4 x 1.5 mm², 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm² rigid/flexible copper with wire-end sleeve.
This text is machine translated.
This text is machine translated.
