Spelsberg CEE power distributor STV 1224-K-LAN 73142421 400 V 32 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 655.00 / piece)
€ 655.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
2
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 32 A)
- No. of PG sockets
4
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
IP44
- Factory colour
Grey
- Dim
(W x H x D) 250 x 400 x 122 mm
- Width
250 mm
- Height
400 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
- Content
1 pc(s)
- Depth
122 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2827447 Spelsberg CEE power distributor STV 1224-K-LAN 73142421 400 V 32 A
User & Safety Instructions
User & Safety Instructions 2827447 Spelsberg CEE power distributor STV 1224-K-LAN 73142421 400 V 32 A
Description
The socket combination with protection class IP44 is ready to connect according to EN 61439-3 and has a high mechanical strength, temperature insensitive and has combination cable entries.
This text is machine translated.
This text is machine translated.
Features

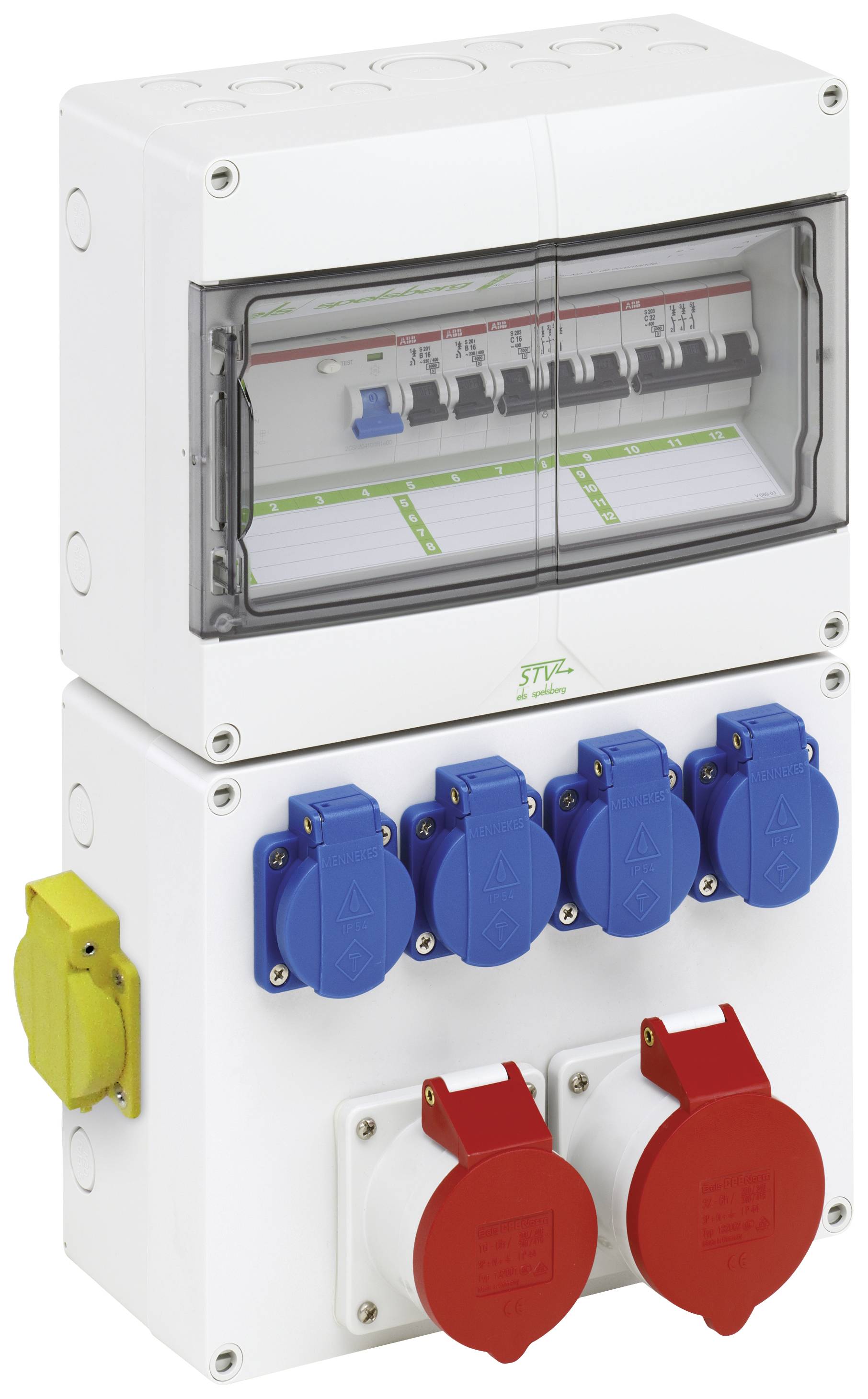

- Top: Knockout 2 x M20, 2 x M20/25, 3 x M32/40 Footprint 2 x M20, 2 x M20/25, 3 x M32/40 Left: Pre-stamped 4 x M20 Right: Pre-stamped 4 x M20 Back: Pre-punched 4 x M20/25, equipped with:1 x RCCB, 40/0.03A, 4-pin, type A 2 x circuit breaker B16A, 1-pole 1 x circuit breaker C16A, 3-pole 1 x circuit breaker C32A, 3-pin 4 x SCHUKO® socket outlets (front side), 230V 1 x CEE-socket (front side), 16A, 400V 1 x CEE-Socket (front side), 32A, 400V 1 x data flush-mounted socket, 2 x RJ45 cat.6 (on side) Accessories attached: Mounting socket 2x M25, 2x M32closing plugCover and labeling strips
