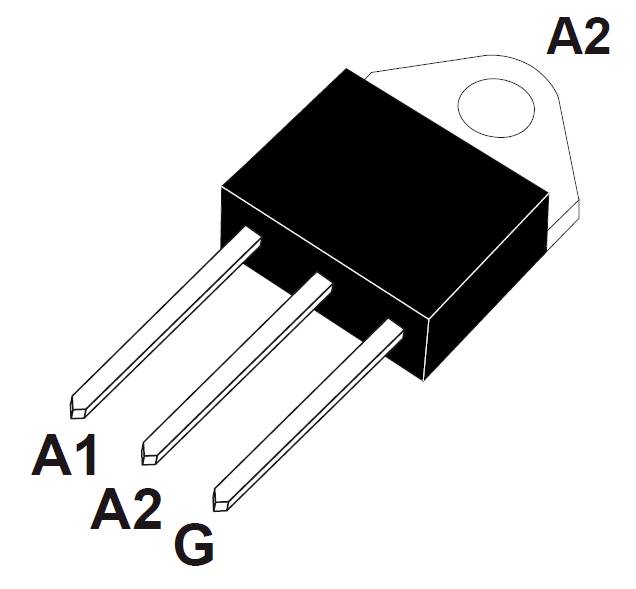

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
STMicroelectronics BTA26-600B Thyristor (SCR) - TRIAC TOP 3 25 A 600 V
EAN:
Part number:
Item no:
Product type
Thyristor (SCR) - TRIAC
Enclosure
TOP 3
U(DRM)
600 V
I(T)(RMS)
25 A
I(H)
80 mA
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
14-day return policy included
Technical specifications
- Type
BTA26-600B
- Product type
Thyristor (SCR) - TRIAC
- Enclosure
TOP 3
- Manufacturer
STMicroelectronics
- Manuf. code
STM
- U(DRM)
600 V
- Gate trigger voltage U(GT)
1.3 V
- Gate trigger current I(GT)
50 mA
- I(T)(RMS)
25 A
- I(H)
80 mA
- I(TSM 50 Hz)
250 A
- I(TSM 60 Hz)
260 A
- Forward current slew rate di(T)/dt
50 A/µs
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+125 °C
- Mounting type
Through-hole
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 151755 STMicroelectronics BTA26-600B Thyristor (SCR) - TRIAC TOP 3 25 A 600 V
User & Safety Instructions
User & Safety Instructions 151755 STMicroelectronics BTA26-600B Thyristor (SCR) - TRIAC TOP 3 25 A 600 V
Description
Symistor.
