Name: Sygonix SY-5972858 LED street light EEC: C (A - G) SMD LED Built-in LED 30 W Grey
Brand: Sygonix
SKU: 2986429
Availability: InStock

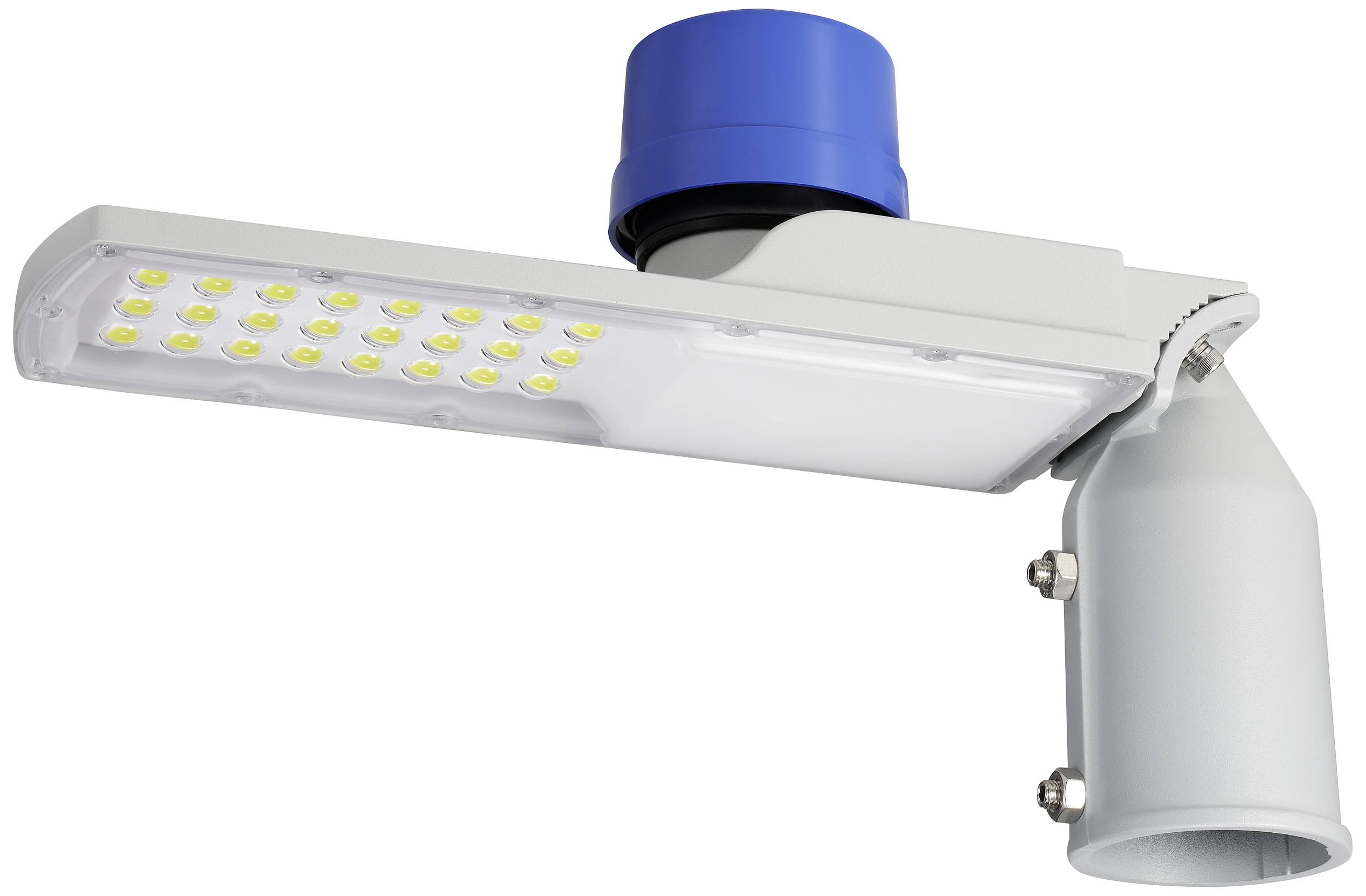

A modern LED street lamp with a blue sensor on top and multiple yellow diodes, mounted on a white arm for outdoor lighting.

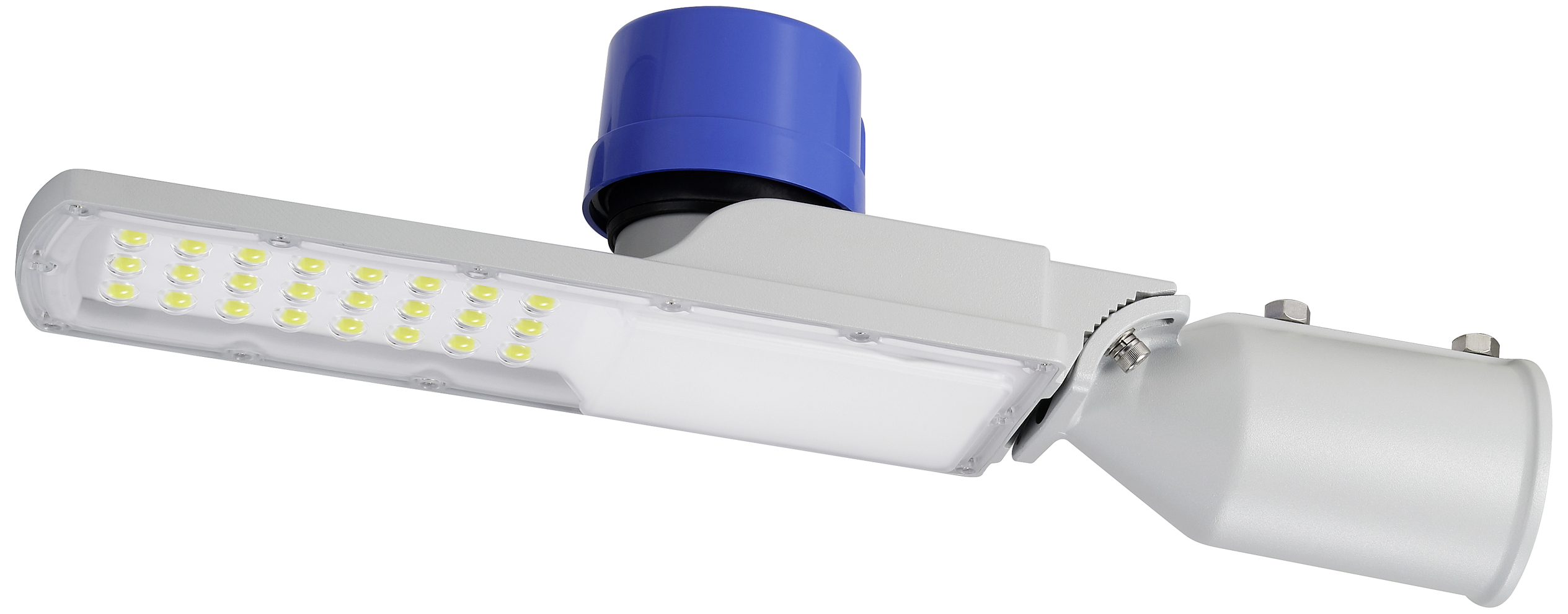

'Street lamp with LED lights and blue sensor on white background. Modern outdoor lighting solution.'

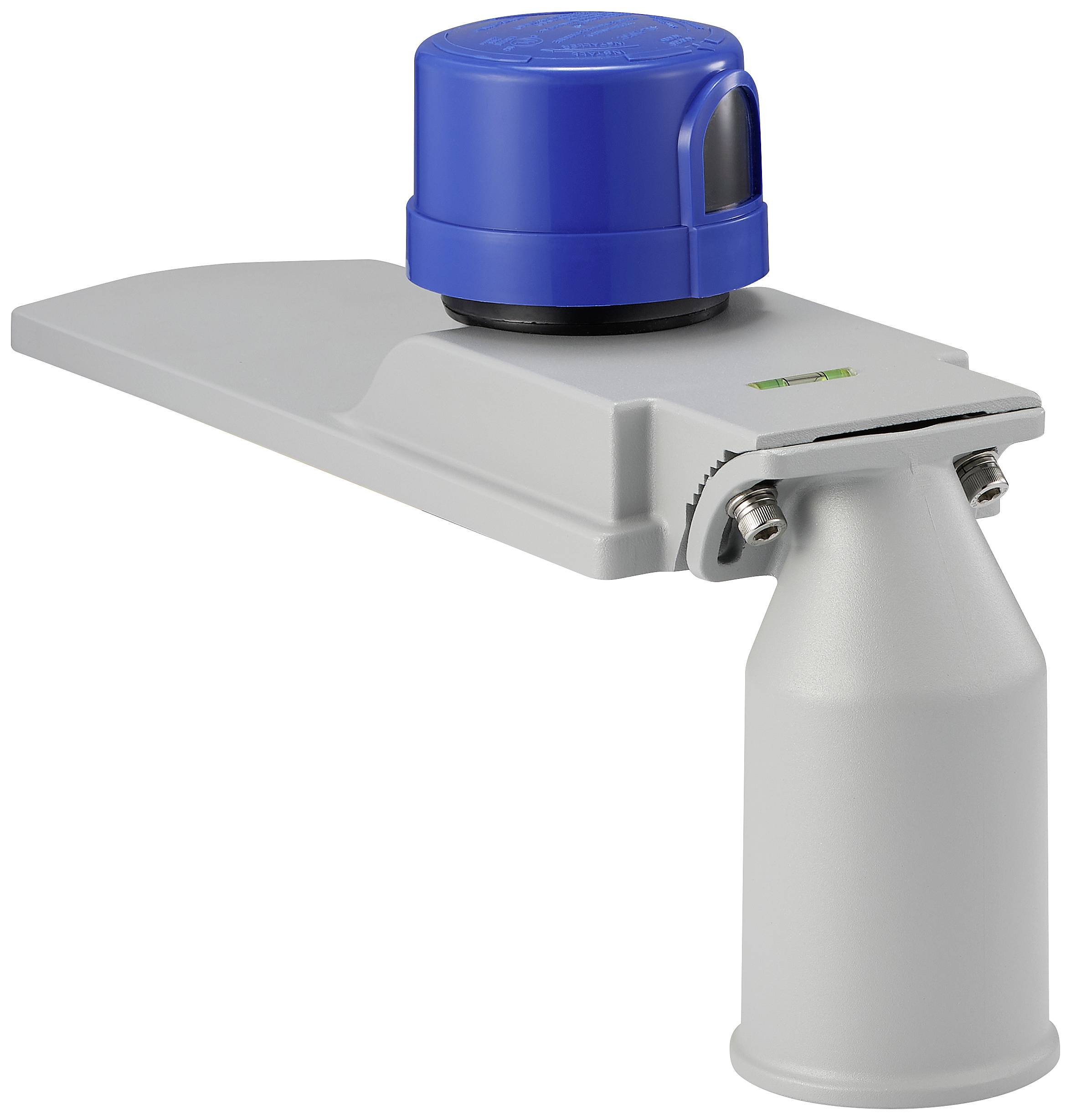

A grey, industrial sensor or measuring device with a blue upper section, potentially for liquid or solid substance monitoring.

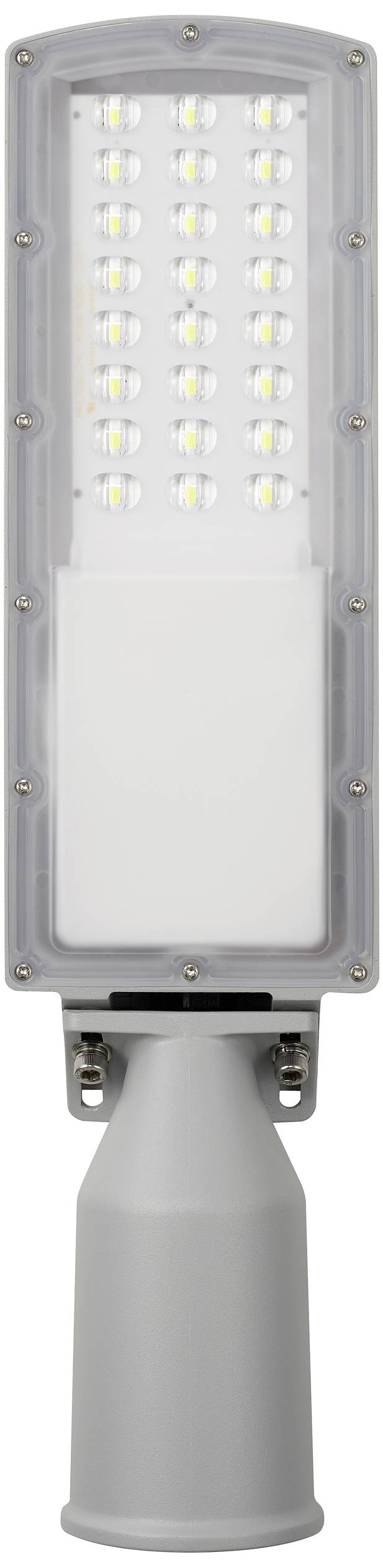

Grey LED street lamp with a rectangular light field; 28 yellow diodes arranged in four columns.

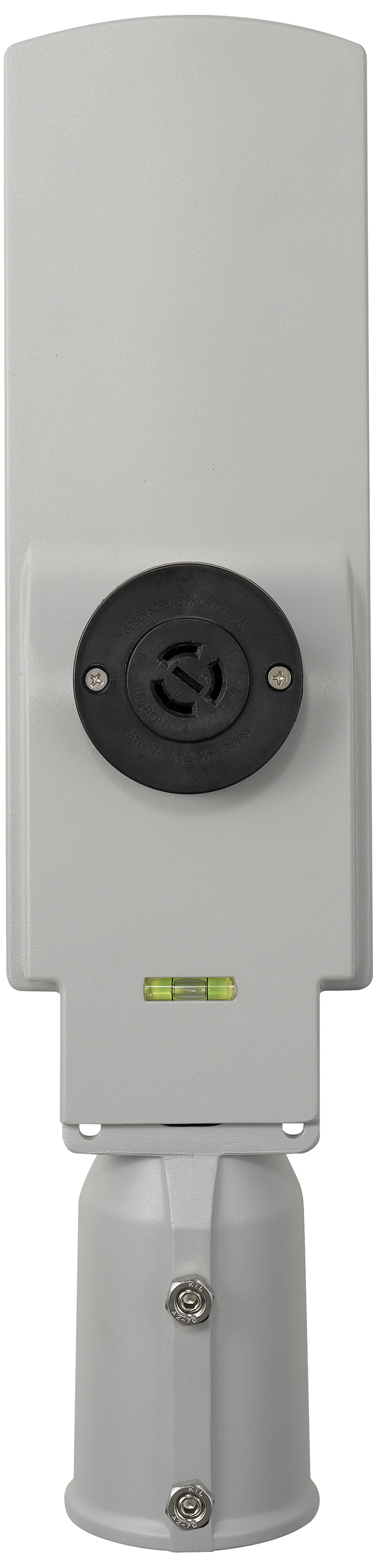

A grey antenna device with a round black mounting and integrated spirit level is seen from the front.

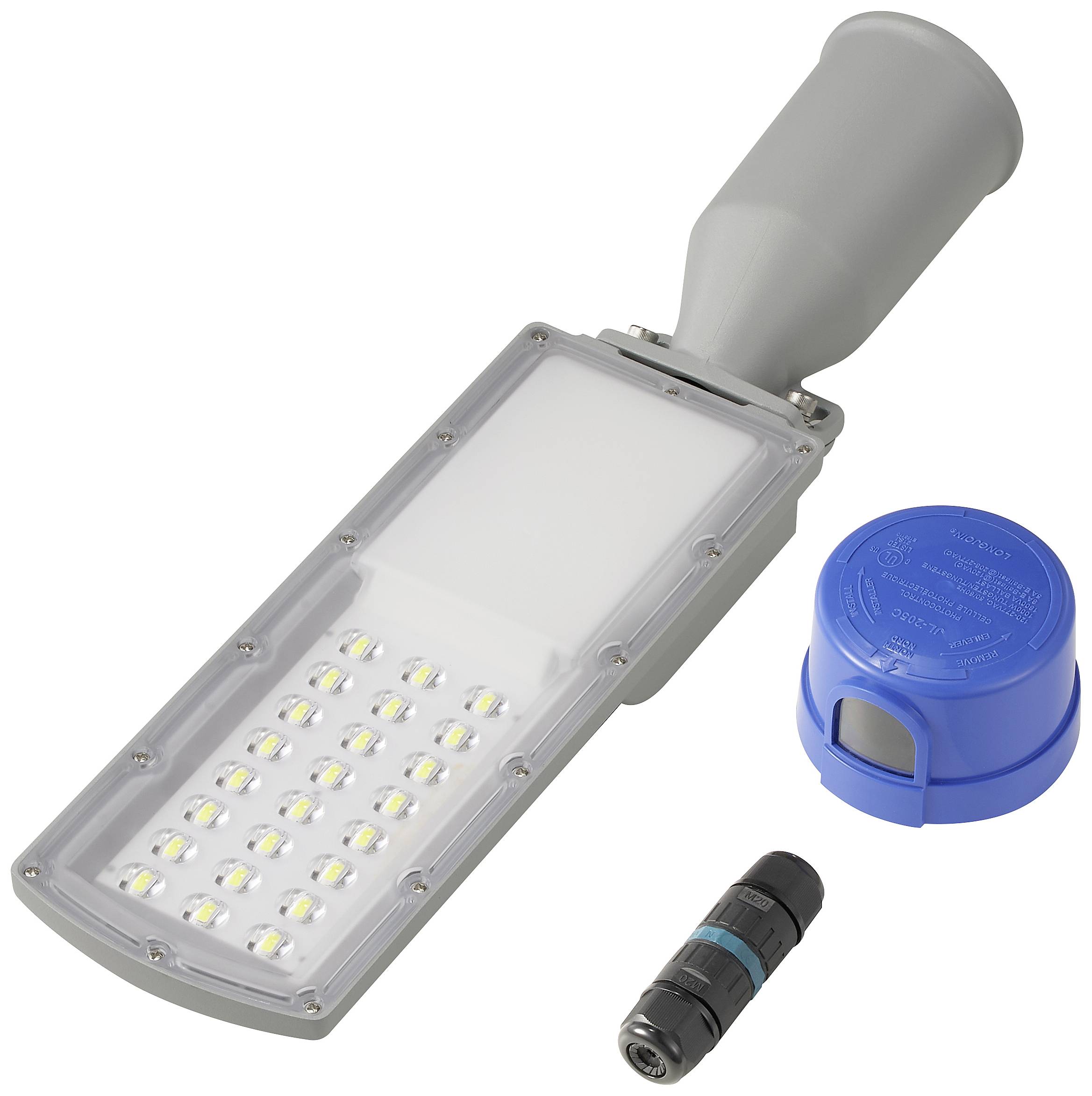

Electronic LED street lighting head with 30 integrated lights, a sensor attachment and a black electrical plug.

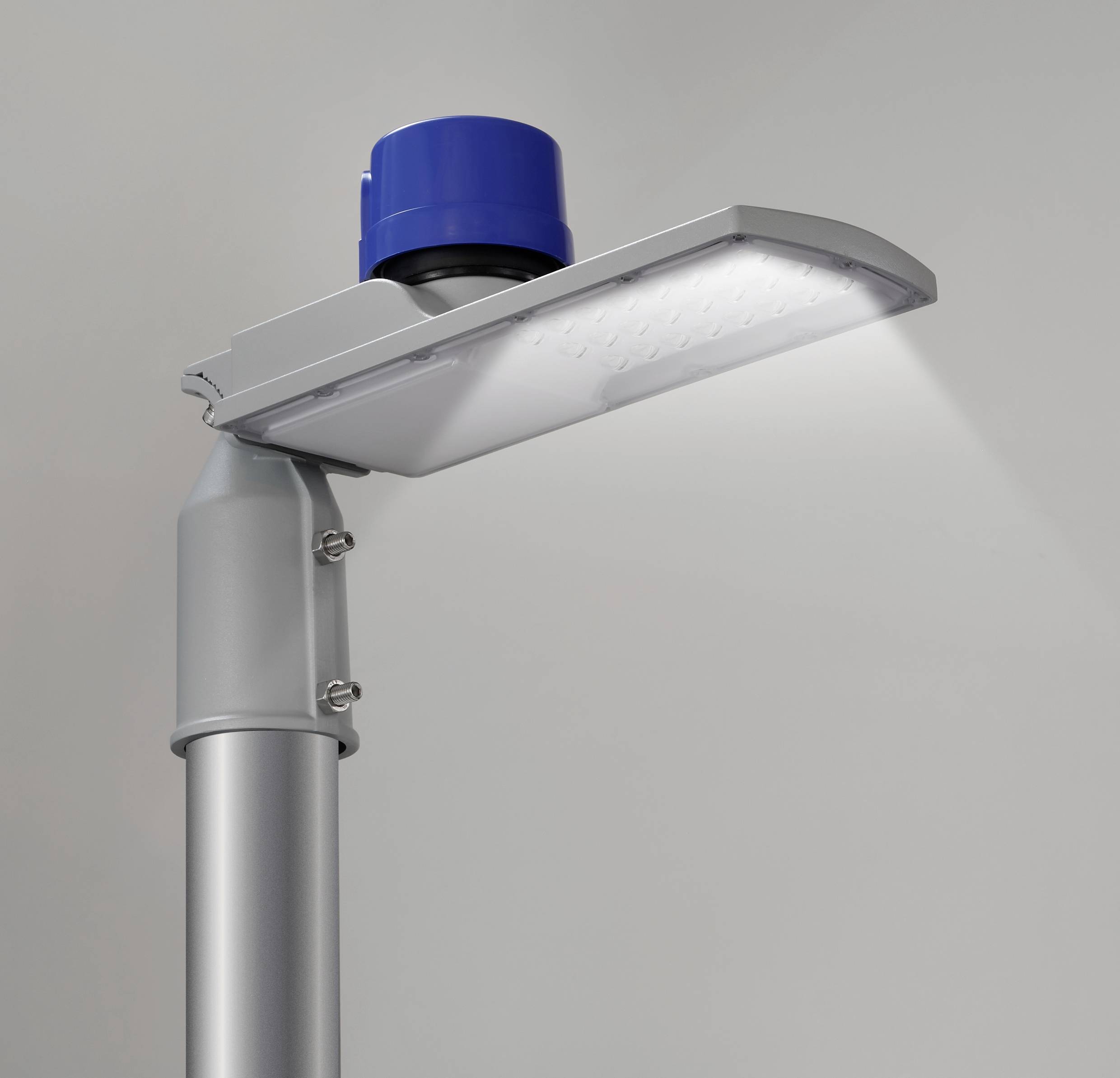

A modern, silver LED street lamp with a blue sensor on top, mounted in a bright interior, casting light downwards.

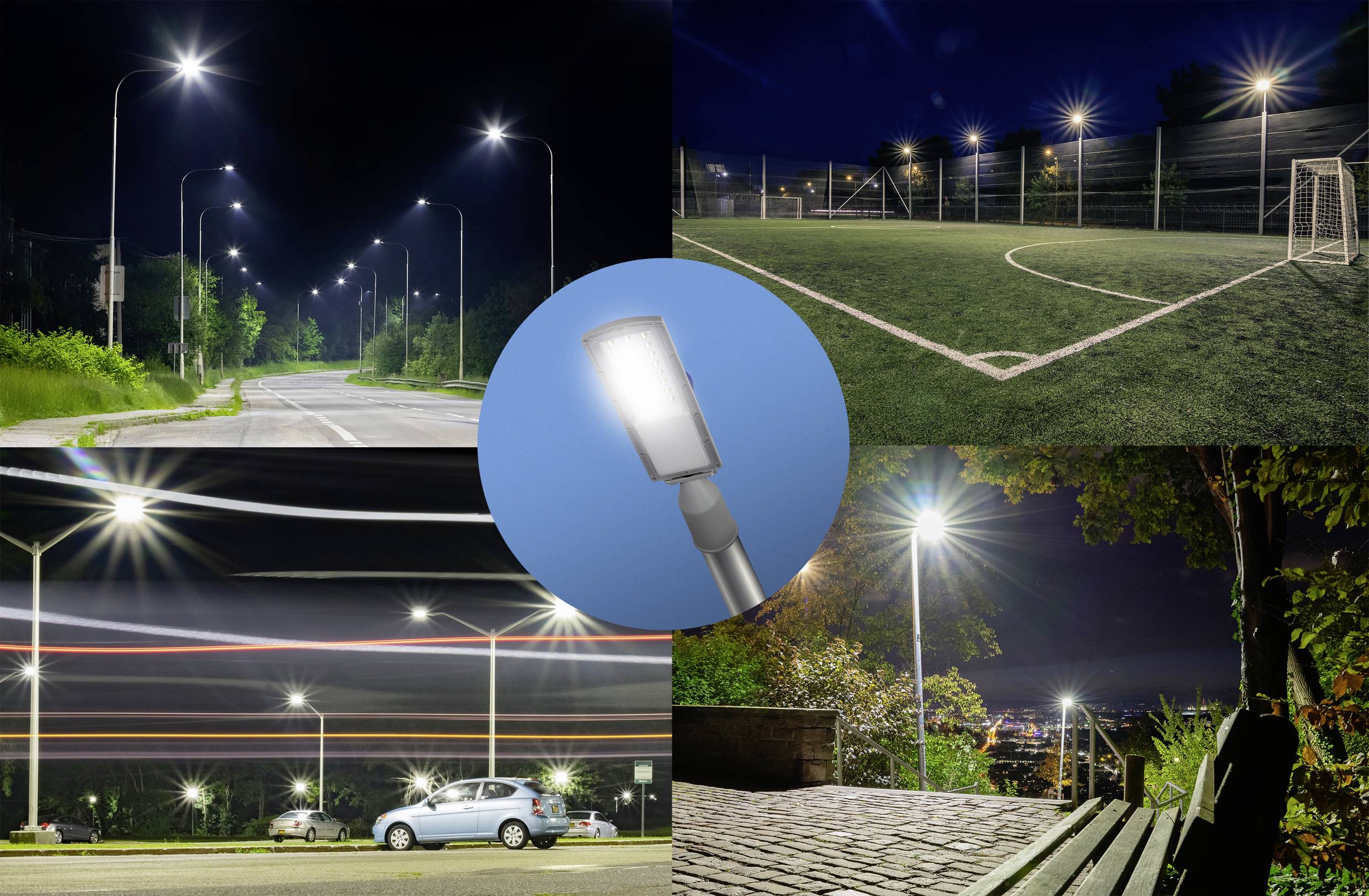

Street lamps illuminate a road, a sports field, and a car park. A central image shows a single lamp post.

1/8

Product data sheet

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

35 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 22.99 / piece)

€ 22.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Premium quality die-cast heatsink
UV stablized PC lens with accurate TYPE II forward throw light distribution for wide coverage
High efficiency LED chip with 170lm/W
Perfect replacement for traditional lights
3-pin socket and 3-pin daylight sensor
Surge protectiion
Slim and smooth design prevents dust and dirt accumulation
Adjustable lamp head (15°)
With level gauge
IP65
Non-dimmable
Hole size: 60 mm size
With 30 cm AC wire

Our service for you

Technical specifications

Daylight sensor power: max 10VA
Hole size: 60mm size is available
Surge protection

Product type: LED street light

Operating voltage: 230 V AC

No. of bulbs: 24

Bulb type: SMD LED

: Built-in LED

: 30 W

Energy consumption: 30 kWh/1000h

: 6500 K

Colour: Cool white

: 5100 lm

Light features: Incl. sensor

: IP65

Factory colour: Grey

Weight: 1.05 kg

Dim: (L x W x H) 438 x 108 x 75 mm

: C (A - G)

Colour temperature range: 6500 K

Width: 108 mm

Height: 75 mm

Length: 438 mm

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2986429 Sygonix SY-5972858 LED street light EEC: C (A - G) SMD LED Built-in LED 30 W Grey

Warranty Terms

Warranty Terms 2986429 Sygonix SY-5972858 LED street light EEC: C (A - G) SMD LED Built-in LED 30 W Grey

Description

Professional lighting of streets, parking spaces and access roads
Wherever precise, clear light is required, the Sygonix LED Street lighting provides for a concrete overview. Fitted with a highly efficient LED chip and a UV-stabilized PC reflector the lamp generates cold-white light of the color 6500 K in a large angle of radiation of 70 x 135°.
Reliable well thought-out technology
A spirit level is integrated into the adjustable lamp holder to ensure quick and professional alignment of the bulb. The street lighting is equipped with a surge protection and a high-quality cast-cooling element prevents overheating. The lamp is dust-proof and protected against all-round splash water in accordance with IP65, whereby even the slim and smooth design prevents dust and dirt accumulation.
All-round delivery package
The Sygonix LED street lighting is supplied with waterproof connection, 3-pin coupling and 3-pin daylight sensor as well as 30 cm AC feed line. An operating manual is also included in the scope of delivery.

This text is machine translated.
