Name: Sygonix SY-5972866 LED street light EEC: C (A - G) LED (monochrome) Built-in LED 200 W Grey
Brand: Sygonix
SKU: 2986433
Availability: InStock

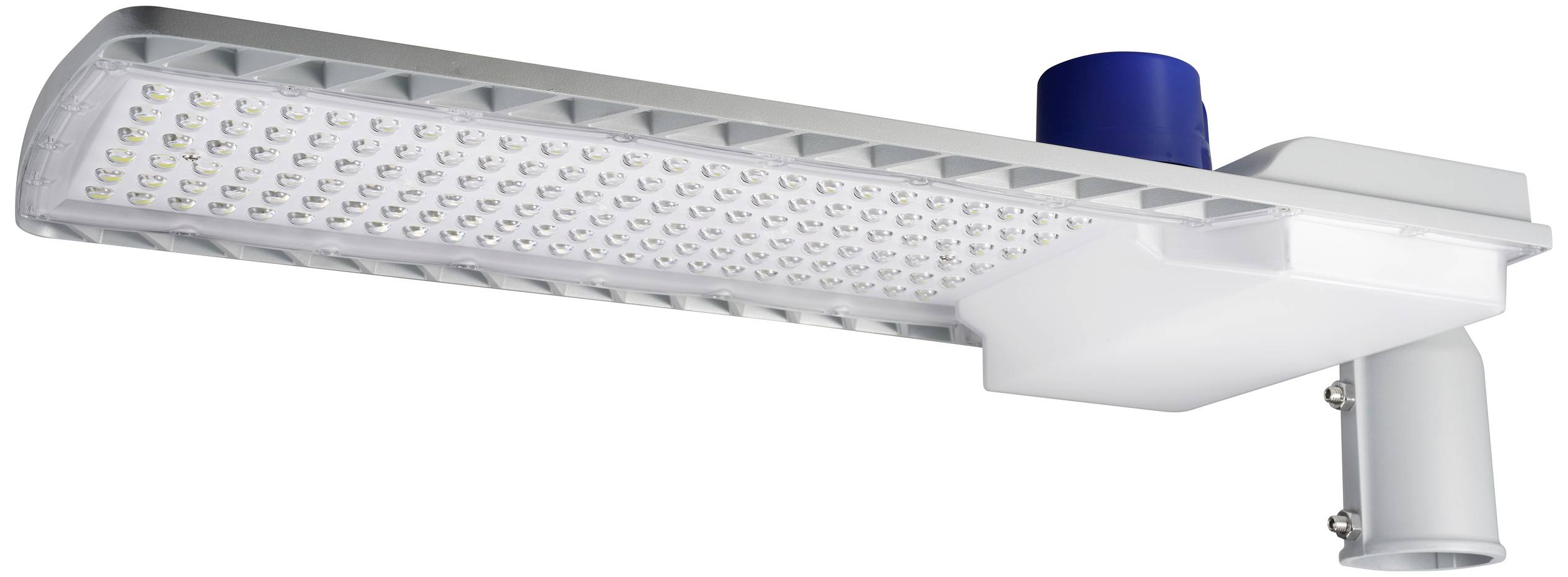

A rectangular LED street lighting unit with numerous small lamps. A blue component is mounted on top.

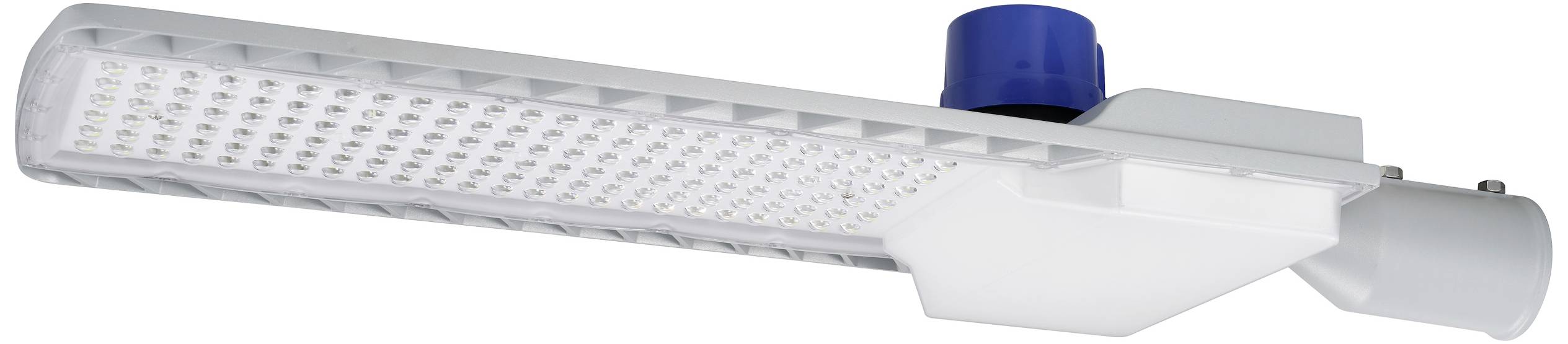

LED street lamp with a blue sensor on the top, rectangular luminaire, and modern design.

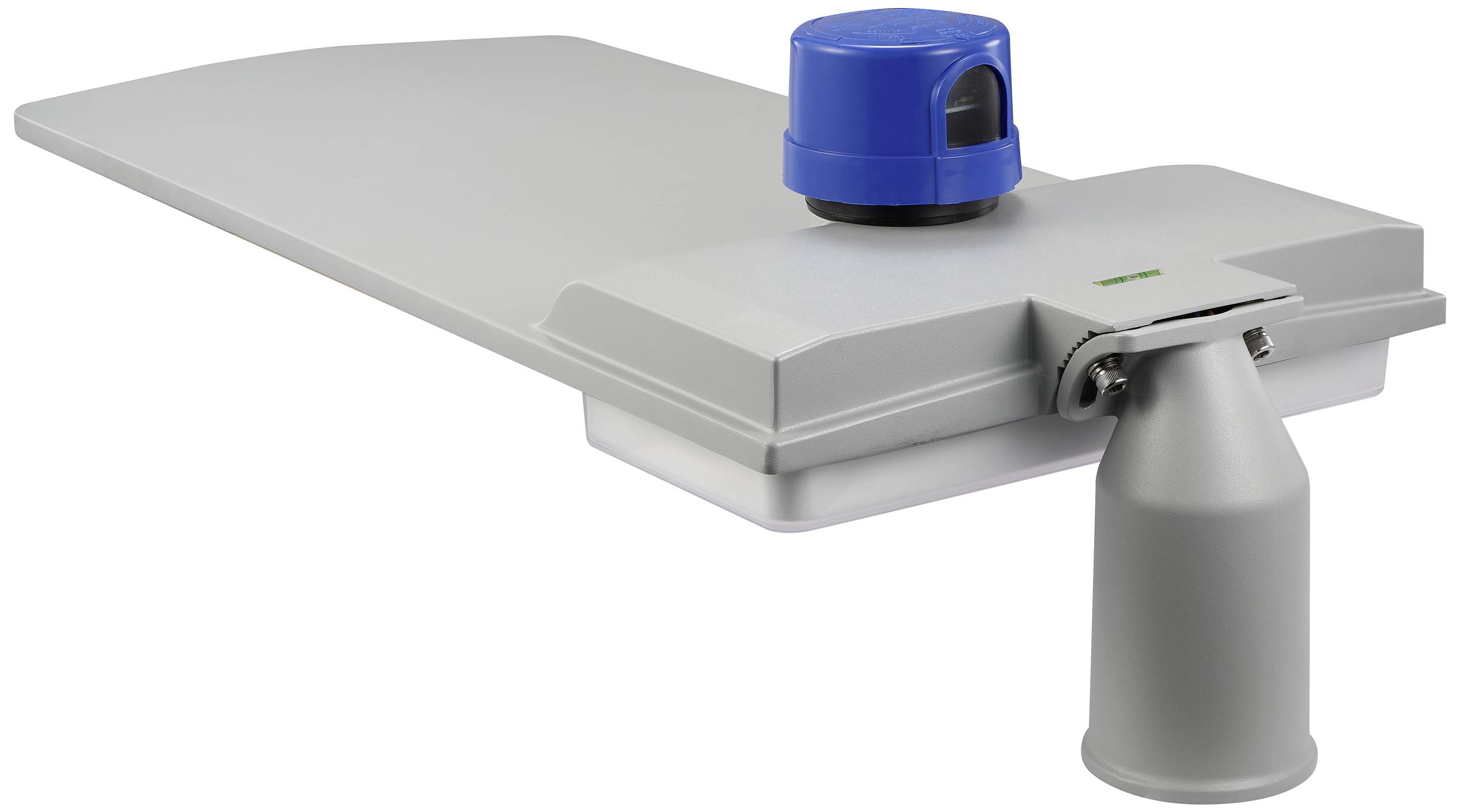

Grey street lamp with blue sensor on white background.

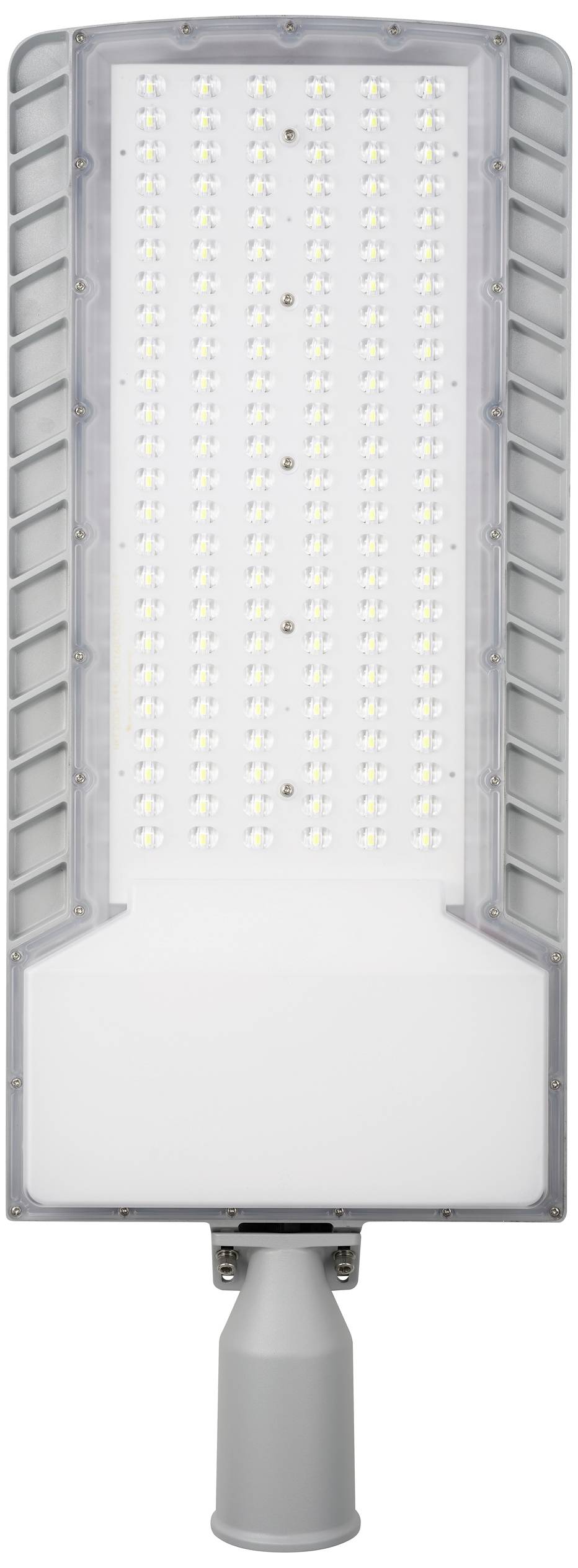

Large, rectangular LED street light with numerous small, evenly distributed light-emitting diodes on a white surface.

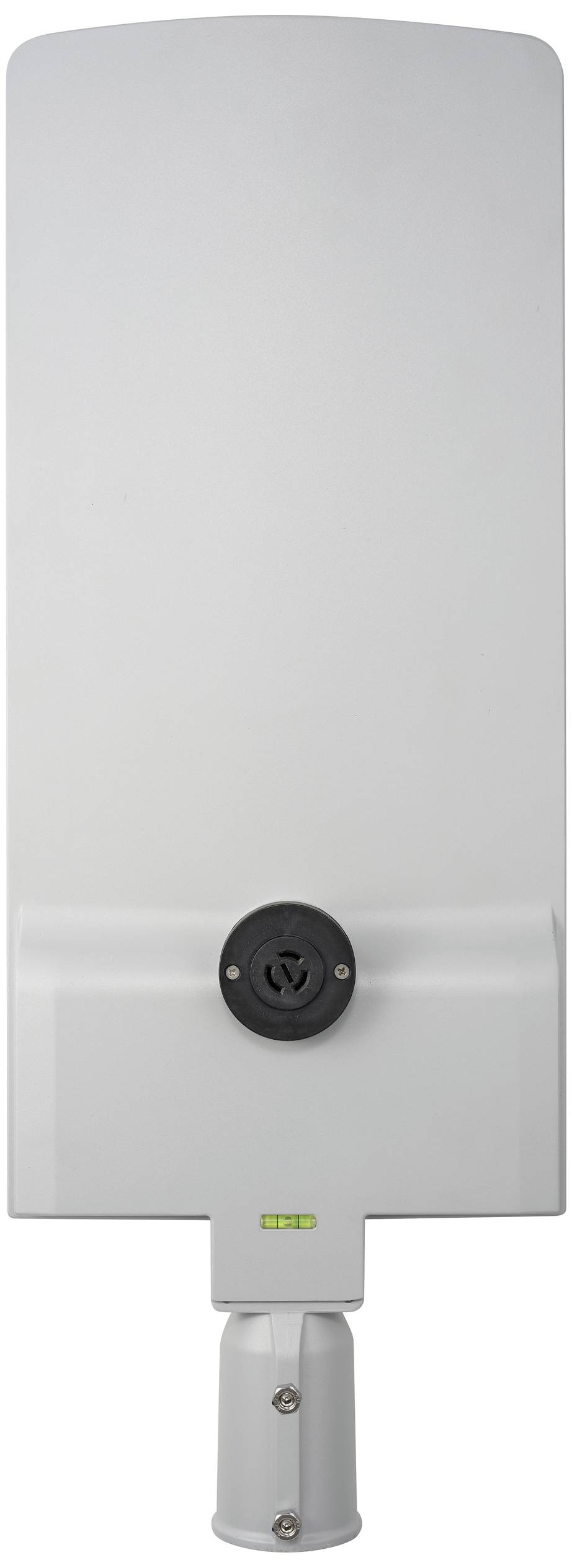

A white external antenna, rectangular in shape, with a black mounting bracket in the centre and a mounting foot at the bottom.

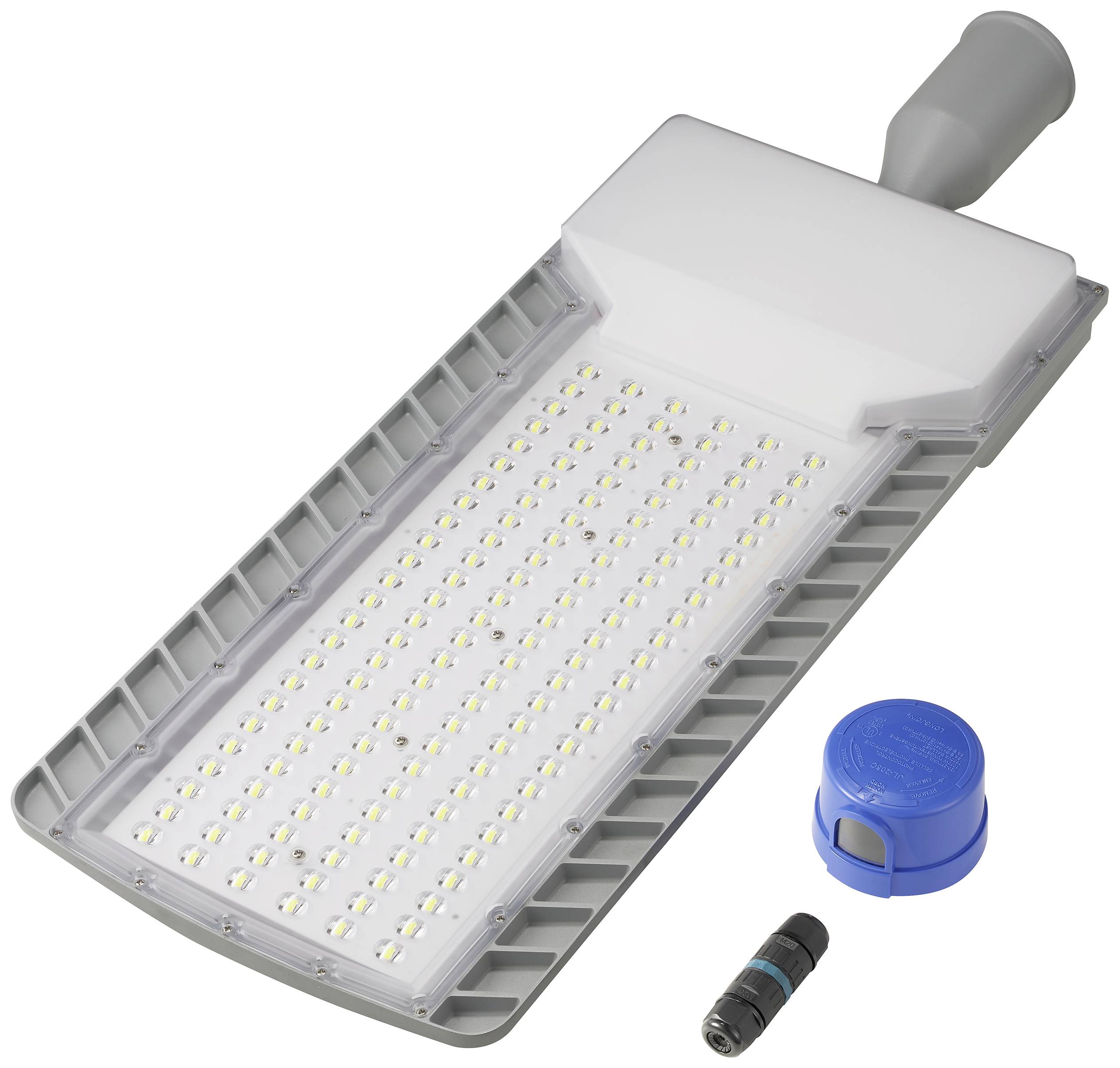

LED street light with a rectangular housing in grey and white. Contains numerous LEDs arranged in rows. Blue component and small black adapter beside it.

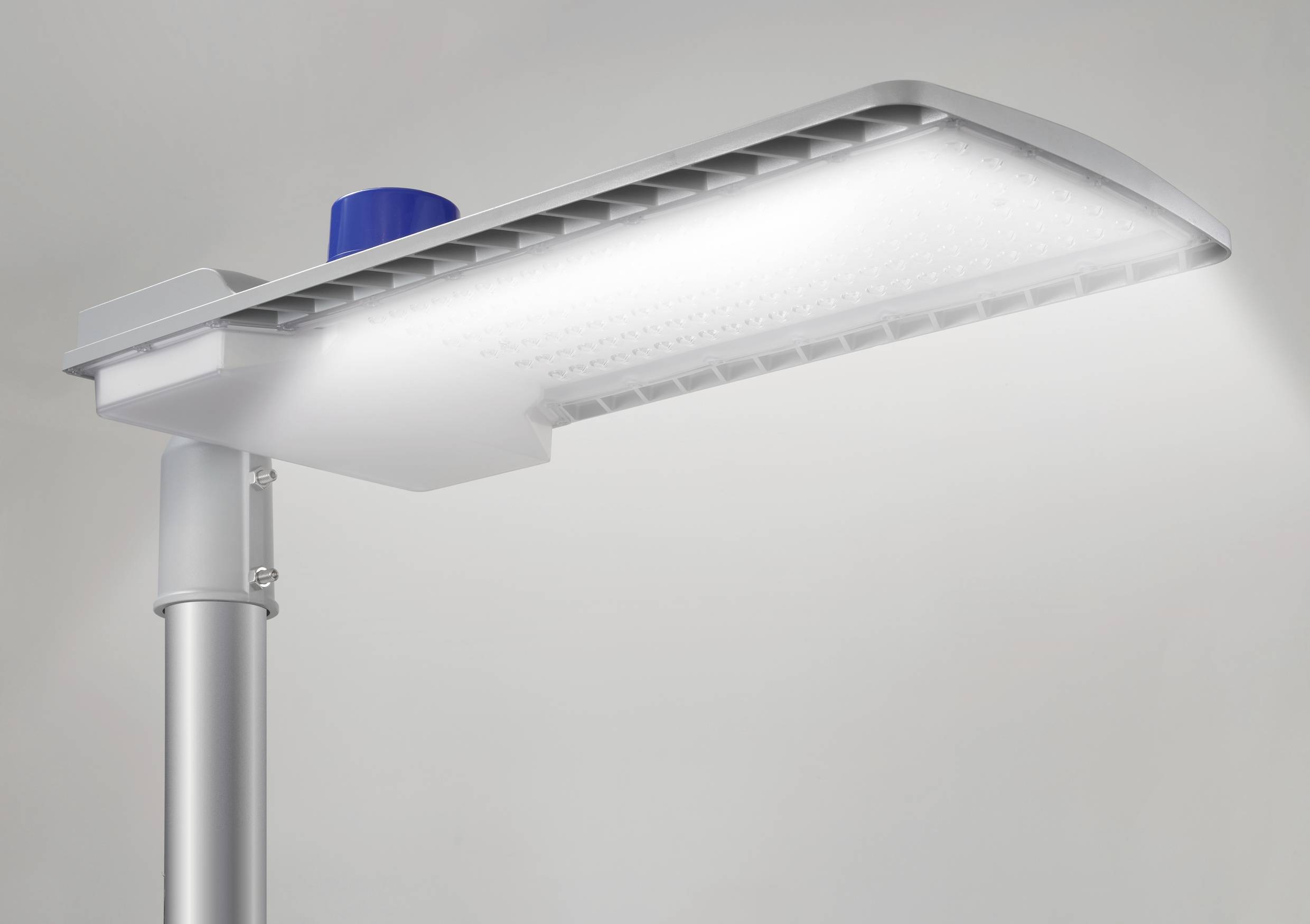

Street lamp with LED light, mounted on a grey metal pole, shining white light downwards.

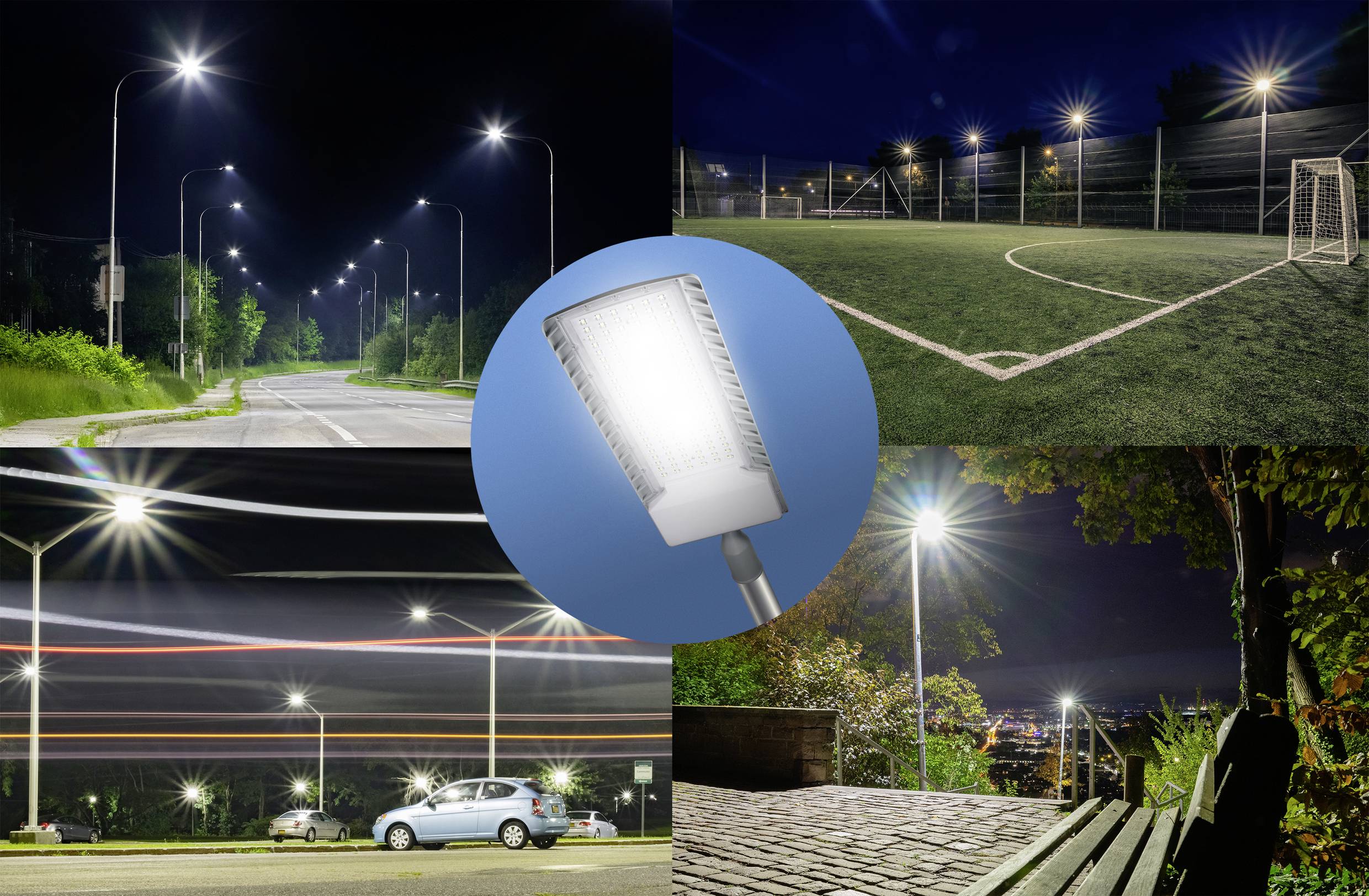

The collage shows various outdoor scenes at night with streetlamps and football pitches. In the centre is a close-up of a lamp.

1/8

Product data sheet

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

49 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 67.99 / piece)

€ 67.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Premium quality die-cast heatsink
UV stablized PC lens with accurate TYPE II forward throw light distribution for wide coverage
High efficiency LED chip with 170lm/W
Perfect replacement for traditional lights
3-pin socket and 3-pin daylight sensor
Surge protectiion
Slim and smooth design prevents dust and dirt accumulation
Adjustable lamp head (15°)
With level gauge
IP65
Non-dimmable
Hole size: 60 mm size
With 30 cm AC wire

Our service for you

Technical specifications

"Beam Angle: Type II 70*135°
Daylight sensor power: max 10VA
Hole size: 60mm size is available
Surge protection"

Product type: LED street light

Operating voltage: 230 V

No. of bulbs: 144

Bulb type: LED (monochrome)

: Built-in LED

: 200 W

Energy consumption: 200 kWh/1000h

: 6500 K

Colour: Cool white

: 36000 lm

Total luminous flux: 36000 lm

Light features: Incl. sensor

: IP65

Factory colour: Grey

Weight: 3.57 kg

Dim: (L x W x H) 740 x 276 x 75 mm

: C (A - G)

Colour temperature range: 6500 K

Width: 276 mm

Height: 75 mm

Length: 740 mm

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2986433 Sygonix SY-5972866 LED street light EEC: C (A - G) LED (monochrome) Built-in LED 200 W Grey

Warranty Terms

Warranty Terms 2986433 Sygonix SY-5972866 LED street light EEC: C (A - G) LED (monochrome) Built-in LED 200 W Grey

Description

Professional lighting of streets, parking spaces and access roads
Wherever precise, clear light is required, the Sygonix LED Street lighting provides for a concrete overview. Fitted with a highly efficient LED chip and a UV-stabilized PC reflector the lamp generates cold-white light of the color 6500 K in a large angle of radiation of 70 x 135°.
Reliable well thought-out technology
A spirit level is integrated into the adjustable lamp holder to ensure quick and professional alignment of the bulb. The street lighting is equipped with a surge protection and a high-quality cast-cooling element prevents overheating. The lamp is dust-proof and protected against all-round splash water in accordance with IP65, whereby even the slim and smooth design prevents dust and dirt accumulation.
All-round delivery package
The Sygonix LED street lighting is supplied with waterproof connection, 3-pin coupling and 3-pin daylight sensor as well as 30 cm AC feed line. An operating manual is also included in the scope of delivery.

This text is machine translated.
