Sygonix SY-6906478 Timer/power strip analogue 24h mode 3680 W 24/7 operation
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
6% = € 0.27
€ 4.34
10
8% = € 0.37
€ 4.24
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Highlights & Details

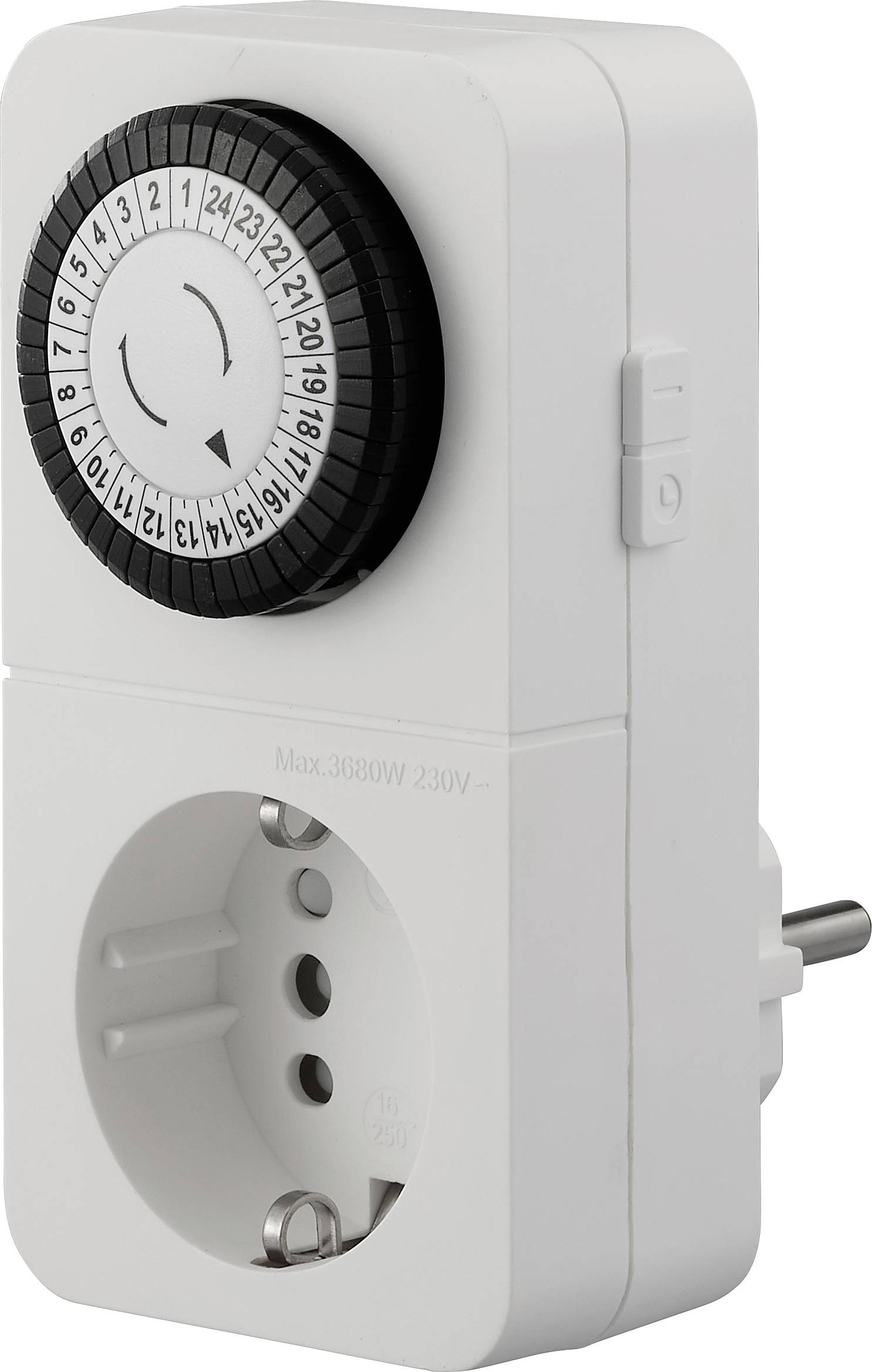

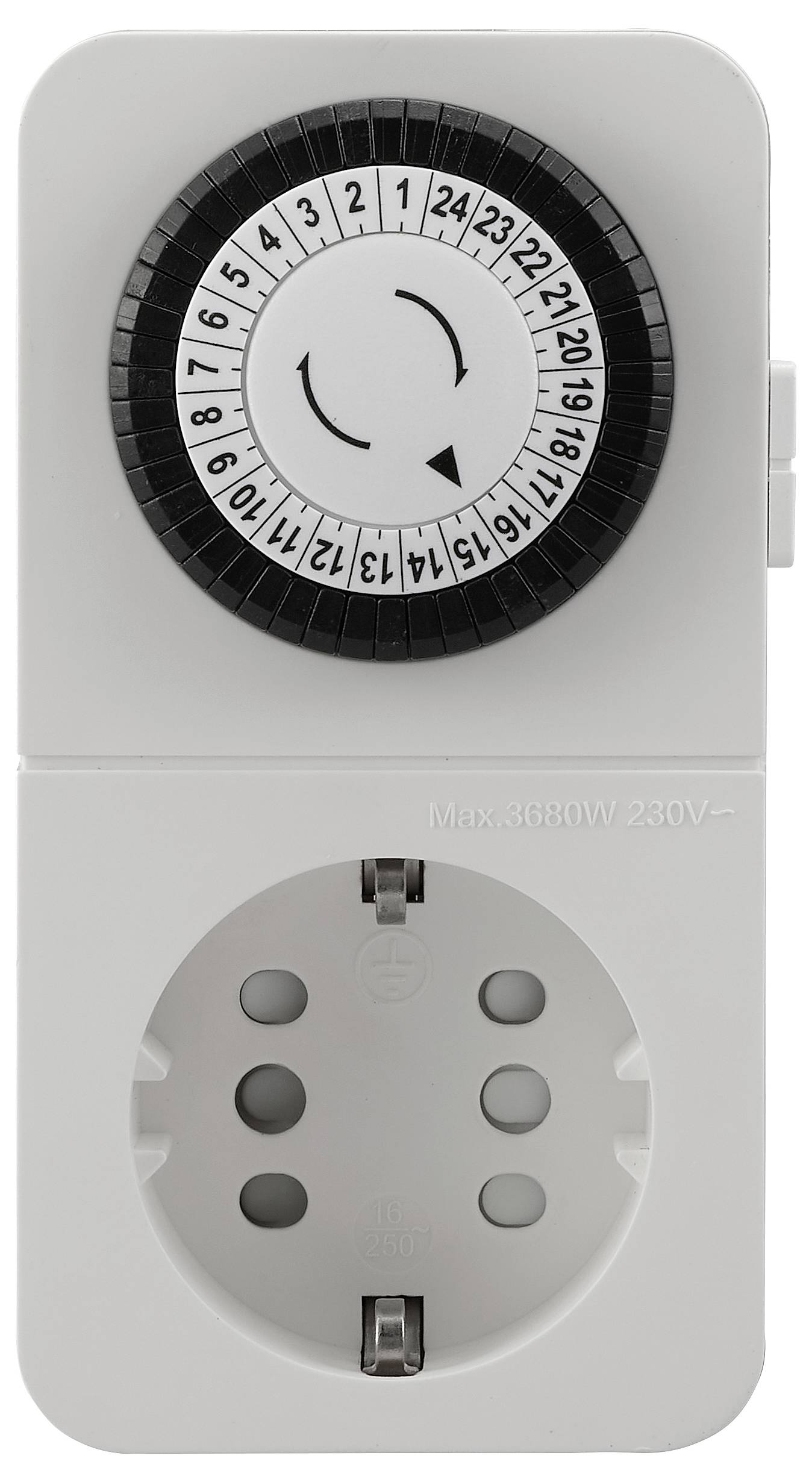

SYGONIX Mechanical timer with combination socket
- Innovative combination socket outlet, suitable for one protective contact plug or two Euro plugs
- Min. setting time: 30 minutes
- Max. 48 on/off cycles per day
Technical specifications
- Product type
Timer/power strip
- Type
analogue
- Features
24/7 operation
- Switching cycle
24h mode
- Used at
Indoors
- Max. switching capacity
3680 W
- Operating voltage
230 V AC
- Switching current (max.)
16 A
- Factory colour
White
- Shortest switching time
30 min
- Width
58 mm
- Height
109 mm
- Depth
78 mm
- Dim
(W x H x D) 58 x 109 x 78 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3453239 Sygonix SY-6906478 Timer/power strip analogue 24h mode 3680 W 24/7 operation
Warranty Terms
Warranty Terms 3453239 Sygonix SY-6906478 Timer/power strip analogue 24h mode 3680 W 24/7 operation
Description
The white Sygonix daytime timer switch is a mechanical, analogue switching device for indoor use. It works with an operating voltage of 230 V/AC and supports a maximum switching power of 3680 W at a switching current of up to 16 A. The model measures 58 x 109 x 78 mm (W x H x D) and comes in a plastic-free packaging together with the operating instructions.
Versatile multi-purpose socket

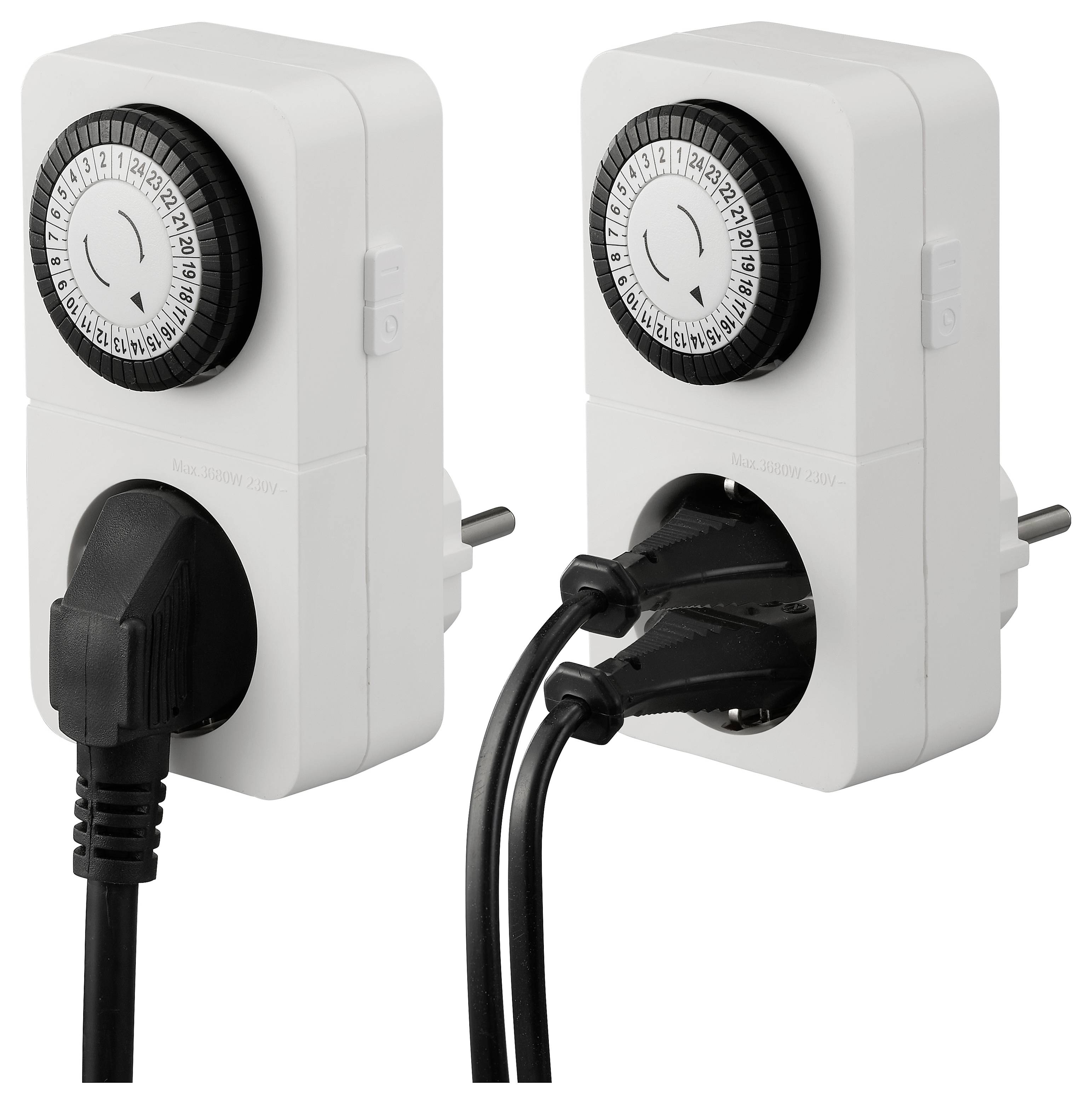

The timer switch is designed as a combination socket, which allows the optional admission of one safety plug or of two Euro plugs. This allows different types of devices to be connected directly, without the need for additional splitters or adapters.
Adjustable day program
The analog system offers a daily program, which can be divided into up to 48 switch-on and switch-on intervals per day. The shortest adjustable switching time is 30 minutes. This permits demand-driven, automated control of the connected consumers over the entire working day.
Security and manual control
To avoid accidents during handling, the time switch is equipped with increased protection against accidental contact. In addition, the equipment possesses a manual bridging switch. This allows the user to temporarily bypass the programmed time switching and to switch the connected devices to continuous operation if required.
This text is machine translated.
Versatile multi-purpose socket
The timer switch is designed as a combination socket, which allows the optional admission of one safety plug or of two Euro plugs. This allows different types of devices to be connected directly, without the need for additional splitters or adapters.
Adjustable day program
The analog system offers a daily program, which can be divided into up to 48 switch-on and switch-on intervals per day. The shortest adjustable switching time is 30 minutes. This permits demand-driven, automated control of the connected consumers over the entire working day.
Security and manual control
To avoid accidents during handling, the time switch is equipped with increased protection against accidental contact. In addition, the equipment possesses a manual bridging switch. This allows the user to temporarily bypass the programmed time switching and to switch the connected devices to continuous operation if required.
This text is machine translated.
Features
- Enhanced protection against accidental contact
- Manual override switch
Scope of delivery
- Timer
- User manual
