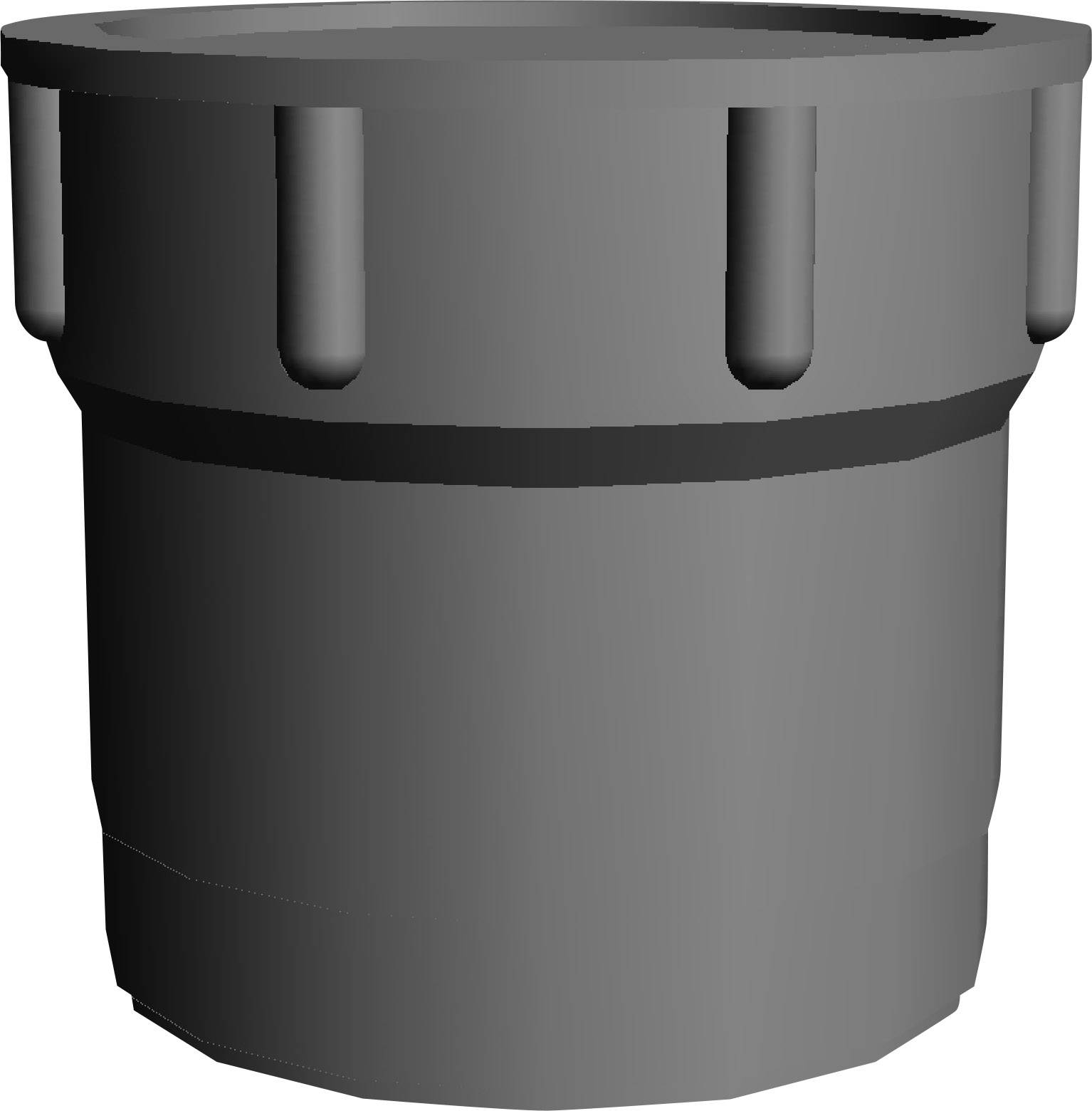

TE Connectivity 207055-1 Bullet connector Series (round connectors): CPC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Content
1 pc(s)
Nominal current - rounded value
5 A
Nominal voltage
250 V
Type
207055-1
Datasheet (PDF)
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
Only 6 Piece(s) available
Highlights & Details
CPC accessories
Our service for you
Technical specifications
- Type
207055-1
- Product type
Bullet connector
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
5 A
- Min. temperature
-25 °C
- Nominal current - rounded value
5 A
- Nominal voltage
250 V
- Cable Ø (max.)
3.48 mm
- Cable Ø up to
3.48 mm
- Case material
Thermoplastic UL94V-1
- Connection angle
180°
- Manufacturer part #
207055-1
- Cable Ø range
3.48 - 3.48 mm
- Length
36.83 mm
- (Ø)
30.48 mm
- RoHS-compliant
Yes
- Series
CPC
- Material (details)
Polyamide, UL94-1 – heat stabilized – self-extinguishing
- Nominal current (details)
See data sheet
- Pins
-
Documents & Downloads
Datasheet
Datasheet 1369316 TE Connectivity 207055-1 Bullet connector Series (round connectors): CPC 1 pc(s)
Information
Information 1369316 TE Connectivity 207055-1 Bullet connector Series (round connectors): CPC 1 pc(s)
Description
Protective cover with strain relief for case sizes 11, 13, 17 and 23. Normal cable clamping range.
Scope of delivery
- · Without cover
- This text is machine translated.
