TECHly IDATA-EXT-E70I HDMI™ Extension via RJ45 network cable 60 m
EAN:
Part number:
Item no:
Total (€ 91.99 / piece)
€ 91.99
incl. VAT
14-day return policy included
Highlights & Details
Techly HDMI™ Extender with IR, 60m
- • enables the simple extension of the HDTV signal up to 60 m via a copper network cable Cat. 6/6A/7
- • with automatic setting based on the type of network cable used and infrared
- • Supported resolutions: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz, 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
- • Maximum supported video resolution: 1080p
- • Bandwidth supported: 10.2 Gbps
- • supports deep color 8 bit
- • supports PCM stereo audio
- • Compatible with HDCP 1.3
- • supports 3D
- • Infrared remote control: Supports 20-60 kHz
- • Consumption: Transmitter:< 2W; Receiver:< 2W
Technical specifications
- Product type
Extension
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
1920 x 1080 p
- Range (max.)
60 m
- Factory colour
Multicolour
- Weight
460 g
- Length
7.16 cm
- Width
85 mm
- Height
155 mm
- Dim
(L x W x H) 7.16 cm x 85 mm x 155 mm
- Cable length
60 m
- Version
Cable
- Type A
HDMI plug
- Type B
HDMI plug
- Depth
200 mm
- Cable use
RJ45
- Connection type
RJ45
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1783714 TECHly IDATA-EXT-E70I HDMI™ Extension via RJ45 network cable 60 m
Description

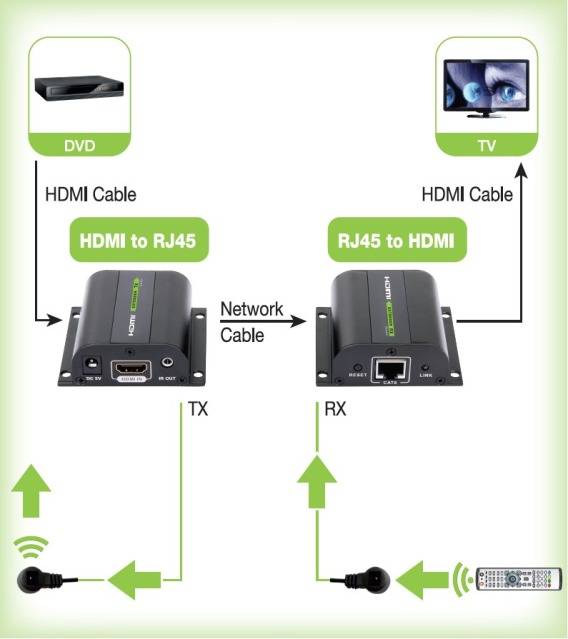

This HDMI extender enables the transmission of HDTV signals with a network cable Cat. 5e / 6 / 6A / 7 over long distances.
With a high-quality copper network cable, up to 60 m in length can be achieved with a video resolution of 1080p.
Thanks to the automatic adjustment, the settings can be changed according to the different cable length from 1 to 60 m, in order to achieve the best possible view.
This model is equipped with infrared synchronization technology.
This text is machine translated.
With a high-quality copper network cable, up to 60 m in length can be achieved with a video resolution of 1080p.
Thanks to the automatic adjustment, the settings can be changed according to the different cable length from 1 to 60 m, in order to achieve the best possible view.
This model is equipped with infrared synchronization technology.
This text is machine translated.

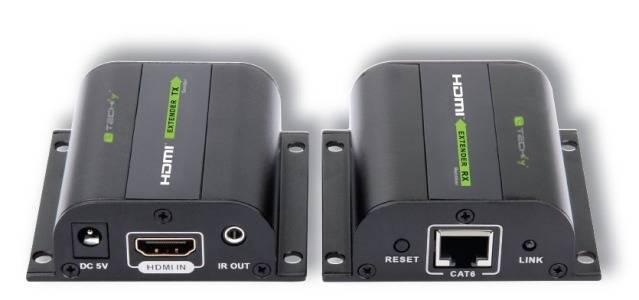

Features
- Transmitter connections
- • Power consumption DC 5V
- • Input signal HDMI
- • Infrared signal output for connecting an infrared transmitter
- • Reset button
- • Output signal RJ45
- • LED display for the HDMI signal

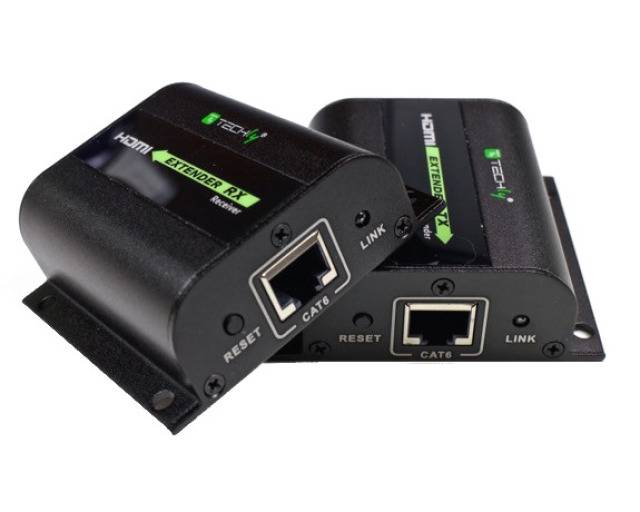

- Receiver connections
- • Reset button
- • Signal input RJ45
- • LED display for connection status
- • Power consumption DC 5V
- • HDMI signal output
- • Infrared signal input

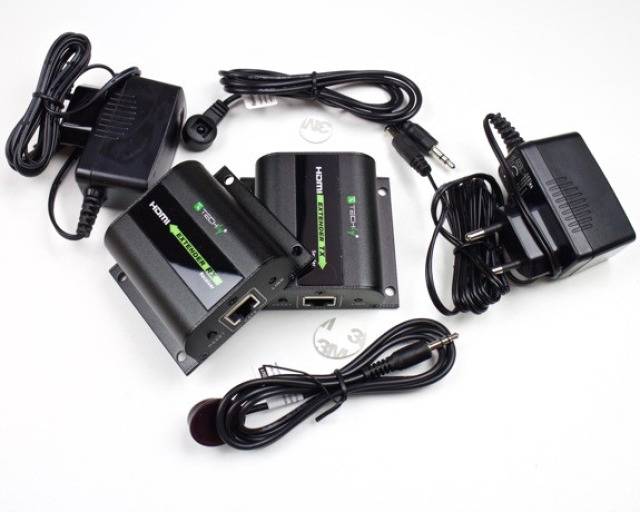

Scope of delivery
- • 1x transmitter HDMI to LAN
- • 1x receiver LAN to HDMI
- • 2x power supply DC5V1A
- • 1x connection Infrared extension
- • 1x infrared extension receiver
- • 1x operating instructions
