Buy Telegärtner 100023062 Telegärtner 100023062 N/A 100023062 Plug, straight 1 pc(s) 100023062 Plug, straight 1 pc(s)

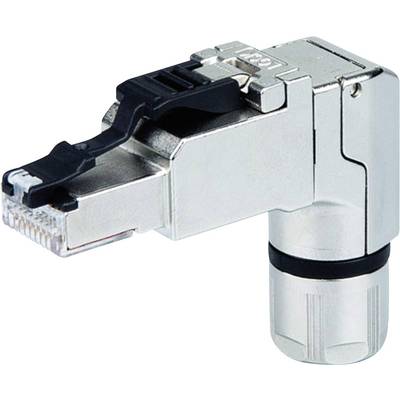

A right-angled RJ45 network plug with a robust silver metal casing and black locking mechanism, for secure connections.

Image similar

Right-angled RJ45 connector with blue Cat7 network cable connection, suitable for tight spaces.

A blue network cable plug with a metal housing bent at a right angle.

A plug of a blue Ethernet cable with a metallic protective sheath, shown from the side.

A blue Ethernet cable plug is connected to a metallic socket with a black locking mechanism.

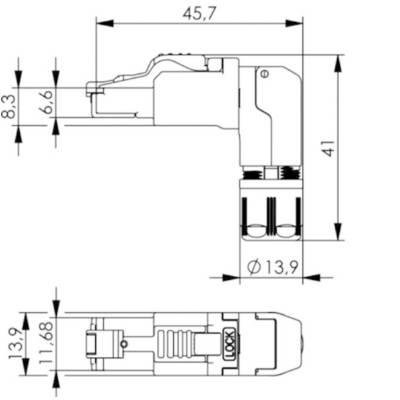

Technical drawing of an L-shaped connector with dimensions: 45.7 mm length, 41 mm height, diameter 13.9 mm.

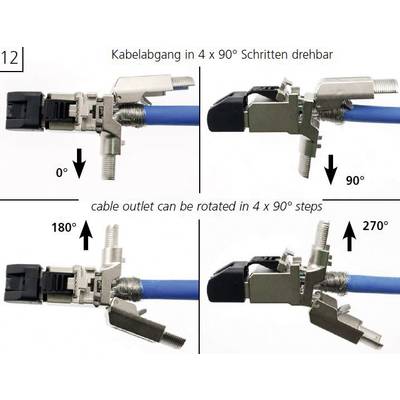

'Cable outlet rotatable in 4 x 90° steps.' Four views of a cable connection, rotated at 0°, 90°, 180° and 270°.

1/7

Image similar

Connector type

Plug, straight

Specification

CAT 6A

Connector standard

RJ45

Type

100023062

Weight

30 g

Datasheet (PDF)

Fast track dispatch on Thu, 3 Sep

143 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 17.64 / piece)

€ 23.52

-25 %

€ 17.64

plus VAT.

Report legal concerns

Technical specifications

Type: 100023062

Connector type: Plug, straight

: CAT 6A

Connector standard: RJ45

Weight: 30 g

Content: 1 pc(s)

Contact material: Ni1,2Au0,8

Width: 13.9 mm

Height: 49 mm

Length: 38 mm

RoHS-compliant: Yes

Compatible with (details): CU-conductor-Ø: Solid wire: 0.51 - 0.64 mm · Stranded wire 0.46 - 0.78 mm

Material (details): Housing: zinc die cast, nickel-plated

Type: 360° fully shielded

: 27/7 - 22/7, 26/1 - 22/1, 26/19 - 24/19

Cable diameter (details): 5.5 mm

Temperature range: -40 - +70 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1341188 Telegärtner 100023062 Telegärtner 100023062 N/A 100023062 Plug, straight 1 pc(s) 100023062 Plug, straight 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1341188 Telegärtner 100023062 Telegärtner 100023062 N/A 100023062 Plug, straight 1 pc(s) 100023062 Plug, straight 1 pc(s)

Description

Of the RJ45 CONNECTOR CAT.6 A is the for time-saving and reliable pre-fabrication on site, for all networks of voice up to 10 Gigabit Ethernet. In just 60 seconds, it can be on all common types of cable - without the need for special tools. Especially with limited space in the data center can be connections centimeter quickly and cost-effectively. Cable lengths clip and the resulting space problems are a thing of the past. And thanks to its compact design, the multi-port enabled Cat 6A connector also can be used in a confined space.
Application:
Step 1: cable sheath, remove pairs sorting, untwisting and in the wires manager imports. The integrated mounting help protects the circuit board and simplifies the installation. The well visible printing, the color code according to T568A and T568B can be chosen. Wires manager with a pair of pliers together and push in the protruding Veins cut.
Step 2: installation aid and remove the circuit board with the connected wires in the connector housing. The wires management is secured against rotation designed and can only be used in the right orientation in the connector housing.
Step 3: Housing latching and the strain relief in place.
