Telestar ANTENNA 3 LTE DVB-T/T2 active planar antenna White

White Telestar outdoor antenna panel with black mounting bracket on a plain background.

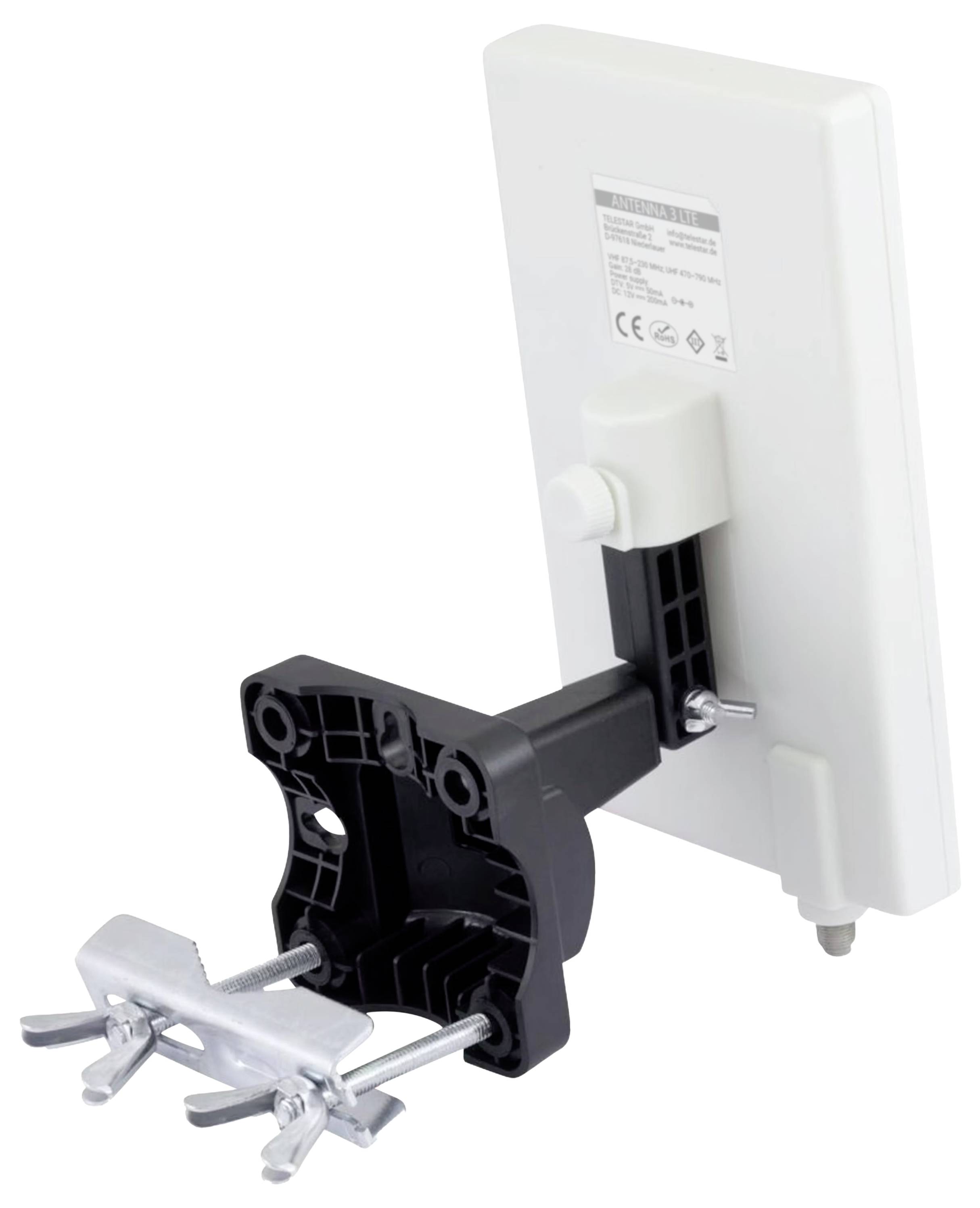

Wall-mounted white device shown from the back, with a black adjustable bracket and metal clamp for securing it to a pole or surface.

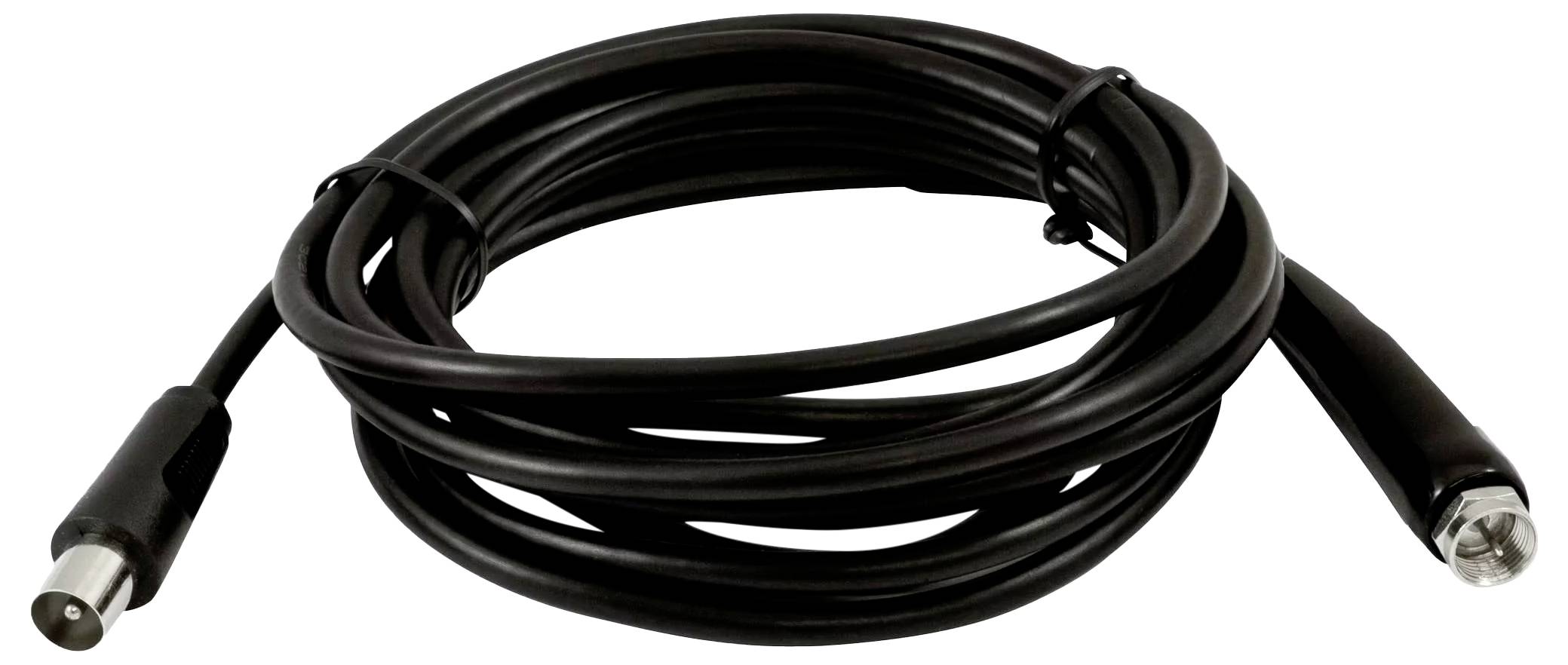

Coiled black cable with metal connectors on both ends, shown on a white background.

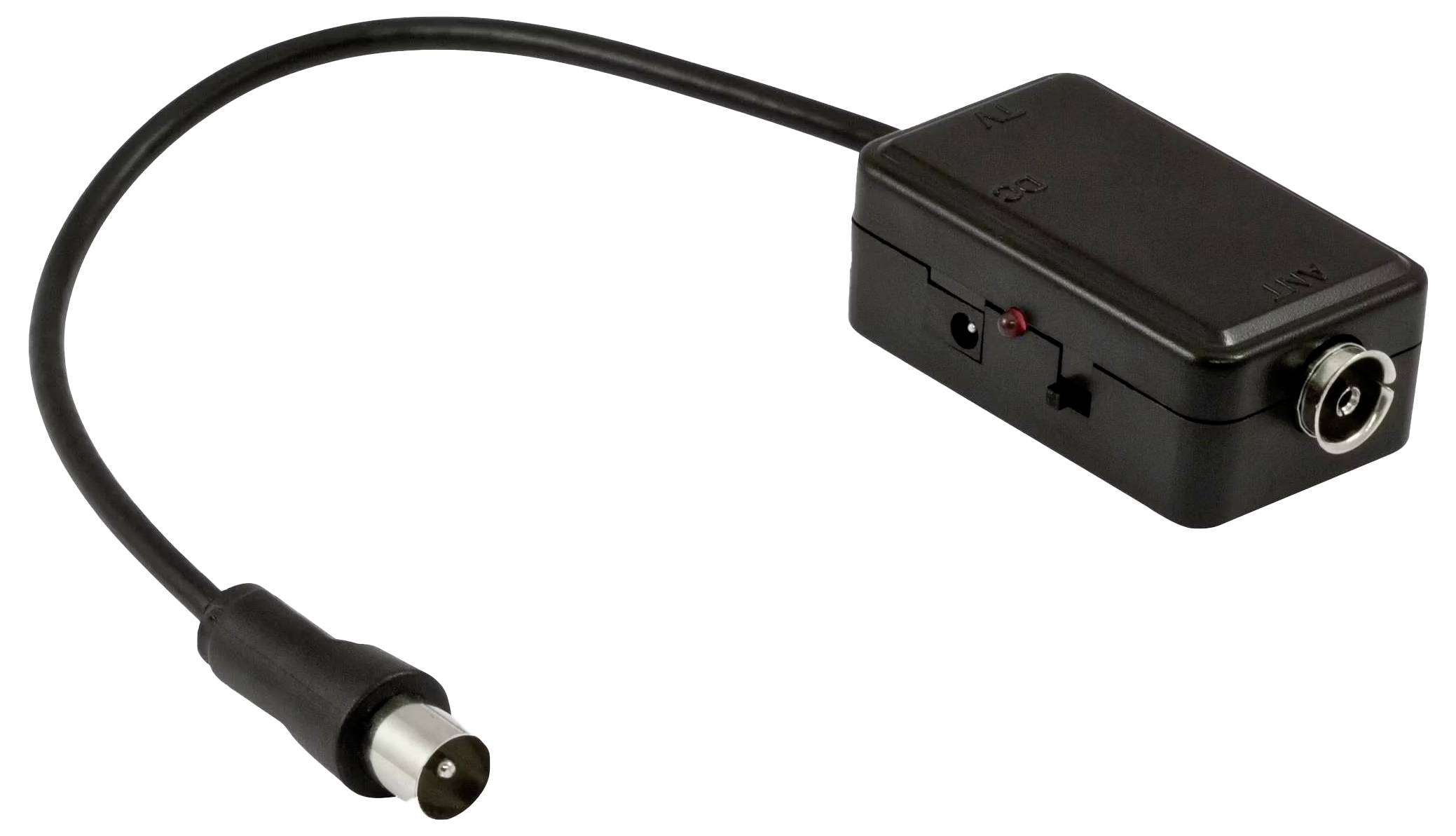

Black adapter cable with a rectangular inline power module and circular connector on a white background.

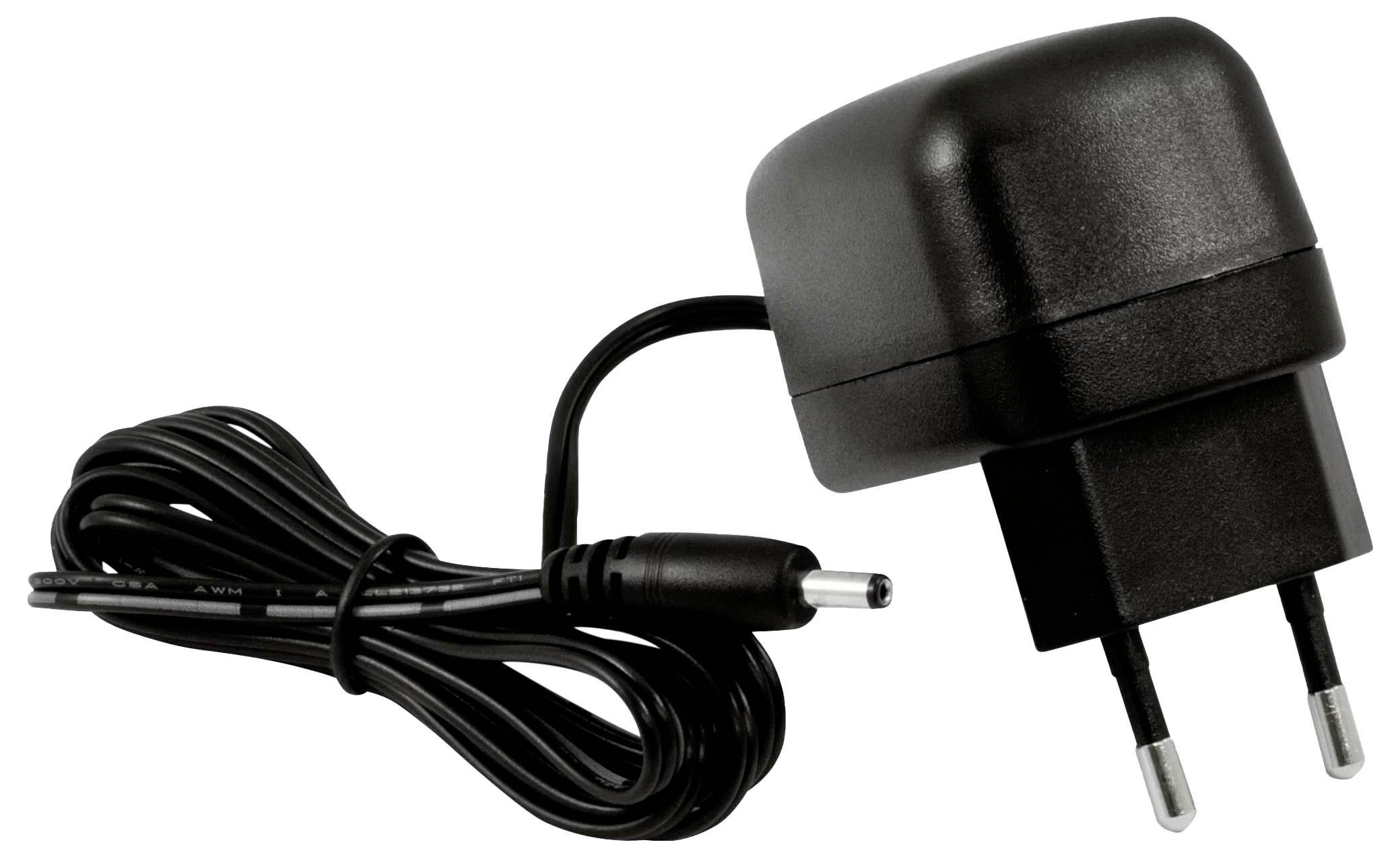

Black AC power adapter with two-prong plug and attached coiled cable ending in a barrel connector on a white background

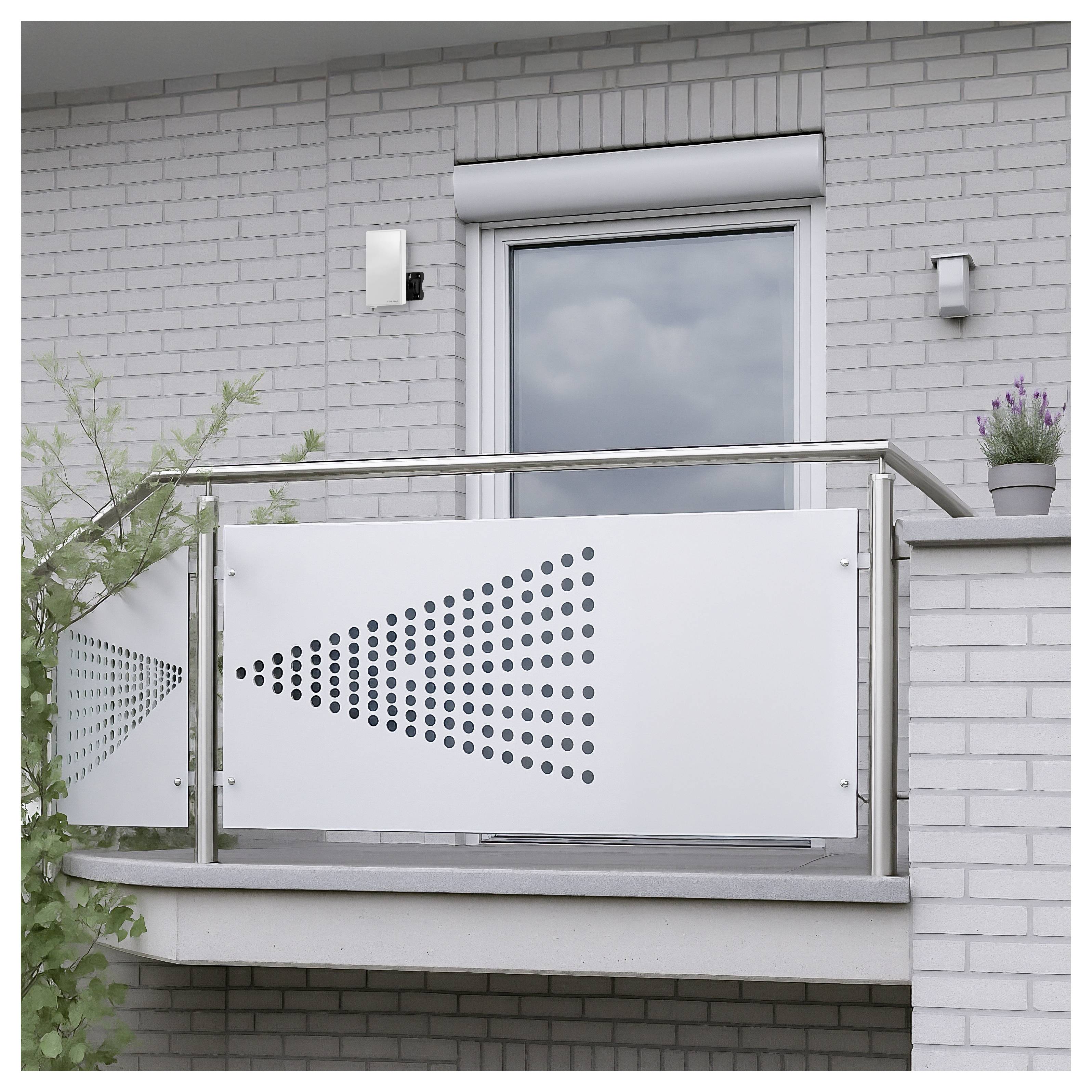

Modern balcony with white perforated metal privacy panels and a stainless railing against a gray brick apartment wall, with a window and small potted plant.
1/6
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
8 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 34.99 / piece)
€ 34.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 8 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Telestar ANTENNA 3 LTE TV-antenna indoor, outdoor 30 dB

  • Active DVB-T2 antenna for outdoor and indoor areas
  • Also suitable for DAB+ reception
  • Amplification: Up to 28 dB
  • Power supply: 5 V via DVB-T receiver or 12V via external power supply
  • UV resistant and waterproof case
  • Mounting on the wall, at the mast or on the table

Technical specifications

  • Digital signal-format system DVB-T,DVB-T2
Product type

DVB-T/T2 active planar antenna

Dim

(W x H x D) 110 x 138 x 203 mm

Weight

538 g

Factory colour

White

Width

110 mm

Height

138 mm

Tuner

FM

Depth

203 mm

Impedance

75 Ω

Gain

30 dB

Amplification (UHF)

30 dB

Amplification (VHF)

30 dB

Reception range (VHF)

87,5 - 230 MHz

Reception range (UHF)

470 - 862 MHz

Wall mounting kit

yes

Quantity per pack

1 Stück(e)

LTE/GSM filter

yes

Package weight

610 g

Documents & Downloads

Datasheet

Datasheet 3804694 Telestar ANTENNA 3 LTE DVB-T/T2 active planar antenna White

User & Safety Instructions

User & Safety Instructions 3804694 Telestar ANTENNA 3 LTE DVB-T/T2 active planar antenna White

Description

The Telestar ANTENNA 3 LTE is suitable Ideal for the reception of digital-terrestrial TV programs of the new DVB-T2 standard as well as analogue FM radio programs. The active antenna disposes of a high amplification with low noise level, in addition a built-in LTE filter for an improved reception power. The ANTENNA 3 LTE can be used as an outdoor and indoor antenna, power is supplied either via the feed voltage of the receiver or via an external power supply.

This text is machine translated.

Features

  • Specifications:
  • Reception ranges VHF 87.5 – 230 MHz, UHF 470 – 790 MHz; FM 87.5 – 108 MHz, DAB+ 174 – 230 MHz
  • Also suitable for DAB+ reception
  • Amplification: Up to 28 dB
  • Output level: Max. 100 dBμV
  • Impedance: 75 Ohm
  • Noise factor: Less than 3 dB
  • Power supply: 5 V via DVB-T receiver or 12 V via external power supply
  • Power supply 230 V AC 50 Hz, 12 Volt DC (200 mA)
  • LTE filter: To reduce unwanted LTE, GSM and DECT signals
  • UV resistant and waterproof case
  • Installation: Simple installation (can also be used as indoor antenna)
  • Dimensions / Weight:
  • Dimensions (W/H/D) 11.0 × 20.3 × 13.8 cm
  • Weight: 538 g.

Scope of delivery

  • Telestar antenna 3 LTE
  • External 12 V power supply
  • Stand/mast holder
  • Clamp with wing screws for mast attachment
  • Power supply switch
  • Coaxial cable (3 m)
  • User manual
