Testboy TV 333 Lux meter 0 - 100000 lx
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Luxmeter TV 333
- 0 - 100 000 Lux
Technical specifications
- Measurement rate: 0,4s
- Operating temperature: -0 to + +50 °C.
- Power supply: 9 V PP3
- Dim
(L x W x H) 30 x 130 x 72 mm
- Height
72 mm
- Length
30 mm
- Width
130 mm
- Illuminance reading range
0 - 100000 lx
Manufacturer's standards (no certificate)
- Display
LCD
- Reading type
Light intensity
- Illuminance reading range (max.)
100000 lx
- Illuminance reading range (min.)
0 lx
- Weight
40 g
- Product type
Lux meter
Documents & Downloads
Datasheet
Datasheet 420005 Testboy TV 333 Lux meter 0 - 100000 lx
User & Safety Instructions
User & Safety Instructions 420005 Testboy TV 333 Lux meter 0 - 100000 lx
Description

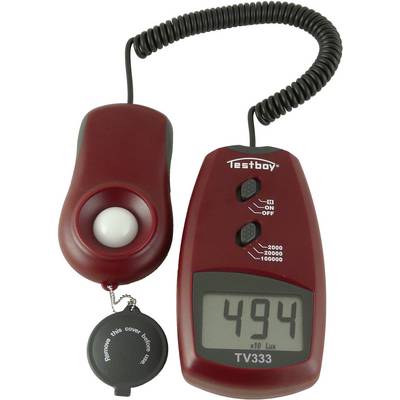

The Testboy TV 333 is a digital luxmeter in a handy and robust plastic housing. The 18 mm high and high-contrast LC-display enables a fast, secure and accurate reading of the determined light intensity. Through the use of a silicon photodiode behind a large Difuser, which by means of a spiral cable on the device can be fully from all positions the light intensity measurement. The digital Luxmeter Testboy TV 333 is a highly accurate meter for accurate determination of the intensity of illumination and the lichteinfalls a defined area. The measurement is done via a foto-element, whereby the measurement result in four measuring ranges on the LC display.
This text is machine translated.
This text is machine translated.
Features
- Spiral Cables
- Measurement range: 0 - 100 000 Lux in three stages
- Removable protective sensor
- IEC/EN 61010-1 (DIN VDE 0411).
Scope of delivery
- Removable protective sensor
- Battery
- Bag
- User manual.
