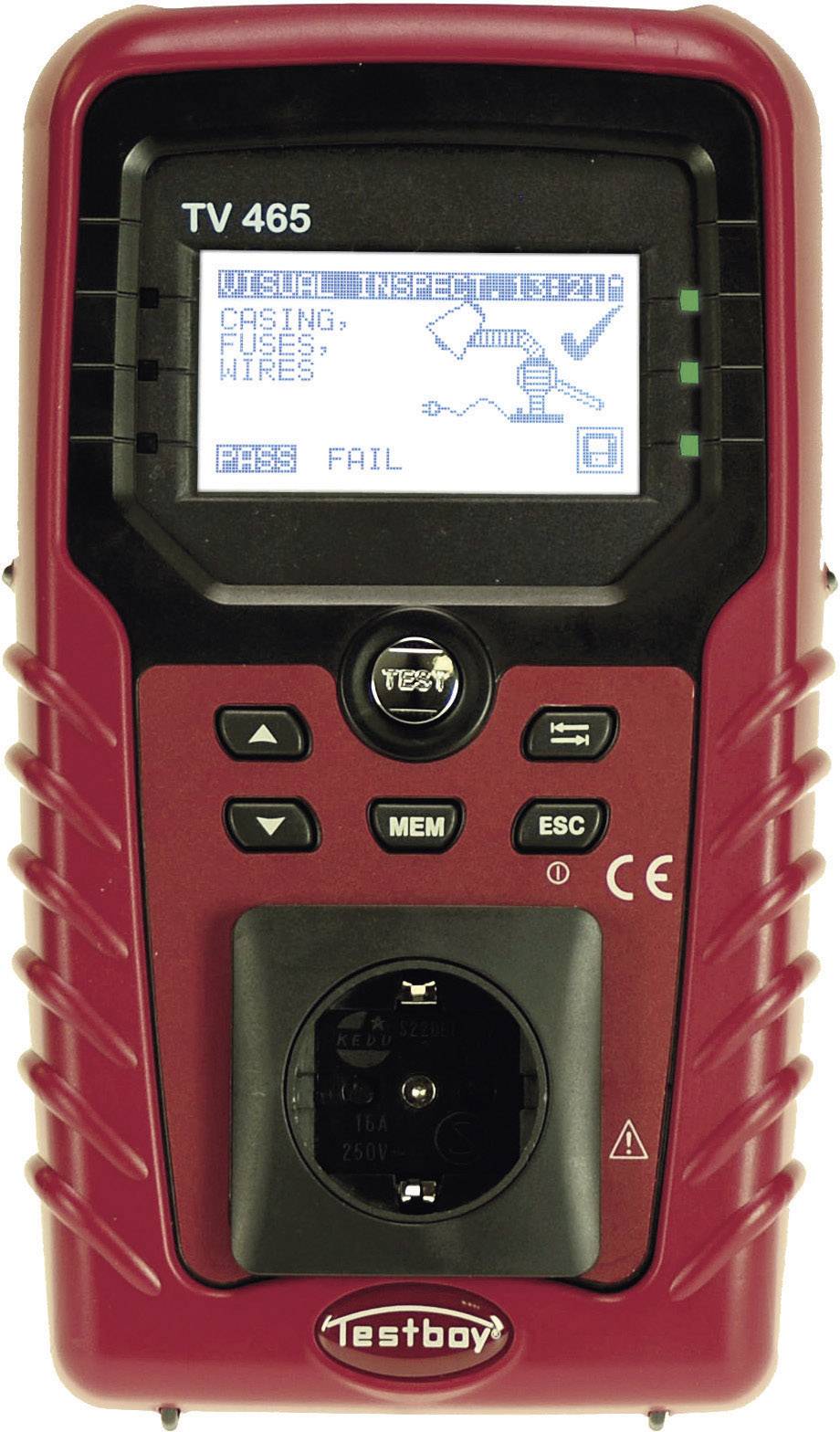

Testboy TV465 Equipment tester VDE standard 0701-0702
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 955.00 / piece)
€ 955.00
incl. VAT
Only 3 Piece(s) available
Highlights & Details
Device tester Testboy® TV 465
- Testing according to VDE0701-0702, BGV A3, BetrSichV, Austrian Federal Standard E 8701/E 8702
- VDE pre-programd or self-defined test sequences of device classes I, II, III.
- Integrated compensation module
- Automatic selection of measuring range
- Large LC-display with integrated background lighting
- Good / bad statements
Technical specifications
- Protective conductor resistance: 0 Ω to 1999 Ω
- Insulation resistance: 0.00 MΩ to 199.9 Ω
- Equivalent leakage current 0.00 mA to 20.0 mA
- Measurement voltage 0 V to 300 V.
- Test voltage < 50 V / AC
- Product type
Equipment tester
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Interfaces
USB
RS232
- Dim
(L x W) 235 mm x 140 mm
- Weight
1.195 kg
- Reading range (VDE)
Earth leakage resistance
Insulation resistance
Leakage current
Voltage
- DIN standard
DIN EN 62638
- Display type
Digital (LCD)
- Width
140 mm
- Length
235 mm
- Test procedure
automated
- Voltage supply
Battery
- Memory
No
- Type
TV465
- VDE standard
0701-0702
- Depth
80 mm
- Interfaces
RS232 and USB
- Reading category
CAT II 300V
- Standards
VDE0701-0702, BGV A3, BETRSICHV, EVE/NORM E 8701/E 8702
Documents & Downloads
Datasheet
Datasheet 101743 Testboy TV465 Equipment tester VDE standard 0701-0702
User & Safety Instructions
User & Safety Instructions 101743 Testboy TV465 Equipment tester VDE standard 0701-0702
Description
The Testboy® TV 465 is a device tester independant of the mains for testing mobile devices according to DIN VDE 0701-0702. Due to its easy operation and handling, electrical devices / tools with ON / OFF switch, heat devices, motor devices, lights, multiple distributors and household appliances can be checked quickly and easily. The advantages of the device include good/bad statements as well as VDE pre-programd or self-defined test sequences.
This text is machine translated.
This text is machine translated.
Features
- Testing according to VDE0701-0702, BGV A3, BetrSichV, Austrian Federal Standard E 8701/E 8702
- Preset limit values according to VDE standard
- VDE pre-programd or self-defined test sequences of device classes I, II, III.
- Integrated compensation module
- Automatic selection of measuring range
- Menu-driven help function
- Large LC display with backlight
- Battery capacity sufficient for approx. 2600 test samples (depending on the number of measurements)
- Integrated charger
- Quick test possible.
Scope of delivery
- Bag
- Test lead with test probe and alligator clip
- IEC connection cable
- Calibration certificate
- Charging power supply
- NiMH rechargeable batteries
- User manual.
Hints
Interface can be used only with optional memory expansion, the factory installed.
