Testec TT-SI 8010A Differential probe 70 MHz 100:1, 1000:1
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,511.76 / piece)
€ 1,511.76
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Active differential probe TT-SI 8010A
- 100:1, 1000:1
- Bandwidth 70 MHz
Technical specifications
- DC accuracy ±2
- Slew rate
5 ns
- Input capacity
5 pF
- Input resistance
20 M Ω
- Divider voltage ratio
100:1
1000:1
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
- Bandwidth
70 MHz
- Weight
230 g
- Product type
Differential probe
Documents & Downloads
Datasheet
Datasheet 2255392 Testec TT-SI 8010A Differential probe 70 MHz 100:1, 1000:1
Datasheet 2255392 Testec TT-SI 8010A Differential probe 70 MHz 100:1, 1000:1
User & Safety Instructions
User & Safety Instructions 2255392 Testec TT-SI 8010A Differential probe 70 MHz 100:1, 1000:1
Information
Information 2255392 Testec TT-SI 8010A Differential probe 70 MHz 100:1, 1000:1
Description
The active differential probe TT-SI 8010A enables safe and accurate high-voltage measurements between two voltage points, whereby none is related to mass. This probe is designed for a variety of measurements with up to 70MHz / ± 7000V and compatible with grounded oscilloscopes from all major manufacturers.
This text is machine translated.
This text is machine translated.
Features
- Bandwidth: 70MHz
- division factor: x100 / x1000
- DC accuracy: ±2
- maximum input voltages:
- Differential:
- ±700V (DC + AC peak) @ x100
- ±7000V (DC + AC peak) @ x1000
- common mode:
- ±7000V (DC + peak AC)
- to earth:
- 1000Vrms CAT III / 2300Vrms
- safety standard: IEC1010-031:2015

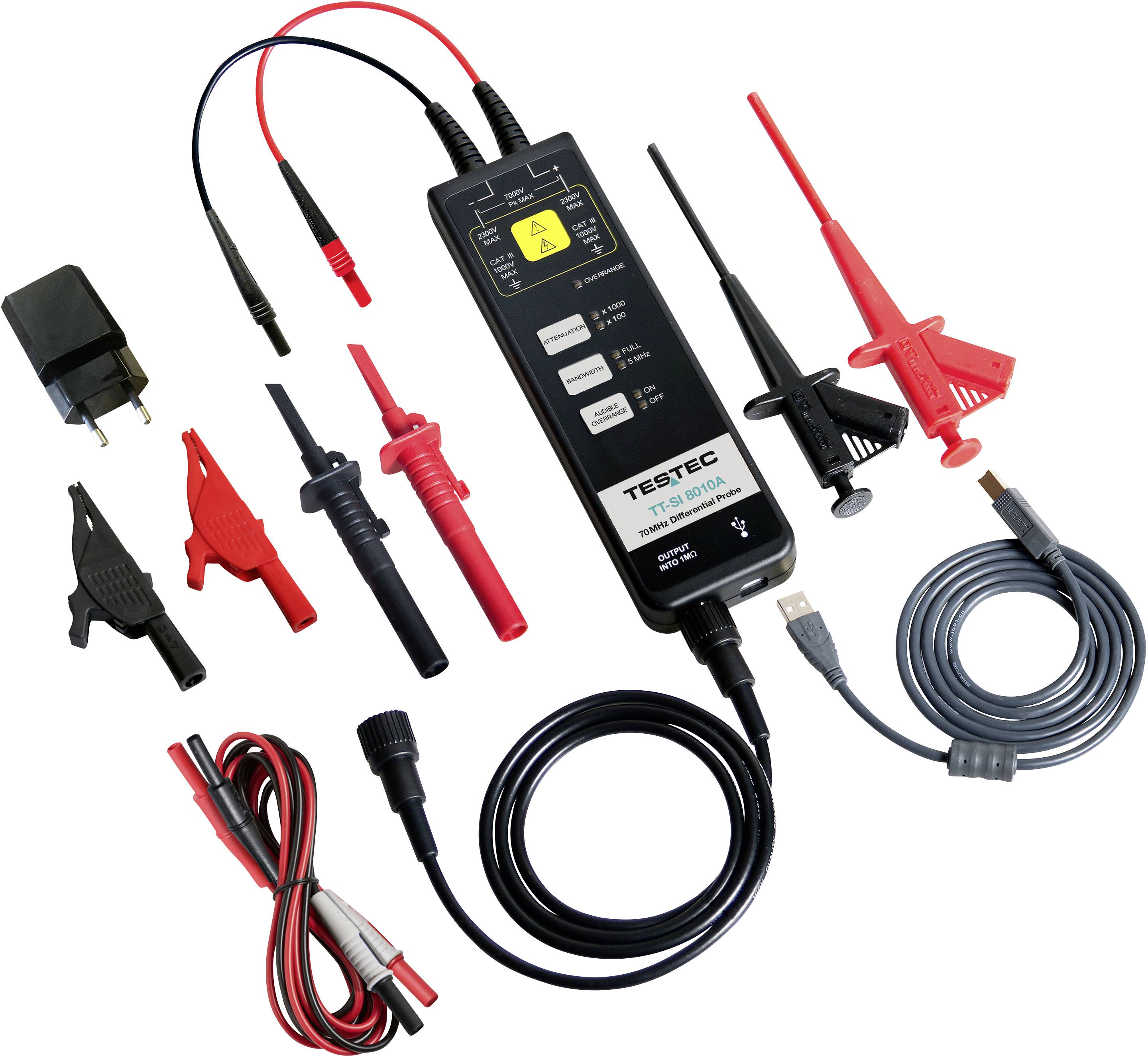

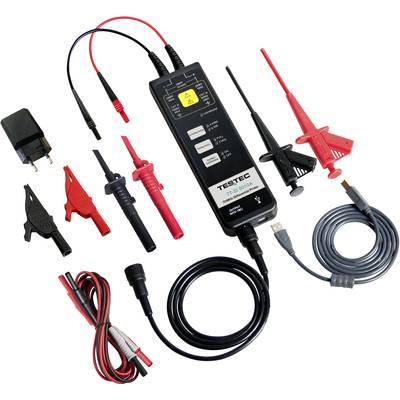

Scope of delivery
- 2 x test leads with insulated banana plug 4mm (red & black)
- 2 x clamp hooks (red & black)
- 2 x Clamp tweezers (red & black)
- 2 x alligator clips (red & black)
- 1 x insulated BNC test lead 100cm
- 1 x USB power supply cable
- 1 x power adapter 220V EU version
