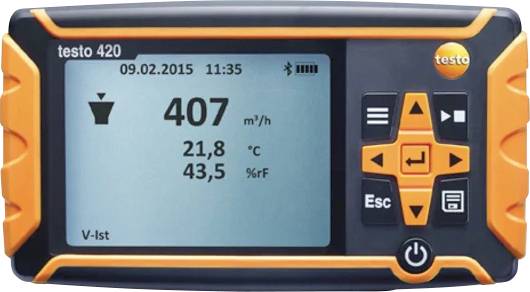

A digital device screen shows '407 m³/h, 21.8°C, 43.5% rF', dated '09.02.2015 11:35,' with navigation buttons on the right.

A digital device screen shows '407 m³/h, 21.8°C, 43.5% rF', dated '09.02.2015 11:35,' with navigation buttons on the right.

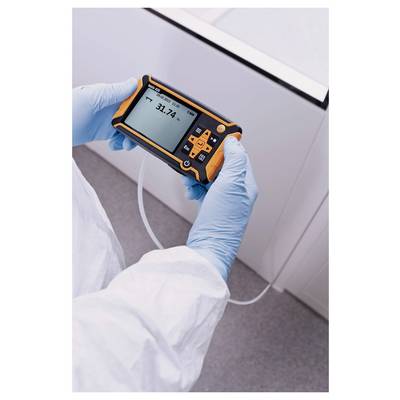

A person in protective gear holds a digital device displaying '31.2°C', possibly measuring temperature, connected to tubing in a lab setting.

A person using a handheld device to measure air quality in a duct with reflective insulation. The device displays a reading of '4753'.

1/3

testo

Fast track dispatch on Thu, 24 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 920.17 / piece)

€ 920.17

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

testo 420 - Differential pressure meter for 0...120 Pa

Differential pressure measurement, e.g. for testing the filters of air-conditioning and ventilation systems
Calculation of flow speed and volume flow using tailpipe
Handy device with large display and comfortable menu navigation
Save measured data for analysis and documentation

Technical specifications

Measurement range differential pressure -120 to +120 Pa
Measurement range of absolute pressure 700 to 1100 hPa
Measurement range of air flow +0.1 to +14 m/s
Operating temperature -5 to +50 °C
Interfaces Micro USB
Memory 2 GB (internal)

Product type: Differential pressure gauge

Reading range: -120, 0.1, 700 - 120, 14, 110 Pa, m/s, hPa

Unit of measurement: Pressure

Pneumatic connection: Connection for pressure measurement (hoses)

: Manufacturer's standards (no certificate)

Display range: Digital, 3.5" dot matrix, with lighting

Print resolution: 0.001 Pa

Basic accuracy: 2 %

Sensor: Piezoresistive (for differential pressure)

Dim: (L x W x H) 150 x 85 x 35 mm

Resolution: 0.1 hPa

Stream resolution: 0.01 m/s

Accuracy: 3 hPa

Reading range (max.): 120 Pa
14 m/s
110 hPa

Reading range (min.): -120 Pa
0.1 m/s
700 hPa

Width: 85 mm

Height: 35 mm

Length: 150 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 3557621 testo 0560 0420 testo 420 - Differenzdruckmessgerät für 0...120 Pa Differential pressure gauge Pressure -120, 0.1, 700 -

Description

Use the testo 420 differential pressure gauge for simple and efficient filter testing. With this measuring device the flow speed and volume flow can be measured without any problem together with a dust pipe in the ventilation duct.

This text is machine translated.

Scope of delivery

Differential pressure meter testo 420
Batteries
Calibration record

System requirements

Requires iOS 12.0 / Android 6.0 or later
