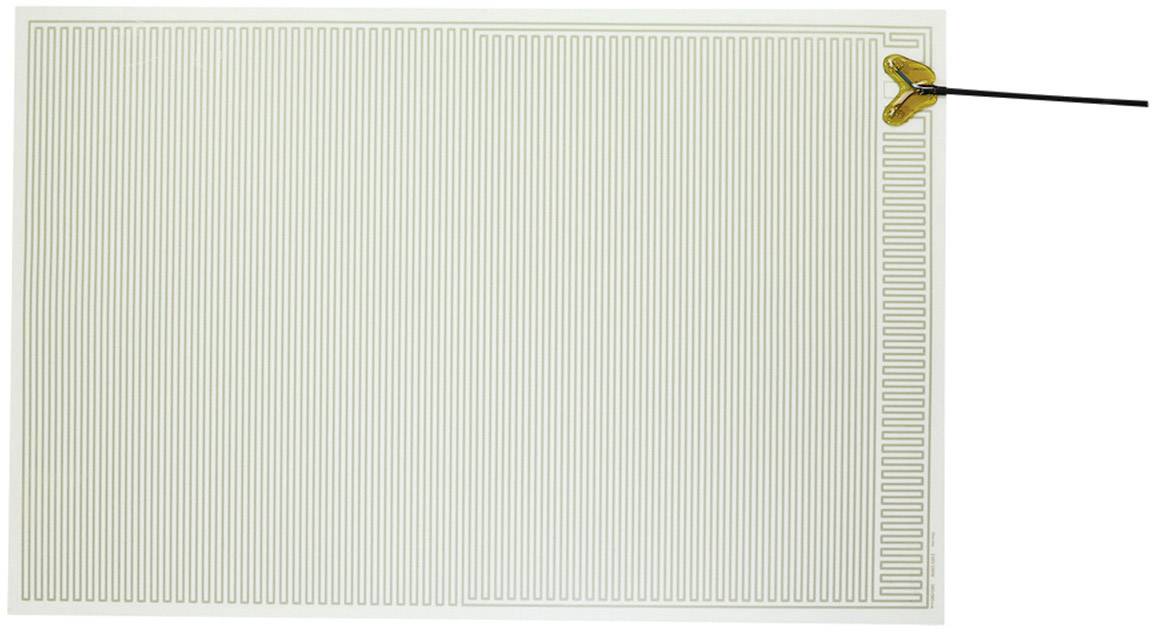

Name: Thermo TECH Polyester Heating foil self-adhesive 230 V AC 100 W IP rating IPX4 (L x W) 580 mm x 380 mm
Brand: Thermo TECH
SKU: 1216675
Availability: BackOrder

Highlights & Details

Heating film, self-adhesive

Technical specifications

Cable type: H03VVH2-F 2 x 0.75 mm²
Height at the connection: 5 mm

Product type: Heating foil

Features: self-adhesive

Operating voltage: 230 V AC

: 100 W

Material: Polyester

Material thickness: 0.4 mm

Connection: Open end cable

Lead length: 50 cm

: IPX4

Surface temperature: 45 °C

Length: 580 mm

Width: 380 mm

Dim: (L x W) 580 mm x 380 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 1216675 Thermo TECH Polyester Heating foil self-adhesive 230 V AC 100 W IP rating IPX4 (L x W) 580 mm x 380 mm

User & Safety Instructions

User & Safety Instructions 1216675 Thermo TECH Polyester Heating foil self-adhesive 230 V AC 100 W IP rating IPX4 (L x W) 580 mm x 380 mm

Description

Heating foil made from Polyester with self adhesive rear side, splice- and rupture proof, suitable for universal application areas. To protect surfaces, equipment, housings, circuits, even various fluids against freezing temperatures. Highest Security- and performance quallity. With sealed connection cable.

This text is machine translated.

Hints

Due to high heating power, in relation to the surface, the heating film depending on the situation, without sufficient cooling or temperature control, overheat and be damaged! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
