Name: Thermo TECH Polyester Heating foil self-adhesive 24 V DC, 24 V AC 10 W IP rating IPX4 (L x W) 400 mm x 45 mm
Brand: Thermo TECH
SKU: 1216635
Availability: InStock

Highlights & Details

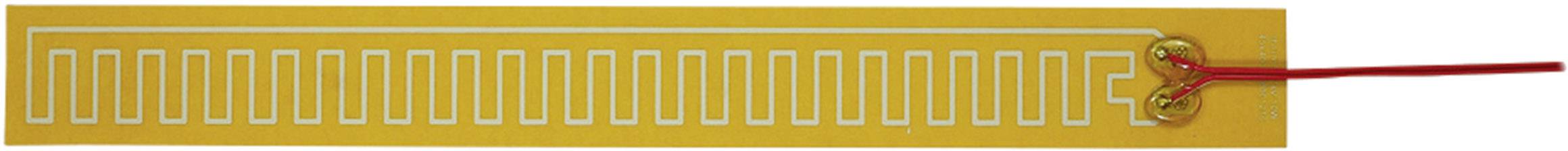

Polyester heating film, self-adhesive

Technical specifications

Cable type: FL 2 x 0.38 mm²
Height at the connection: 5 mm

Product type: Heating foil

Features: self-adhesive

Operating voltage: 24 V DC
24 V AC

: 10 W

Material: Polyester

Material thickness: 0.4 mm

Connection: Open end cable

Lead length: 50 cm

: IPX4

Surface temperature: 50 °C

Length: 400 mm

Width: 45 mm

Dim: (L x W) 400 mm x 45 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 1216635 Thermo TECH Polyester Heating foil self-adhesive 24 V DC, 24 V AC 10 W IP rating IPX4 (L x W) 400 mm x 45 mm

User & Safety Instructions

User & Safety Instructions 1216635 Thermo TECH Polyester Heating foil self-adhesive 24 V DC, 24 V AC 10 W IP rating IPX4 (L x W) 400 mm x 45 mm

Description

Heating foil made from Polyester with self adhesive rear side, splice- and rupture proof, suitable for universal application areas. To protect surfaces, equipment, housings, circuits, even various fluids against freezing temperatures. Highest Security- and performance quallity. With sealed connection cable.

This text is machine translated.

Hints

Due to high heating power, in relation to the surface, the heating film depending on the situation, without sufficient cooling or temperature control, overheat and be damaged! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.

Description

Heating foil made from Polyester with self adhesive rear side, splice- and rupture proof, suitable for universal application areas. To protect surfaces, equipment, housings, circuits, even various fluids against freezing temperatures. Highest Security- and performance quallity. With sealed connection cable.

This text is machine translated.

Hints

Due to high heating power, in relation to the surface, the heating film depending on the situation, without sufficient cooling or temperature control, overheat and be damaged! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
