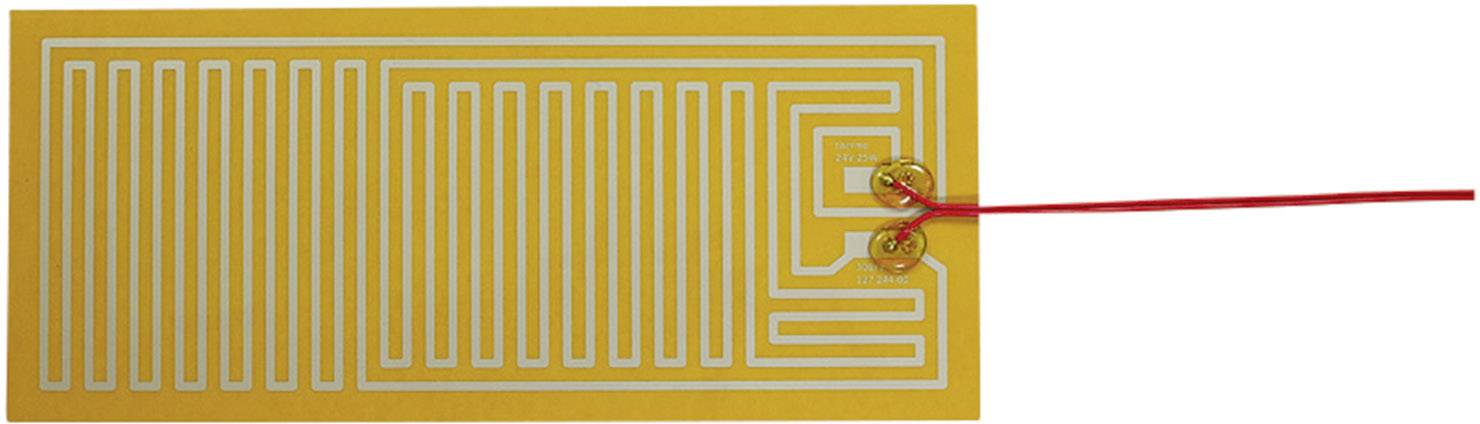

Name: Thermo TECH Polyester Heating foil self-adhesive 24 V DC, 24 V AC 25 W IP rating IPX4 (L x W) 300 mm x 130 mm
Brand: Thermo TECH
SKU: 1216641
Availability: InStock

Highlights & Details

Polyester heating film, self-adhesive

Technical specifications

Cable type: FL 2 x 0.38 mm²
Height at the connection: 5 mm

Product type: Heating foil

Features: self-adhesive

Operating voltage: 24 V DC
24 V AC

: 25 W

Material: Polyester

Material thickness: 0.4 mm

Connection: Open end cable

Lead length: 50 cm

: IPX4

Surface temperature: 50 °C

Length: 300 mm

Width: 130 mm

Dim: (L x W) 300 mm x 130 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 1216641 Thermo TECH Polyester Heating foil self-adhesive 24 V DC, 24 V AC 25 W IP rating IPX4 (L x W) 300 mm x 130 mm

User & Safety Instructions

User & Safety Instructions 1216641 Thermo TECH Polyester Heating foil self-adhesive 24 V DC, 24 V AC 25 W IP rating IPX4 (L x W) 300 mm x 130 mm

Description

Heating foil made from Polyester with self adhesive rear side, splice- and rupture proof, suitable for universal application areas. To protect surfaces, equipment, housings, circuits, even various fluids against freezing temperatures. Highest Security- and performance quallity. With sealed connection cable.

This text is machine translated.

Hints

Due to high heating power, in relation to the surface, the heating film depending on the situation, without sufficient cooling or temperature control, overheat and be damaged! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
