TOOLCRAFT Air hose recoiler 10 m 20 bar Wall mount, Ceiling mount
EAN:
Part number:
Item no:
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Highlights & Details
Compressed air hose reel 10 m
- Automatic Retraction
- wall and ceiling mounting
- adjustable hose catch with hose guide
- highly flexible PVC and rubber hose
Technical specifications
- Housing L x W x H: 32 x 14 x 37 cm
- temperature range: -5 °C to 45 °C
- Product type
Air hose recoiler
- Features
Wall mount
Ceiling mount
- Length
10 m
- Connector
1/4" (6,35 mm)
- Max. operating pressure
20 bar
- Content
1 pc(s)
- Inside diameter
9.5 mm
- Outside Ø
14.5 mm
- Weight
6.2 kg
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2498122 TOOLCRAFT Air hose recoiler 10 m 20 bar Wall mount, Ceiling mount
User & Safety Instructions 2498122 TOOLCRAFT Air hose recoiler 10 m 20 bar Wall mount, Ceiling mount
User & Safety Instructions 2498122 TOOLCRAFT Air hose recoiler 10 m 20 bar Wall mount, Ceiling mount
Description
Hose reel made of robust metal can be attached to the wall or ceiling with adjustable guide arm for flexible hose guide. Compressed air hose with high bending strength at the lowest weight, as well as resistance to oils and solvents. Good behavior in low and in high temperature ranges.
Features
- Lock by pulling
- adjustable arm allows variable hose guide
- Suitable for wall and ceiling mounting
- Druckuftschlauch 10 + 1 m
- uniform roll-up mechanism
- robust metal casing.

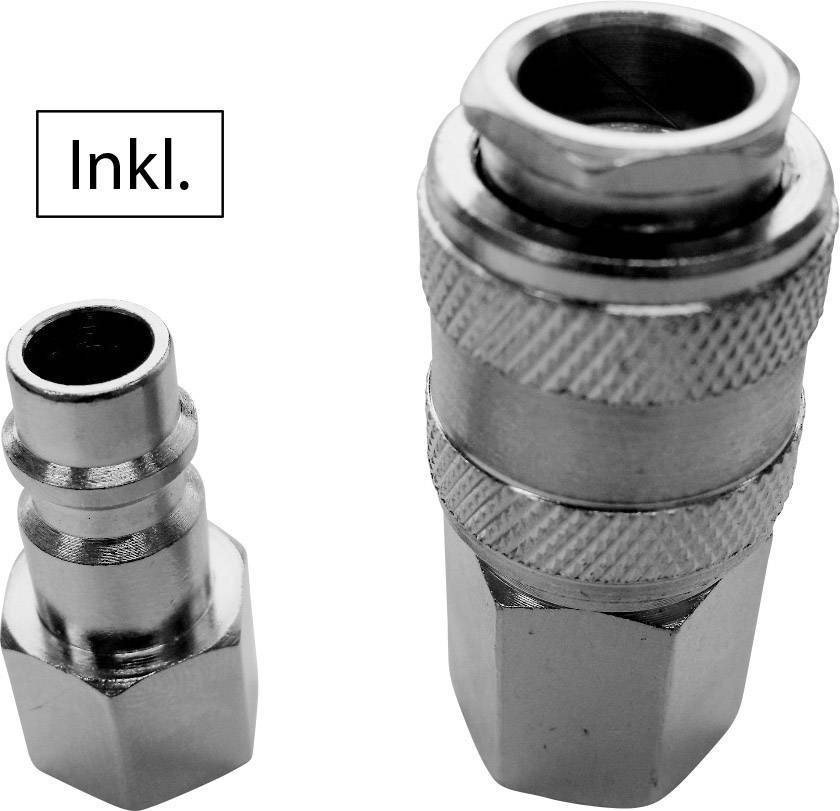

- Including Compressed air coupler
Scope of delivery
- 1 x compressed air hose reel including 10 m hose
- 1 x connection hose
- 1 x user manual
- 1 x air pressure coupling
Hints
Not for use with water. lying on the floor hoses and cables are a source of significant risk and can result in accidents. Remove the stumbling blocks in your company and help to prevent occupational accidents (UVV). Hose reel avoid such damage, since the hose, only for the work use unwound.
Including Compressed air coupler This text is machine translated.
