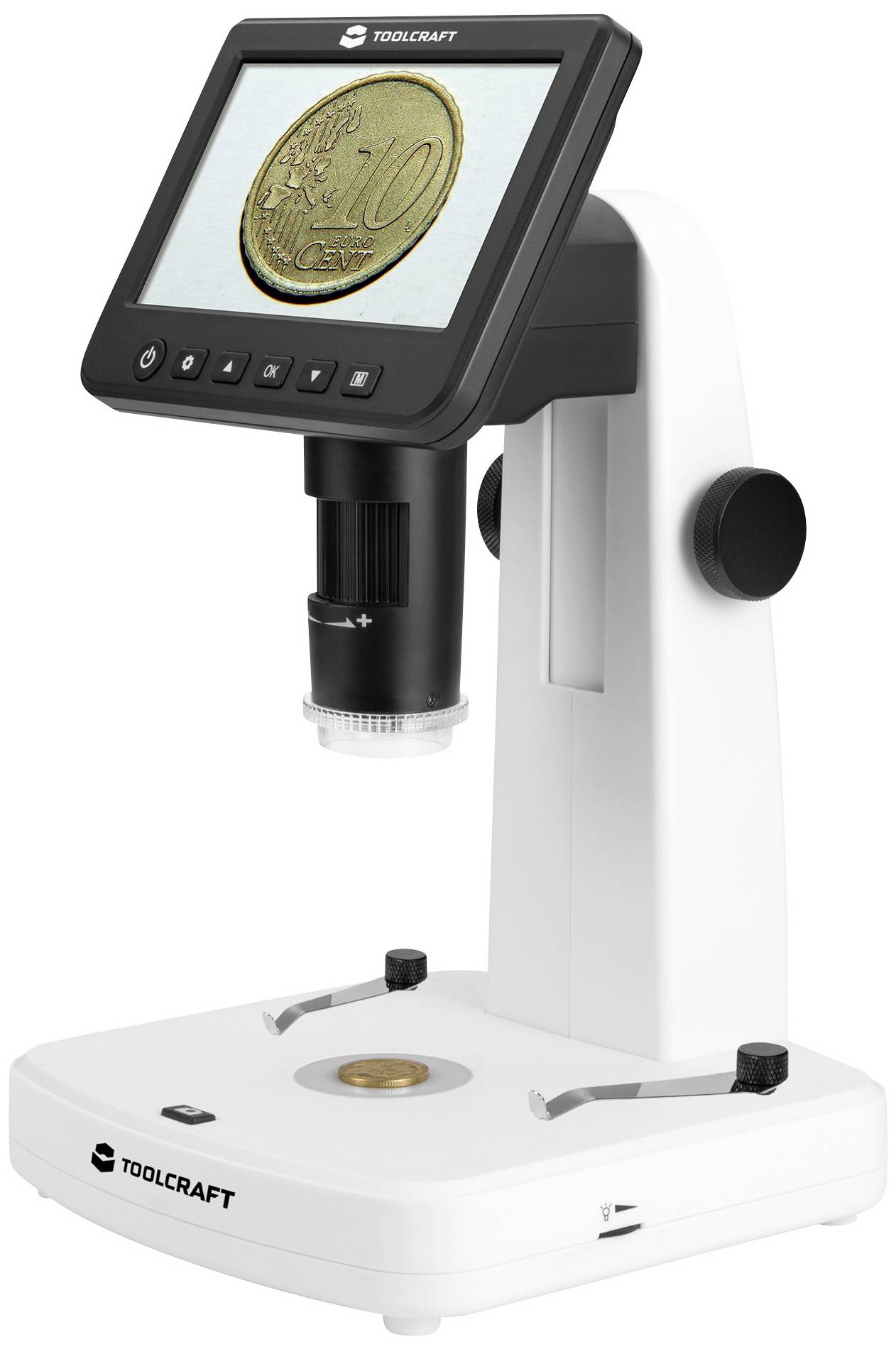

A digital microscope shows an enlarged view of a 10-cent coin on the screen.

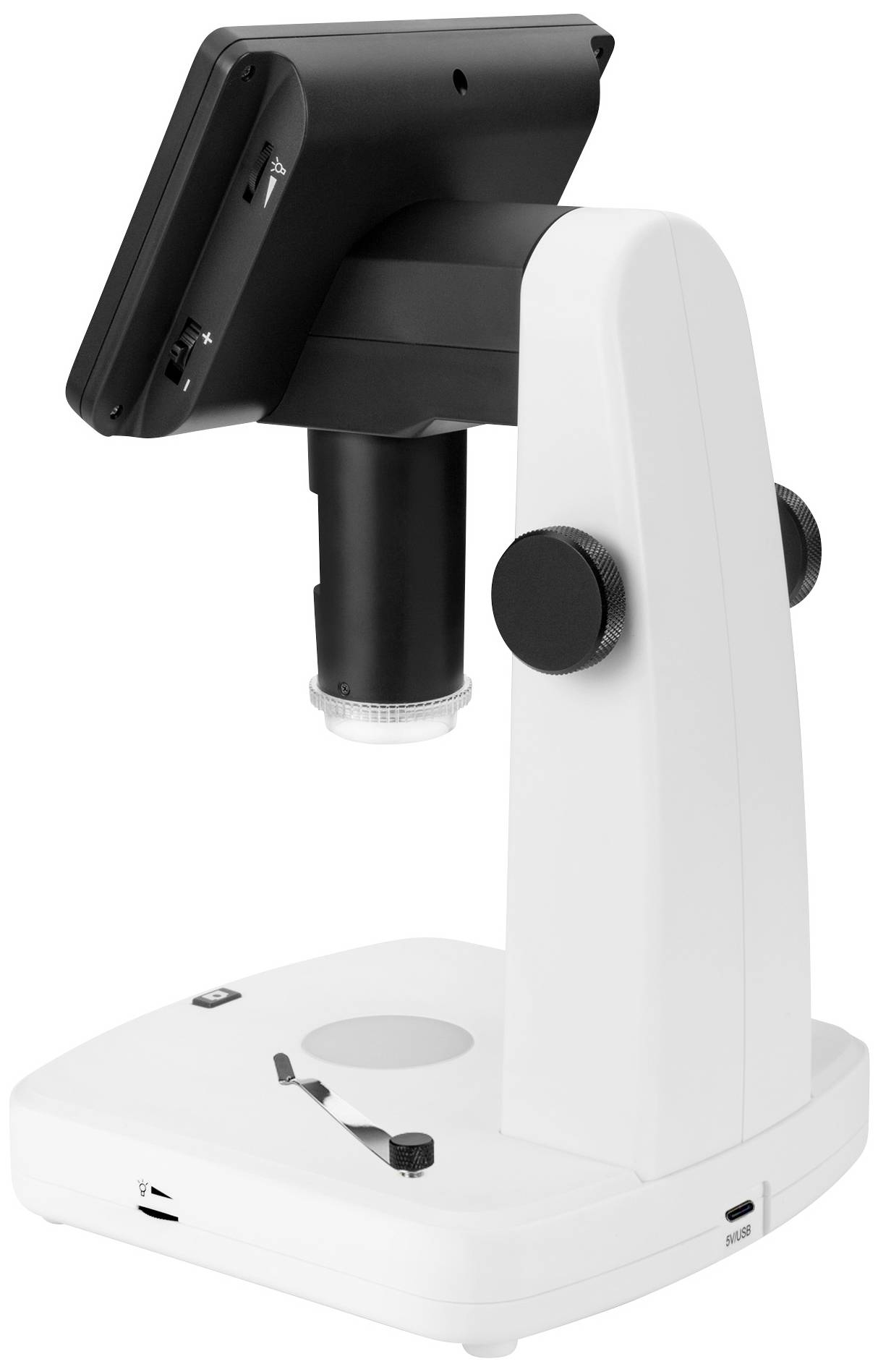

A white, digital microscope with a black screen and two adjustment knobs, suitable for scientific investigations.

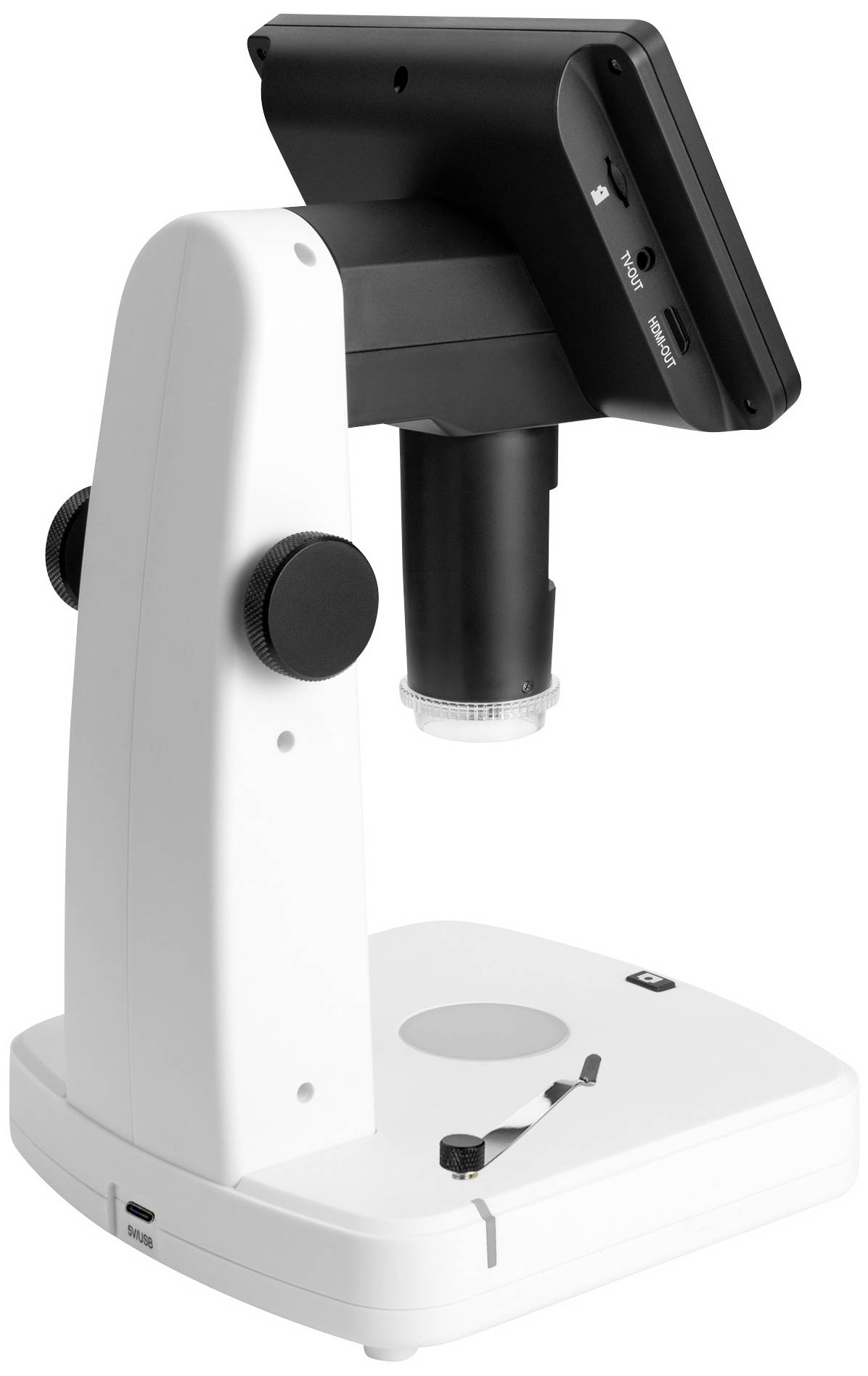

A digital microscope with a black camera head mounted on a white base. Suitable for magnifying small objects in laboratories.

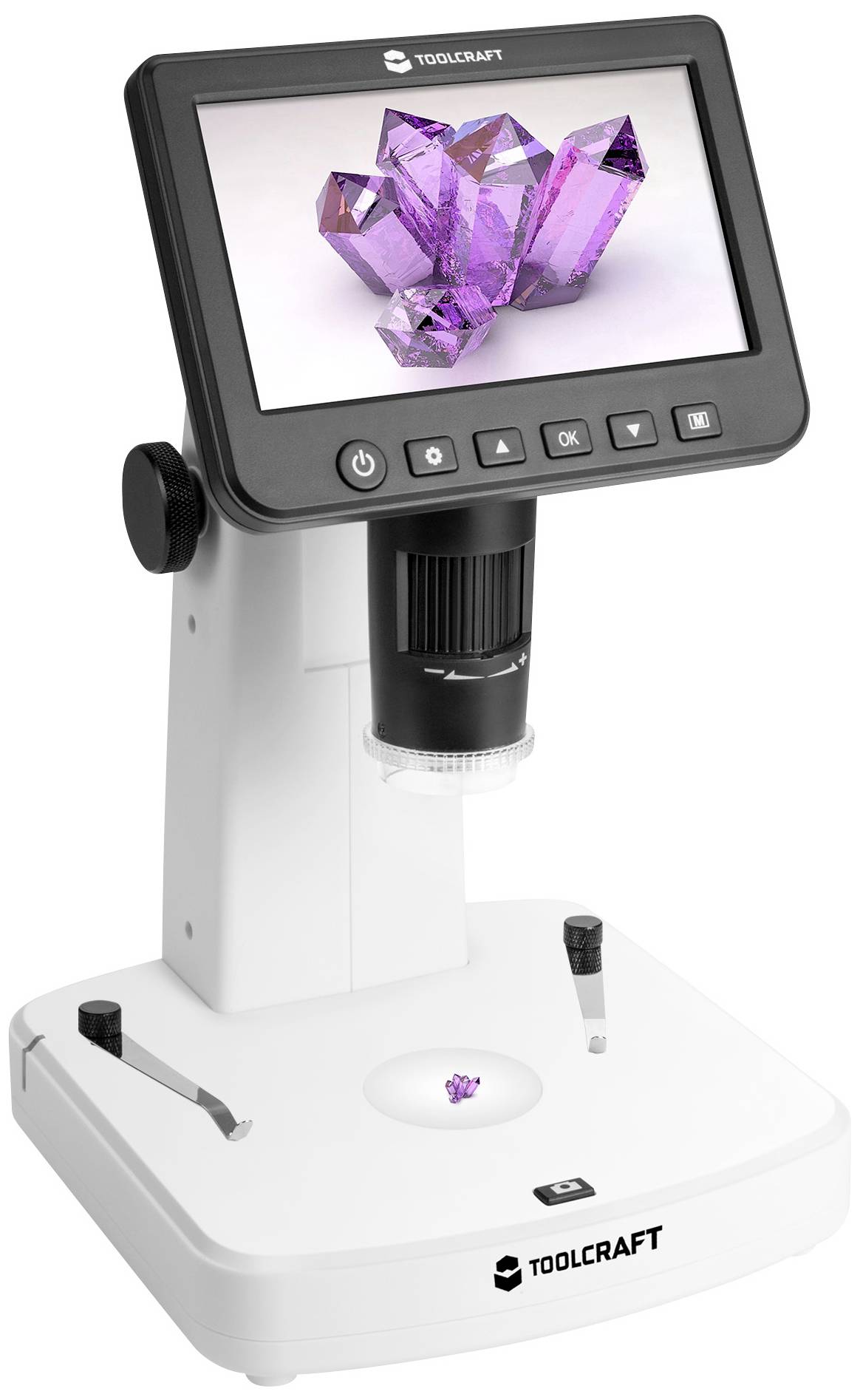

Digital microscope with screen shows an image of purple crystals. Device has control buttons and a white base.

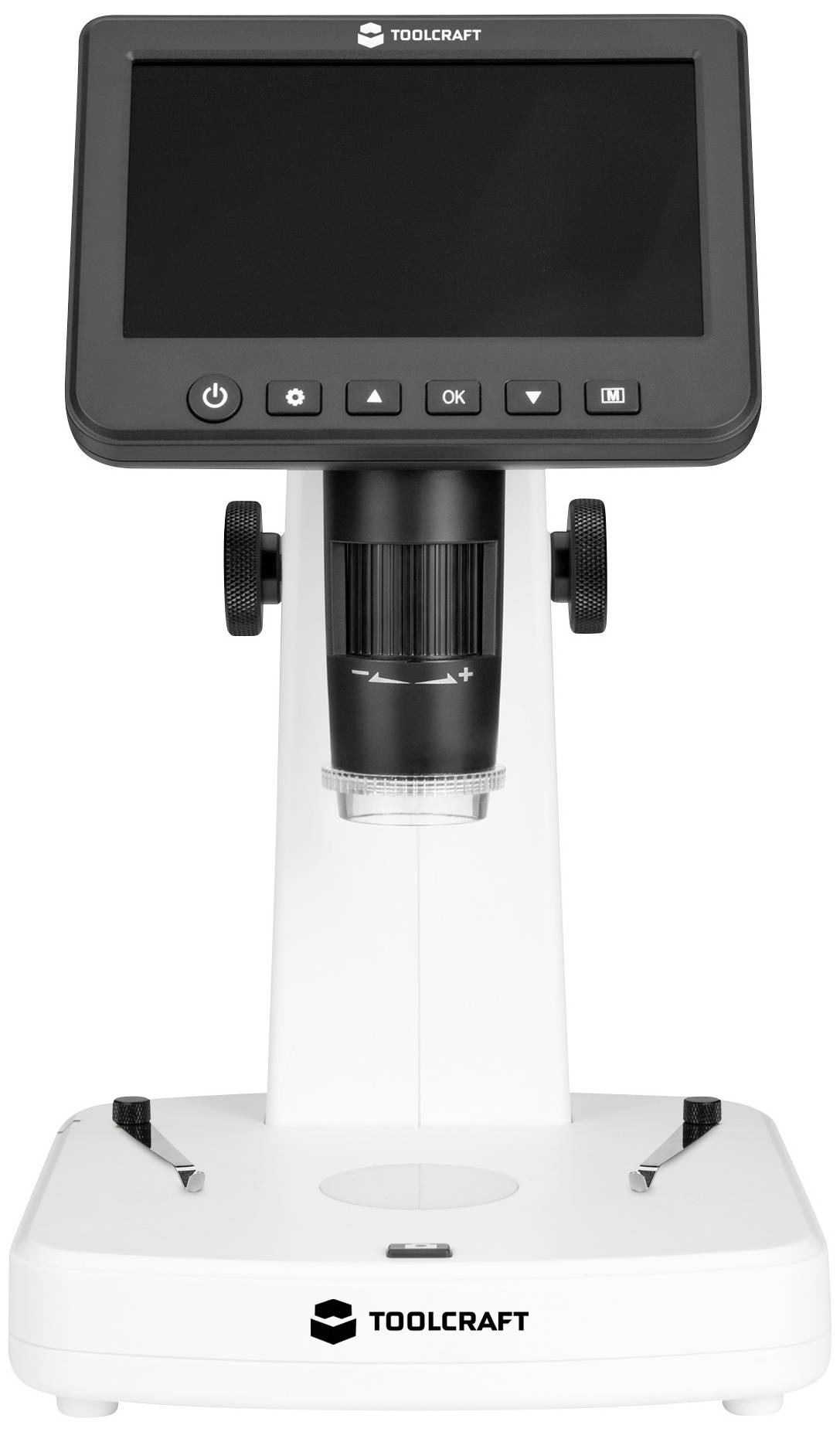

Digital microscope with large screen for viewing small objects. The screen is not displaying any content. Marked with 'TOOLCRAFT'.

Digital microscope with integrated display shows highly magnified insect. Ideal for detailed examinations in science and education.

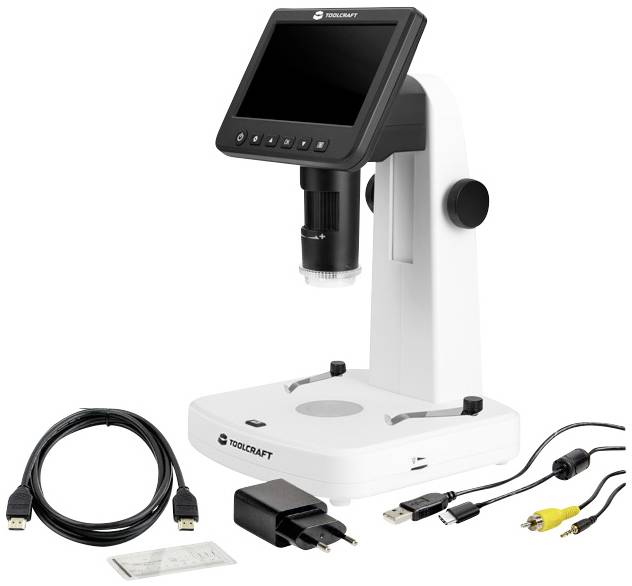

Microscope with digital screen, USB cable, charging cable and adapter on a white background. Ideal for precise magnifications.

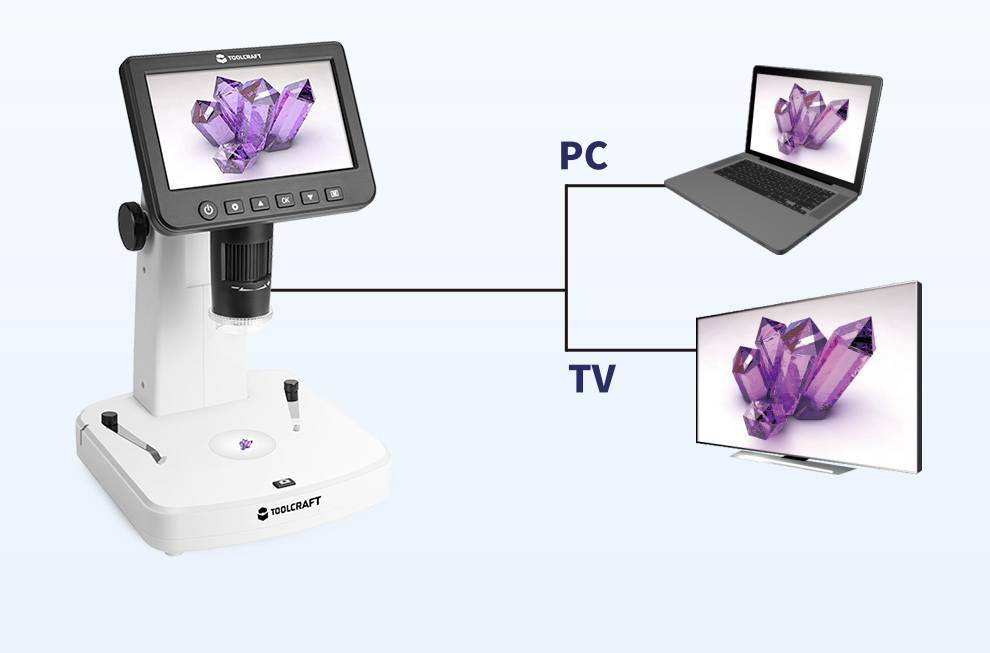

Microscope with screen showing crystal, connected to PC and television for larger display.

'5-inch IPS LCD' displays a screen with an 854x480 IPS panel for viewing from all angles. A red arrow marks the '5-inch'.

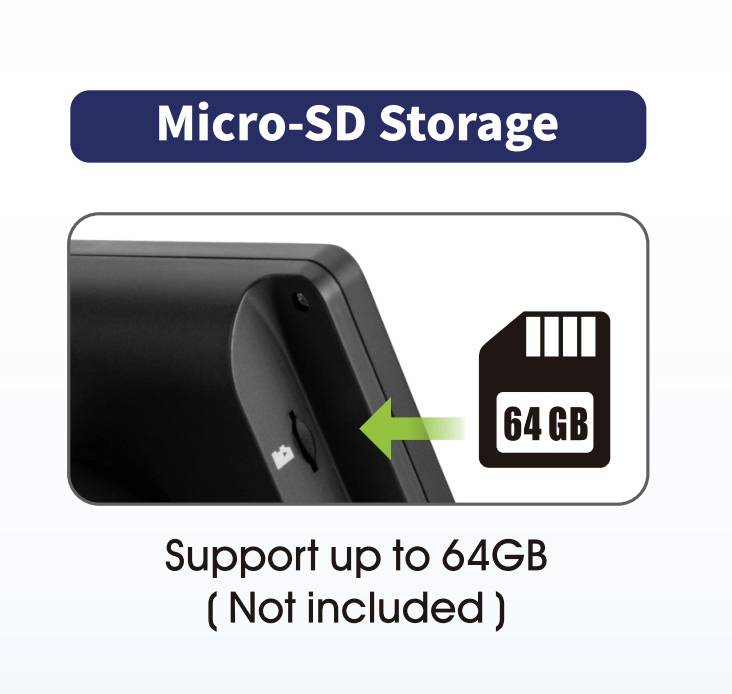

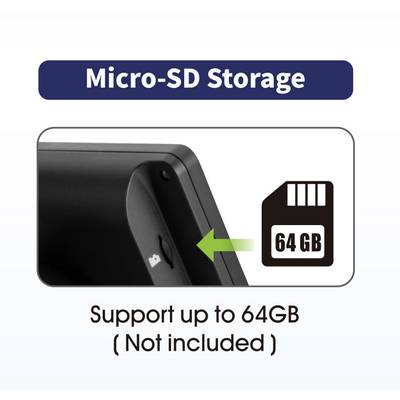

'Micro-SD Storage' shows a Micro-SD card slot. Supports up to 64GB (not included). An arrow points to the slot.

Battery-powered: Working time 3 hours, charging time 4 hours. Rechargeable battery.

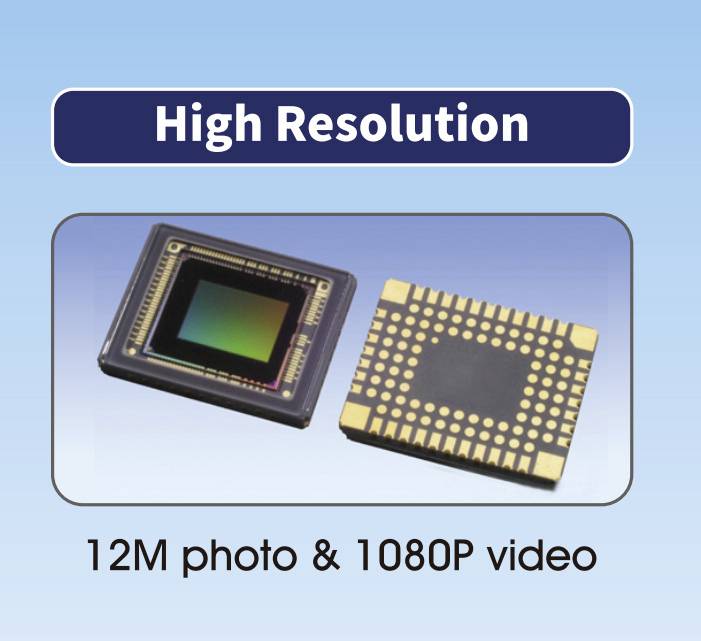

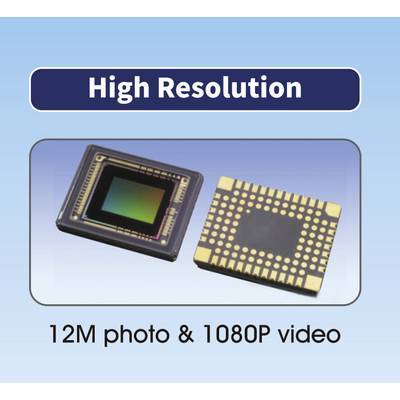

The sensor chip displays the inscription 'High Resolution' and offers 12 megapixel photo and 1080p video recordings.

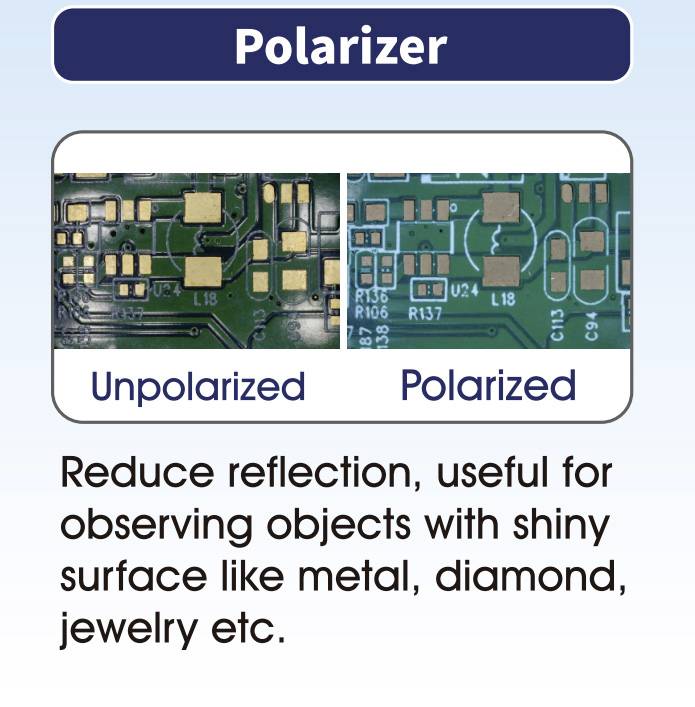

The image shows a comparison table: 'Unpolarized' on the left, 'Polarized' on the right. Underneath the text reads: 'Reduce reflection, useful for observing objects with shiny surfaces like metal, diamond, jewellery etc.'

1/14

Our service for you

Fast track dispatch on Mon, 14 Sep

101 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

Report legal concerns

Highlights & Details

LCD Digital Microscope with Polarizer

12.7 cm (5 Inch) LCD microscope
Pixels: True 3.0 MP
Magnification: 20 x - 300 x, 1200 x with digital zoom
Focus Range: 5-70 mm
Frame Rate: 30 f/s at 500 LUX brightness

Technical specifications

Product type: Digital microscope

Optical magnification (min.): 20 x

Optical magnification (max.): 300 x

Digital zoom (max.): 1200 x

Lighting type: Reflected light
Transmitted light

Operating voltage: 5 V via USB

Factory colour: White

Dim: (L x W x H) 16.5 x 15.8 x 26.7 cm

Length: 16.5 cm

Width: 15.8 cm

Height: 26.7 cm

Weight: 830 g

Features: Zoom

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3025468 TOOLCRAFT TO-9076404 LCD Digital Microscope with Polarizer 300 x Reflected light, Transmitted light

Download

Download 3025468 TOOLCRAFT TO-9076404 LCD Digital Microscope with Polarizer 300 x Reflected light, Transmitted light

Description

The TOOLCRAFT LCD digital microscope with polarizer has a maximum 1200-fold digital enlargement and a max. 300-fold optical magnification.

This text is machine translated.

Features

1x BL-5C 3.7 V 1020 rechargeable battery (charges in 4.5 hrs)
Switchable polarizer (ideal for inspecting shiny objects, e.g. diamonds)
HDMI and TV cable output
Photo resolution: 12 MP / 10 MP / 8 MP / 5 MP / 3 MP / 2 MP
Video resolution: 1080 p/720 p
Storage: Micro-SD card (not included)
Light source: LEDs with adjustable brightness
Bundle software: PortableCapture Plus for Windows & Mac
OSD language: English, German, Spanish, French, Russian, Japanese, Chinese, etc.
