Testing & Power SupplyBattery ChargersModel Making Multi-Purpose Chargers

Toolkit RC RC M8AC LiPo 1-8S 20A Charger 240 V 20 A LiPolymer, LiHV, LiFe, Li-ion, LTO, NiMH

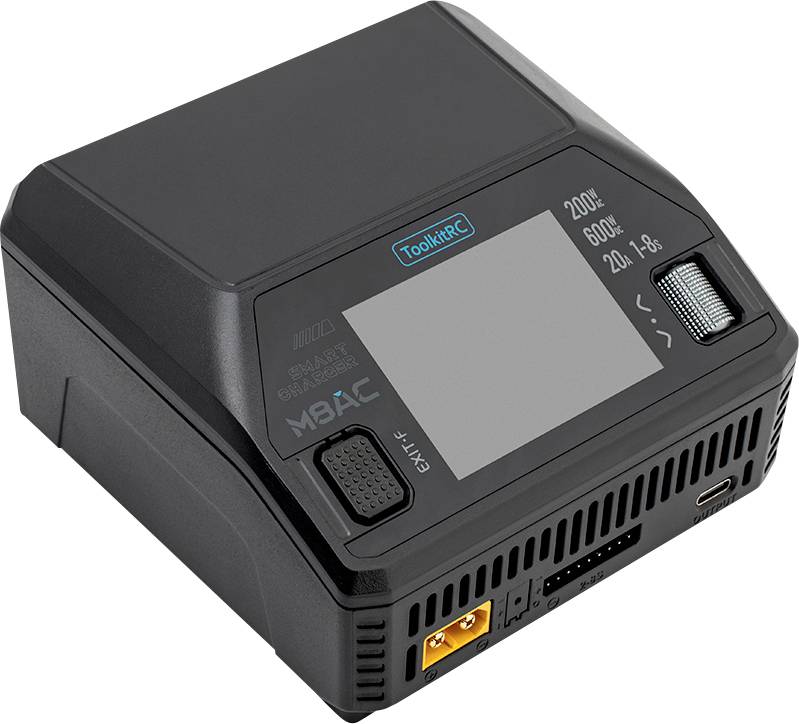

Black ToolKitRC battery charger with screen, control dial, cooling vents, and power/connectors on the front panel.

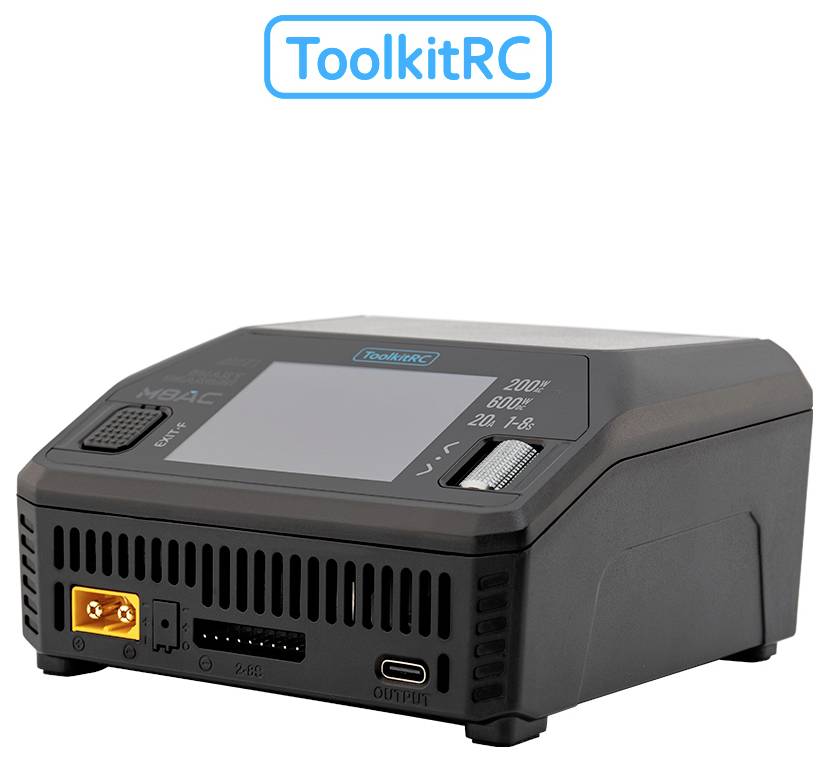

ToolkitRC battery charger/power supply unit shown in three-quarter view with touchscreen, cooling vents, and front connectors on a white background.

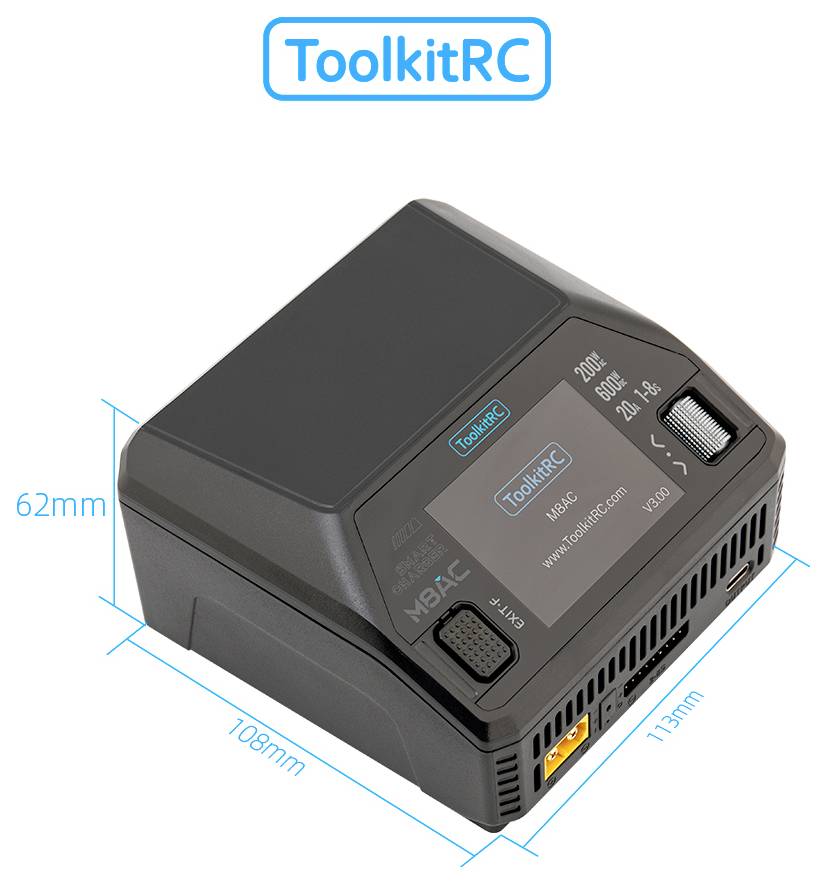

ToolkitRC electronic device shown in perspective, with dimensions labeled 62 mm high, 108 mm wide, and 113 mm deep.

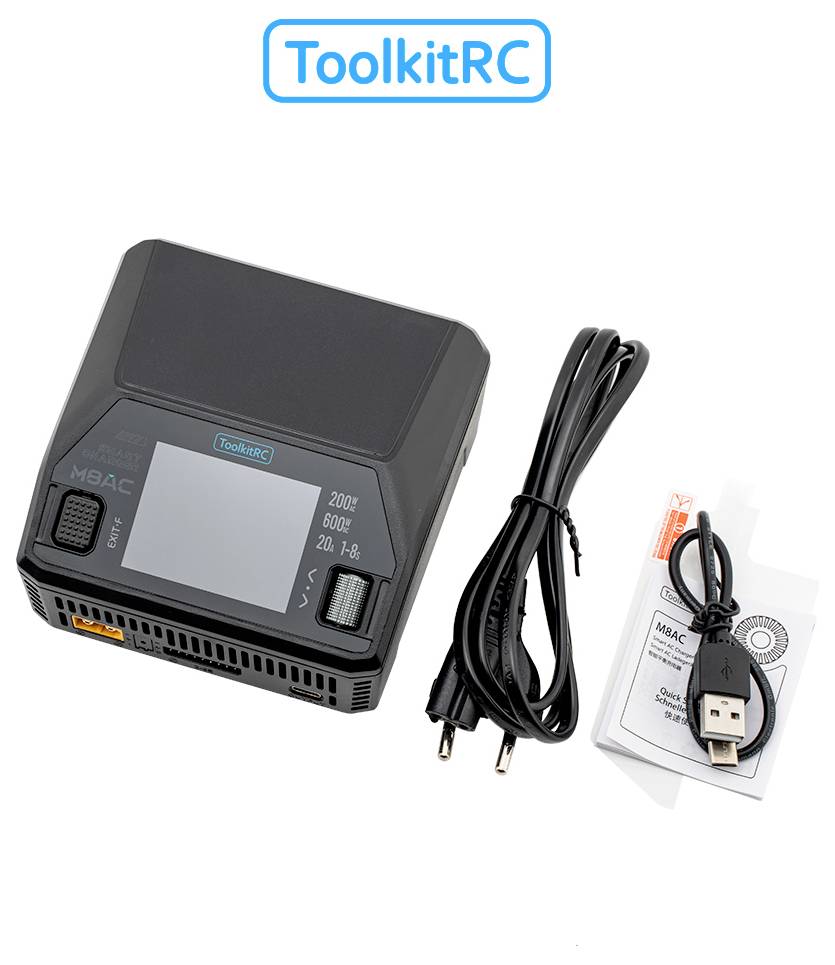

ToolkitRC battery charger with power cord and USB cable on a white background<br>
1/4
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 119.99 / piece)
€ 119.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

M8AC LiPo 1-8S 20A charger AC/DC

  • Up to 600 W (DC) or 200W (AC) charging power
  • Max. 20 A charging current
  • Wide battery support: LiPo/LiHV/LiFe/Li-Ion/LTO (1–8 S), NiMH (1–20 S), Pb (1–12 S)
  • High balancer current (1 000 mA) and balance accuracy < 0.005 V
  • 2.4″ IPS color display, clear operation
  • Fast USB-C charging up to 65 W (PD/QC etc.)
  • Destruction / Discharge mode for safe battery current storage
  • Mains supply/laboratory power supply function, servo/signal tester (PWM/PPM/SBUS)
  • Extensive protection functions & temperature-controlled fan

Technical specifications

Product type

Charger

Operating voltage

240 V

Matching rechargeable battery

LiPolymer

LiHV

LiFe

Li-ion

LTO

NiMH

Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.)

8

Suitable for (no. of NiCd/NiMH batteries) (max.)

20

Charging current (max.)

20 A

Dim

(L x W x H) 113 x 108 x 62 mm

Weight

500 g

Manufacturer part #

TK14000

Width

108 mm

Height

62 mm

Length

113 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742879 Toolkit RC RC M8AC LiPo 1-8S 20A Charger 240 V 20 A LiPolymer, LiHV, LiFe, Li-ion, LTO, NiMH

Description

The ToolkitRC M8AC is a powerful and compact AC/DC charger for up to 8S lithium batteries and more. It supplies rechargeable batteries quickly and reliably with up to 200W via the integrated power supply (AC) or up to 600W at DC input and up to 20A charging current. In addition, a 65W USB-C fast charging function as well as numerous measurement and test functions are available.

This text is machine translated.

Scope of delivery

  • 1× M8AC charger
  • 1× AC input cable
  • 1 USB cable
  • 1× Quick start instructions
  • 1× Screen protective film
