Toolkit RC ToolkitRC M6AC LiPo 1-6S 15A Charger 240 V 15 A LiPolymer, LiHV, LiFe, Li-ion, LTO, NiMH

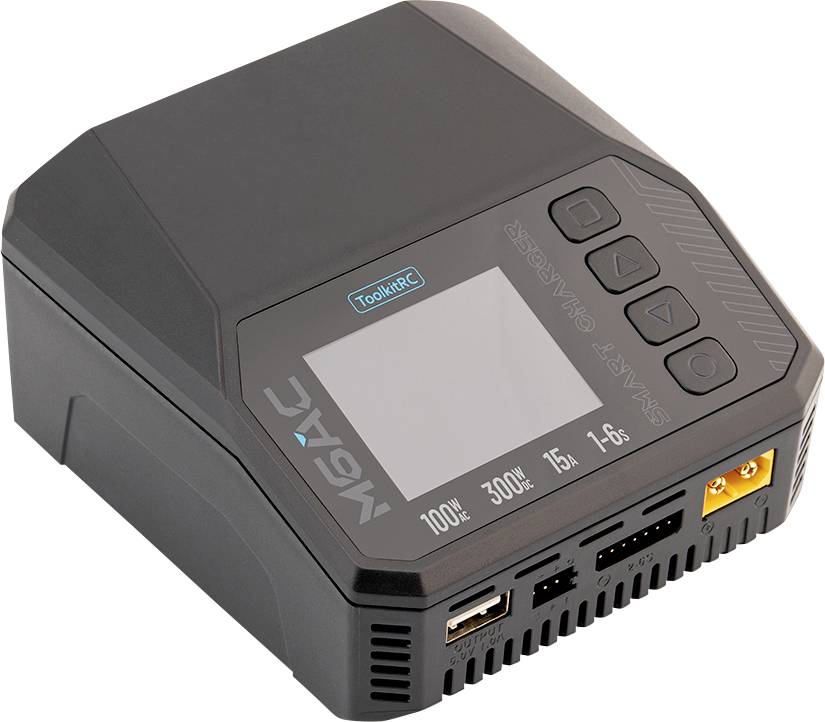

Black ToolKRC battery charger with LCD screen, four control buttons, and front power/output ports.

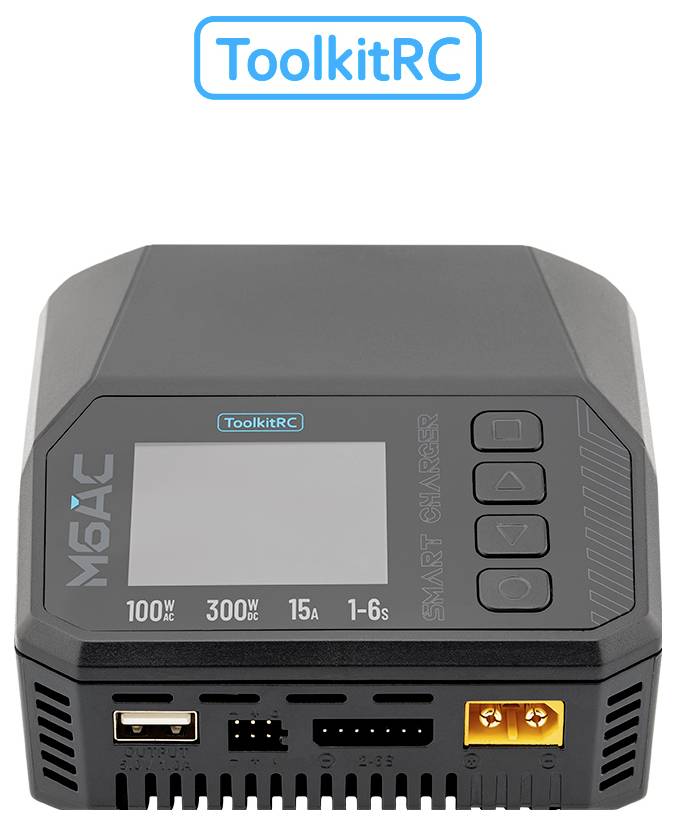

ToolkitRC M6AC smart charger with small display and control buttons, shown front view with power and battery ports.

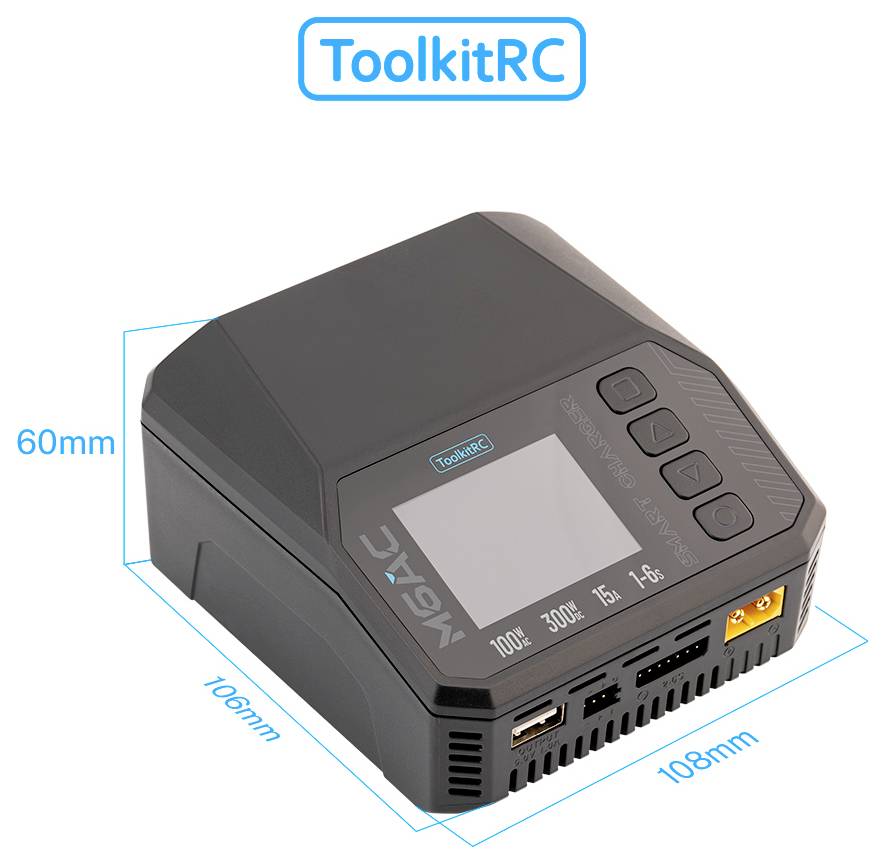

ToolkitRC K6S charger shown in 3D with dimensions labeled 60mm high, 106mm deep, and 108mm wide.<br>

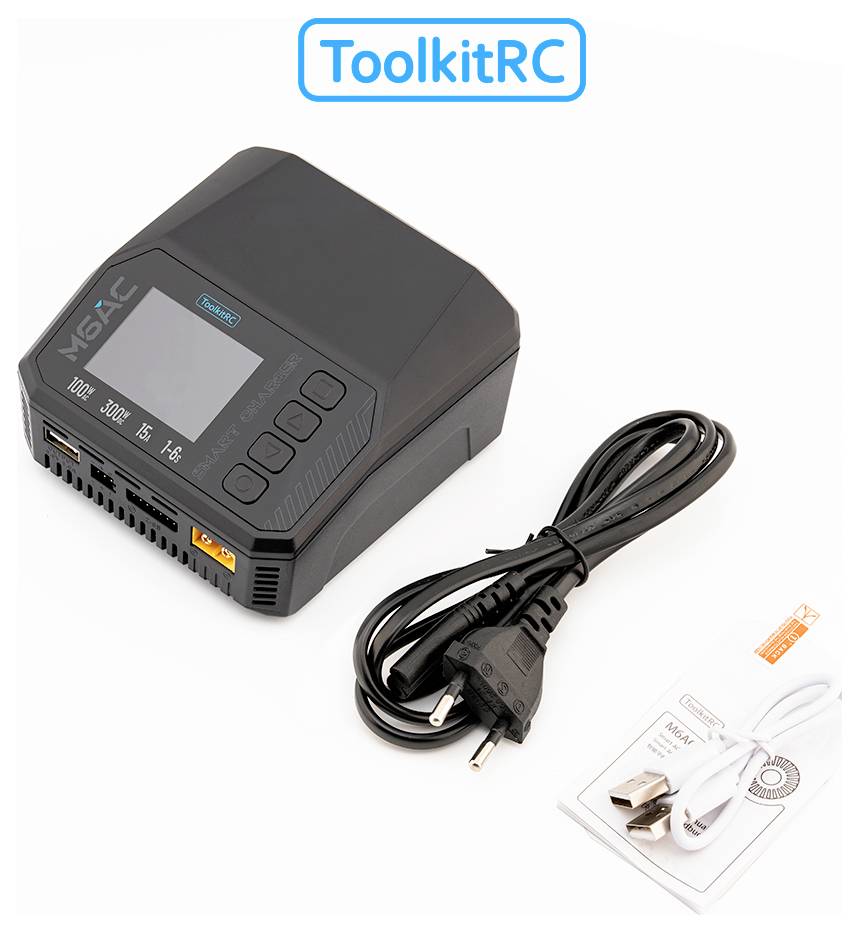

ToolkitRC battery charger with power cord and USB cable on a white background.
1/4
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 73.99 / piece)
€ 73.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

M6AC LiPo 1-6S 15A charger AC/DC

  • Up to 300 W (DC) or 100 W (AC) charging power
  • Max. 15A charge/discharge current
  • Wide battery support: LiPo/LiHV/LiFe/Li-Ion/LTO (1–6 S), NiMH (1–16 S), Pb (1–10S)
  • Internal discharge up to 15 W and recycling discharge (external) up to 300 W.
  • Multi-functional tools: Signal tester (PWM/PPM/SBUS), wattmeter, adjustable CC/CV-power supply (1–28 V, 0,5–15 A)
  • Measurement of battery voltage and internal resistance, adjustable cut-off voltage (TVC)
  • Multiple protection features and multi-lingual user interface

Technical specifications

Product type

Charger

Operating voltage

240 V

Matching rechargeable battery

LiPolymer

LiHV

LiFe

Li-ion

LTO

NiMH

Charging current (max.)

15 A

Dim

(L x W x H) 106 x 108 x 60 mm

Weight

350 g

Manufacturer part #

TK13800

Width

108 mm

Height

60 mm

Length

106 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742880 Toolkit RC ToolkitRC M6AC LiPo 1-6S 15A Charger 240 V 15 A LiPolymer, LiHV, LiFe, Li-ion, LTO, NiMH

Description

The ToolkitRC M6AC is a compact and versatile AC/DC charger suitable for up to 6-cell lithium batteries. It supplies up to 100W via the integrated AC power supply or up to 300W when powered by an external DC source with a maximum charge/discharge current of 15A. In addition to quick and reliable charging, the M6AC offers a wide range of diagnostics and additional functions, as well as precise battery maintenance.

This text is machine translated.

Scope of delivery

  • 1× M6AC charger
  • 1× AC input cable
  • 1 USB cable
  • 1× Quick start instructions
  • 1× Screen protective film
