Name: TP-LINK EAP660 HD AX3600-Multigigabit-Dualband-WLAN-Accesspoint Wi-Fi access point 2.4 GHz, 5 GHz
Brand: TP-LINK
SKU: 2368567
Availability: SoldOut

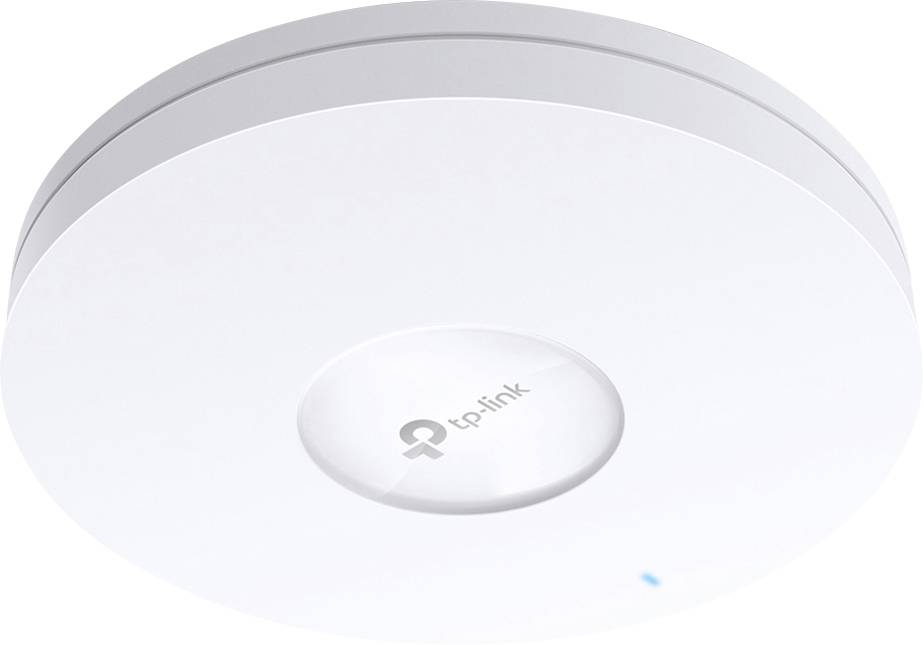

A white, round TP-Link Wi-Fi router with a glowing blue LED light at the bottom, set against a neutral background.

A white, circular Wi-Fi router with ventilation slots and an Ethernet port on the underside.

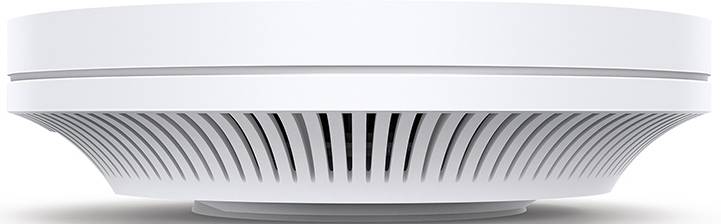

A white smoke detector on a ceiling, with ventilation slots all around, provides safety and early warning in case of smoke development.

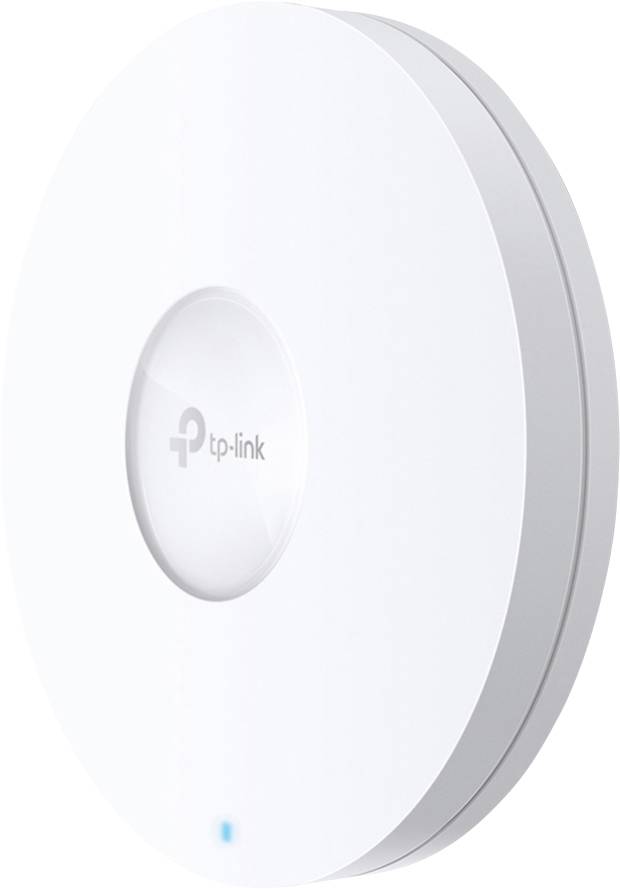

A white, round TP-Link Wi-Fi access point, wall-mounted, with a small blue light on its underside.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 279.00 / piece)

€ 279.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Ultra-high-performance AX3600 WLAN for environments with high density of end devices

Ultra-fast Wi-Fi 6 speeds: Simultaneous 1148 Mbit/s in 2.4 GHz and 2402 Mbit/s in 5 GHz WLAN results in a total bandwidth of 3550 Mbit/s in WLAN.
Strong connection at high terminal densities: 4× increased capacity for simultaneous connection of terminal devices.
Integrated with Omada SDN: Zero-Touch Provisioning (ZTP)§, centralized cloud management, and intelligent network monitoring.
Centralized management: Cloud access and the omad app enable very simple and convenient setup and management.
2.5GE network connection: The 2.5 Gbit/s network connection at the access point enables the complete WLAN bandwidth to be passed on to the network, without the access point developing a bottleneck.
Seamless WLAN roaming: Even video and voice chats do not feel a change between access points while moving.
PoE+ support: Supply with practical PoE according to IEEE802.3at enables a simple, flexible installation.
Secure Guest Network: Various authentication methods, such as SMS, Facebook, voucher and user authentication, a variety of WLAN security features and the new WPA3 security offer the highest security.

Technical specifications

Product type: Wi-Fi access point

Type: AX3600-Multigigabit-Dualband-WLAN-Accesspoint

Dual Band compatibility: 2.4 GHz and 5 GHz

Wi-Fi standard: IEEE802.11ax

Wi-Fi frequency band: 2.4 GHz
5 GHz

Wi-Fi speed 2.4 GHz: 1148 MBit/s

Wi-Fi speed 5 GHz: 2402 MB/s

LAN data transfer rate: 2.5 GBit/s

Interfaces: Gigabit LAN (1 Gbps)
Wi-Fi 6 (IEEE 802.11ax)

No. of Gigabit LANs: 1 x

Power supply (LOV): mains-powered

Width: 243 mm

Height: 64 mm

Depth: 243 mm

PoE: IEEE 802.3at (25.5 W)

Weight: 1.50

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2368567 TP-LINK EAP660 HD AX3600-Multigigabit-Dualband-WLAN-Accesspoint Wi-Fi access point 2.4 GHz, 5 GHz

User & Safety Instructions

User & Safety Instructions 2368567 TP-LINK EAP660 HD AX3600-Multigigabit-Dualband-WLAN-Accesspoint Wi-Fi access point 2.4 GHz, 5 GHz

Description

The new WiFi 6 features OFDMA and MU-MIMO for upload and download increase the capacity of your WLAN network by 4 times as much as Wi-Fi 5 (802.11ac) in high-density environments, allowing more devices to connect at the same time. Take advantage of the performance advantage of simultaneous WLAN use or high density terminal equipment and experience a network edge for professional networks like never before.
