Buy TracoPower TES 1-1212V DC/DC converter (SMD) 12 V DC 12 V DC 84 mA 1 W No. of outputs: 1 x Content 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

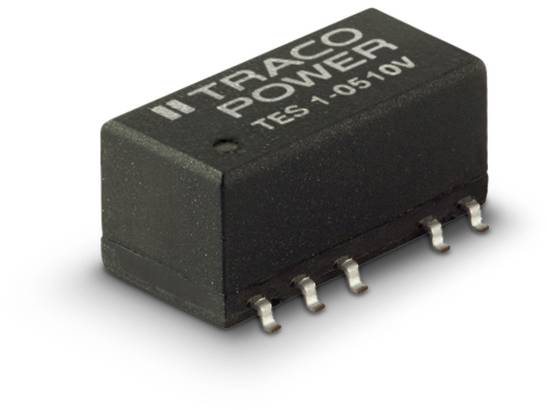

Black electronic chip with the inscription 'TRACO POWER TES 1-0510V', six connection pins underneath.

Black electronic chip with the inscription 'TRACO POWER TES 1-0510V', six connection pins underneath.

TracoPower

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (SMD)

Type: TES 1-1212V

Nominal voltage: 12 V DC

Min. input voltage: 10.8 V DC

Input voltage (max.): 13.2 V DC

No. of outputs: 1 x

Output voltages: 12 V DC

Max. output current: 84 mA

Output current (max.) - rounded: 84 mA

Efficiency (max.): 80 %

: 1 W

Insulation voltage: 3000 V DC

Enclosure: SMD

Connection: SMD

Operating temperature (min.): -40 °C

Operating temperature (max.): 85 °C

Dim: (L x W x H) 16.3 x 8 x 8 mm

Height: 8 mm

Length: 16.3 mm

Width: 8 mm

Output voltage (max.): 12 V DC

Output voltage (min.): 12 V DC

Weight: 2 g

Content: 1 pc(s)

Type: TES1-1212 V

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1510180 TracoPower TES 1-1212V DC/DC converter (SMD) 12 V DC 12 V DC 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Datasheet 1510180 TracoPower TES 1-1212V DC/DC converter (SMD) 12 V DC 12 V DC 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1510180 TracoPower TES 1-1212V DC/DC converter (SMD) 12 V DC 12 V DC 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1510180 TracoPower TES 1-1212V DC/DC converter (SMD) 12 V DC 12 V DC 84 mA 1 W No. of outputs: 1 x Content 1 pc(s)

Description

Compact SMD casing with industry-standard pinning, E/A-insulation 3000 V/DC, high accuracy of Pin-Co-planar intensity. Suitable for lead-free soldering process after IPC/JEDEC J-STD-020C.

This text is machine translated.

Description

Compact SMD casing with industry-standard pinning, E/A-insulation 3000 V/DC, high accuracy of Pin-Co-planar intensity. Suitable for lead-free soldering process after IPC/JEDEC J-STD-020C.

This text is machine translated.
