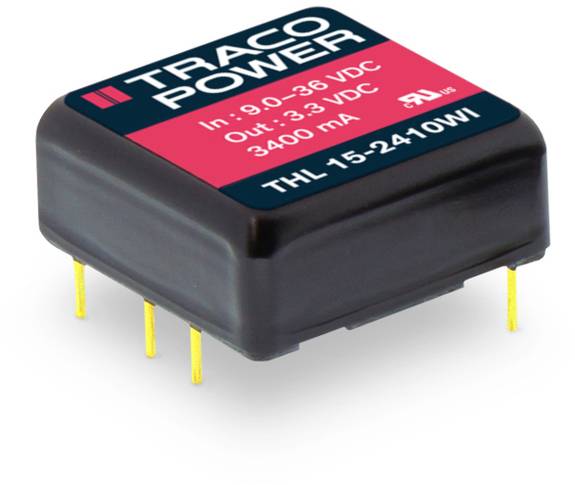

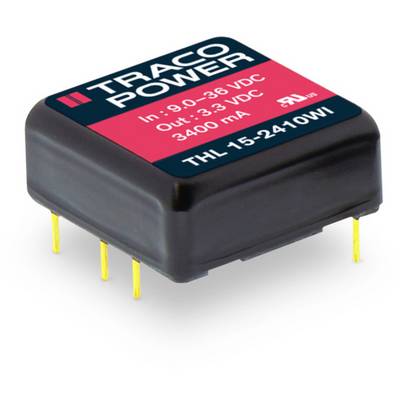

TracoPower THL 15-2415WI DC/DC converter (print) 625 mA 15 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 28.56
30
4% = € 1.24
€ 27.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 28.56 / piece)
€
Technical specifications
- Type
THL 15-2415WI
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Max. output current
625 mA
- Output current (max.) - rounded
625 mA
- Efficiency (max.)
91 %
15 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
70 °C
- Dim
(L x W x H) 25.40 x 25.40 x 10.20 mm
- Height
10.20 mm
- Length
25.40 mm
- Width
25.40 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Output voltage (max.)
24.0 V DC
- Output voltage (min.)
24.0 V DC
- Weight
15 g
- Product type
DC/DC converter (print)
