Buy TracoPower TML 40215C AC/DC PSU (print) 15 V DC 1.333 A 40 W

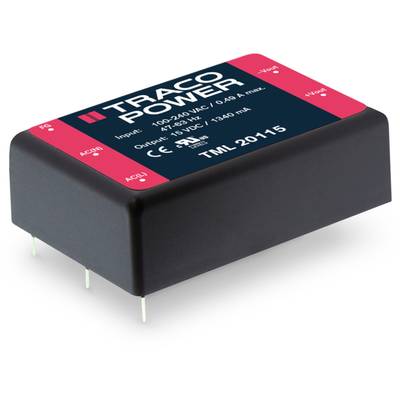

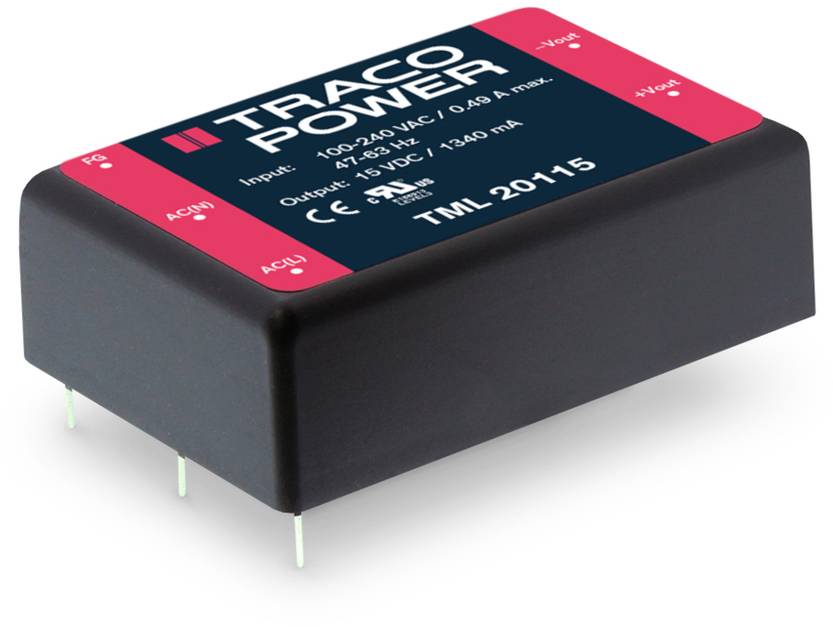

A power supply module with the label 'TRACO POWER', model TML 20115, shows input voltage of 100-240 VAC and output 15 VDC.

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Minimum order quantity: 5

Total (€ 105.03 / piece)

€

Report legal concerns

Highlights & Details

AC / DC power supply module TML series, 5 - 30 watts

Output 15 V DC / 1.333 A
Power 40 W
Input voltage 85 - 264 V AC

Technical specifications

max. 120 - 180 % (foldback)

Product type: AC/DC PSU (print)

Input voltage (max.): 264 V AC

Max. output current: 1.333 A

Output current (max.) - rounded: 1.33 A

Min. input voltage: 90 V AC

Dim: (W x H) 64 mm x 33 mm

Output voltage (max.): 15 V DC

: 40 W

No. of outputs: 2 x

Output voltage 1: +15 V

Output voltage 2: -15 V

Output current 1: 1333 mA

Output current 2: 1333 mA

Operating temperature: -25 to +60 °C

Insulation voltage: 3000 V AC

Width: 64 mm

Height: 33 mm

Residual ripple: Max 1.5 %

Type: TML 40215C

Input voltage: 85 - 264 V AC

Mains control: max. ±0.3 %

Documents & Downloads

Datasheet

Datasheet 3370038 TracoPower TML 40215C AC/DC PSU (print) 15 V DC 1.333 A 40 W

User & Safety Instructions

User & Safety Instructions 3370038 TracoPower TML 40215C AC/DC PSU (print) 15 V DC 1.333 A 40 W

Warranty Terms

Warranty Terms 3370038 TracoPower TML 40215C AC/DC PSU (print) 15 V DC 1.333 A 40 W

Description

AC/DC-power supply module in cast plastic casing. Wide-range input for worldwide usage. High degree of efficiency, low noise and low remaining ripple. Short-circuit and overload protection. Radio interference suppression acc. EN 55022, class B and FCC, Level B UL 94V-0. Security in accordance with UL 1950, IEC / EN 60950 3 years warranty.
