Buy TracoPower TML 40512 AC/DC PSU (print) 12 V DC 5 A 40 W

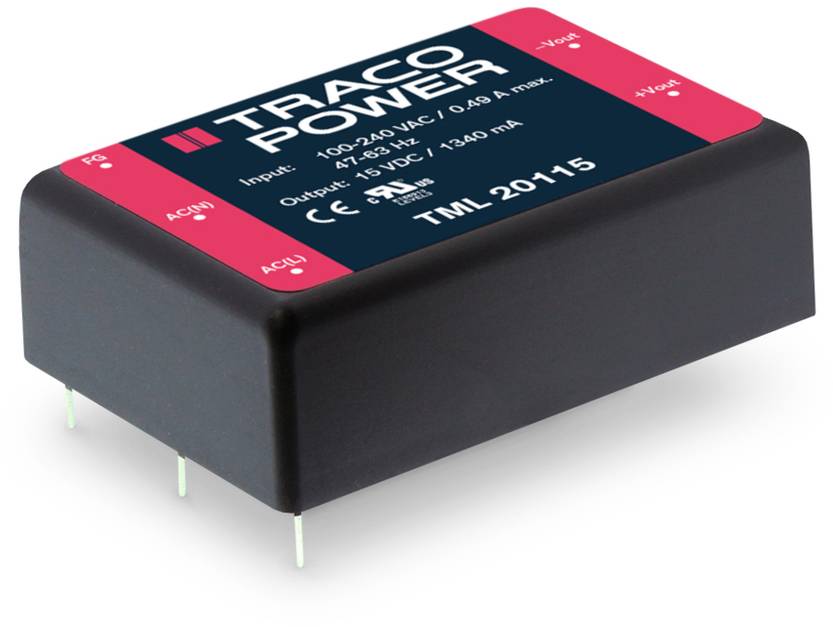

A rectangular, black electronic module with the inscription 'Traco Power', technical specifications, and four connecting pins at the bottom.

Datasheet (PDF)

Available soon

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 105.03 / piece)

€ 1,050.30

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

AC / DC power supply module TML series, 5 - 30 watts

Output 12 V DC / 5 A
Power 40 W
Input voltage 85 - 264 V AC

Technical specifications

max. 120 - 180 % (foldback)

Product type: AC/DC PSU (print)

Input voltage (max.): 264 V AC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

Min. input voltage: 90 V AC

Dim: (W x H) 64 mm x 25 mm

Output voltage (max.): 12 V DC

: 40 W

No. of outputs: 3 x

Output voltage 1: +5 V

Output voltage 2: +12 V

Output voltage 3: -12 V

Output current 1: 5000 mA

Output current 2: 600 mA

Output current 3: 600 mA

Operating temperature: -25 to +60 °C

Insulation voltage: 3000 V AC

Width: 64 mm

Height: 25 mm

Residual ripple: Max 1.5 %

Type: TML 40512

Input voltage: 85 - 264 V AC

Mains control: max. ±0.3 %

Documents & Downloads

Datasheet

Datasheet 3370041 TracoPower TML 40512 AC/DC PSU (print) 12 V DC 5 A 40 W

User & Safety Instructions

User & Safety Instructions 3370041 TracoPower TML 40512 AC/DC PSU (print) 12 V DC 5 A 40 W

Warranty Terms

Warranty Terms 3370041 TracoPower TML 40512 AC/DC PSU (print) 12 V DC 5 A 40 W

Description

AC/DC-power supply module in cast plastic casing. Wide-range input for worldwide usage. High degree of efficiency, low noise and low remaining ripple. Short-circuit and overload protection. Radio interference suppression acc. EN 55022, class B and FCC, Level B UL 94V-0. Security in accordance with UL 1950, IEC / EN 60950 3 years warranty.
