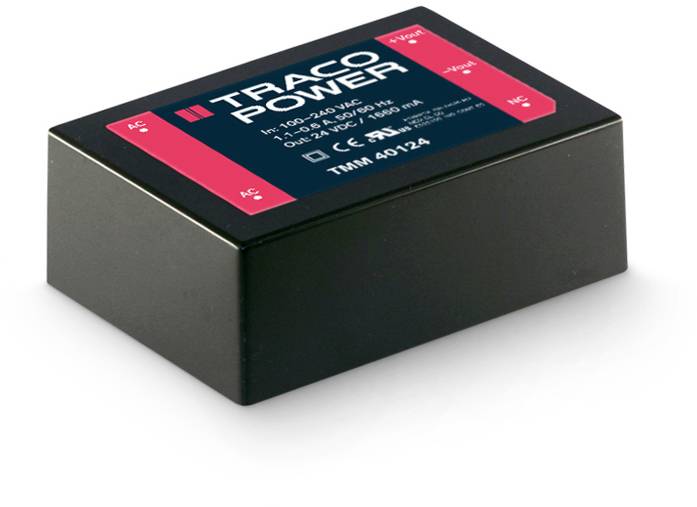

TracoPower TMM 40124 AC/DC PSU (print) 24 V DC 1.7 A 40 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 5
Total (€ 91.99 / piece)
€ 91.99
incl. VAT
14-day return policy included
Highlights & Details
AC/DC-SWITCHED POWER SUPPLY, 40 W, 24 V/1.7 A
- Output 24 V DC / 1.7 A
- Power 40 W
Technical specifications
- Product type
AC/DC PSU (print)
- Input voltage (max.)
264 V AC
- Max. output current
1.7 A
- Output current (max.) - rounded
1.7 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 88.9 x 63.5 x 30 mm
- Output voltage (max.)
24 V DC
40 W
- No. of outputs
1 x
- Operating temperature (max.)
80 °C
- Max. operating temperature (derating)
90 °C
- Min. operating temperature (derating)
65 °C
- Operating temperature (min.)
-40 °C
- Weight
310 g
- Width
63.5 mm
- Height
30 mm
- Length
88.9 mm
- Type
TMM 40124
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3370109 TracoPower TMM 40124 AC/DC PSU (print) 24 V DC 1.7 A 40 W
Datasheet 3370109 TracoPower TMM 40124 AC/DC PSU (print) 24 V DC 1.7 A 40 W
User & Safety Instructions
User & Safety Instructions 3370109 TracoPower TMM 40124 AC/DC PSU (print) 24 V DC 1.7 A 40 W
Warranty Terms
Warranty Terms 3370109 TracoPower TMM 40124 AC/DC PSU (print) 24 V DC 1.7 A 40 W
Description
The switching power supplies of the TMM 24 series offer ultra-compact, completely sealed modules with reinforced/double I/O insulation according to the latest safety standards 60601-3, 3rd edition for 2 x MOPP (Means Of Patient Protection). Due to their high degree of efficiency and the use of high-quality components, these modules can be used in a working temperature range from –40°C to +65°C, with a power reduction of 50% even up to +80°C. Due to their good EMC properties, they can be used not only in medical applications but also in demanding industrial and transport applications.
This text is machine translated.
This text is machine translated.
Scope of delivery
- AC/DC-switched power supply
