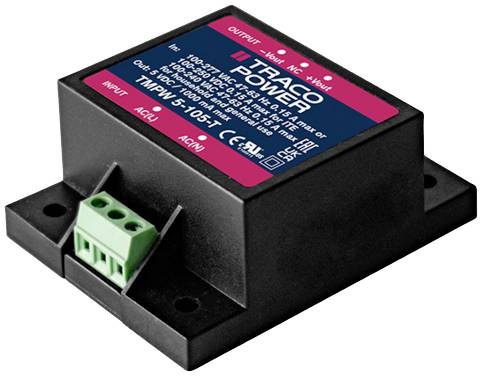

TracoPower TMPW 5-105-T AC/DC PSU (print) 5 V DC 1.0 A 5 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Total (€ 22.99 / piece)
€ 229.90
incl. VAT
14-day return policy included
Highlights & Details
AC/DC power supply, TMPW 5 series
- Output 5 V DC / 1.0 A
- Power 5 W
Technical specifications
- Product type
AC/DC PSU (print)
- Input voltage (max.)
305 V AC
- Max. output current
1.0 A
- Output current (max.) - rounded
1 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 43.20 x 55.10 x 22.90 mm
- Output voltage (max.)
5 V DC
5 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-40 °C
- Weight
60 g
- Width
55.10 mm
- Height
22.90 mm
- Length
43.20 mm
- Type
TMPW 5-105-T
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3373115 TracoPower TMPW 5-105-T AC/DC PSU (print) 5 V DC 1.0 A 5 W
User & Safety Instructions
User & Safety Instructions 3373115 TracoPower TMPW 5-105-T AC/DC PSU (print) 5 V DC 1.0 A 5 W
Warranty Terms
Warranty Terms 3373115 TracoPower TMPW 5-105-T AC/DC PSU (print) 5 V DC 1.0 A 5 W
Description
These compact modules are equipped with a wide input range from 90 to 305 VAC for industrial and household applications. They are available in three designs: Enclosed plastic casing with solder pins, chassis housing with screw terminals (end: -T) or JST connectors (end: -J). Other features are an integrated filter according to EN 55032, class B and the approval according to IEC/EN/EL 62368-1.
This text is machine translated.
This text is machine translated.
Features
- Wide input range: 90-305 VAC
- Screw connections and installation
- Approvals according to EN 60335-1 and IEC/EN/UL 62368-1
- E/A-INSULATION 4000 VAC
- Operating temperature range -40 to +70 ° C
- Low no-load consumption (standby) below 0.1 W (as per ErP-regulation)
- Integrated filter according to EN 55032, class B
- Class I and II
Scope of delivery
- 10 pieces
