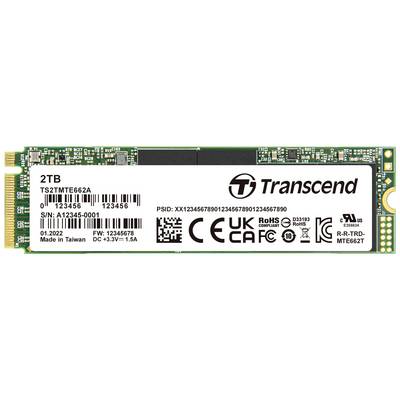

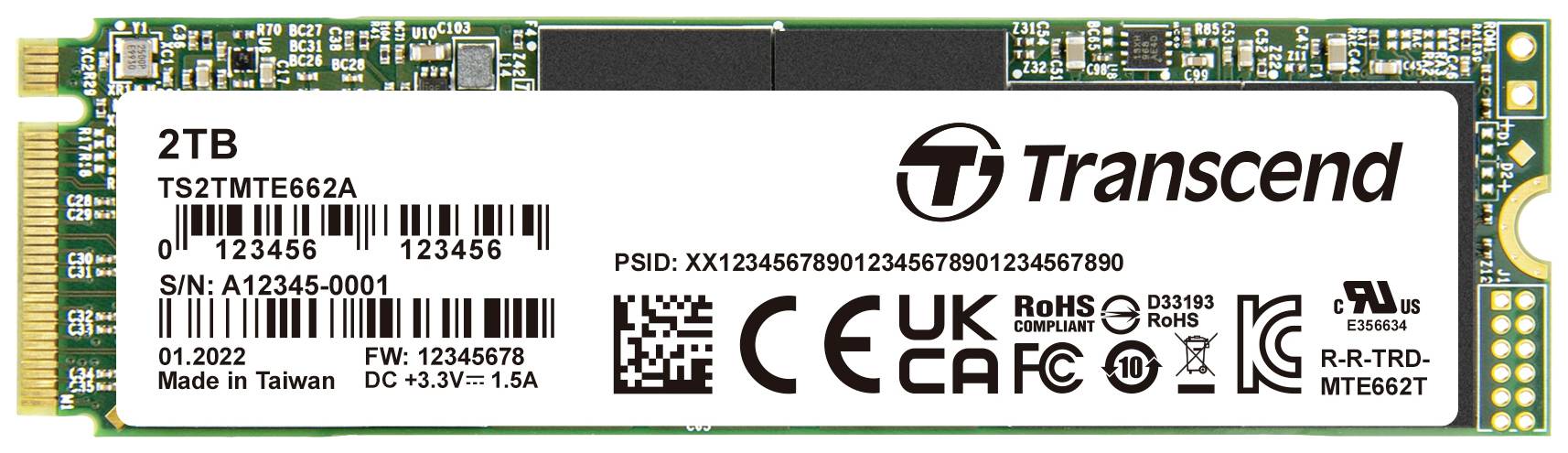

Transcend MTE662A 2 TB NVMe/PCIe M.2 internal SSD PCIe 3.0 x4 Industrial TS2TMTE662A
EAN:
Part number:
Item no:
Number
Total (€ 3,096.64 / piece)
€ 3,096.64
plus VAT.
Highlights & Details
Transcend MTE662A PCIe M.2 2TB SSDs
- Memory capacity: 2 TB
- Form factor M.2 2280
- Bus connection interface: NVMe PCIe Gen3 x4
- Flash type 3D NAND flash
Technical specifications
- Product type
NVMe/PCIe M.2 internal SSD
- Series
MTE662A
- Form factor
M.2 Module 2280
- Interfaces
PCIe 3.0 x4
- Memory capacity
2 TB
- Reading
3500 MBps
- Writing
2700 MBps
- IOPS read speed (max.)
340000 IOPS
- IOPS write speed (max.)
310000 IOPS
- Features
3D NAND
- Design height
3.58 mm
- Width
22 mm
- Height
3.58 mm
- Depth
80 mm
- Type
Industrial
- Operating temperature (max.)
75 °C
- Operating temperature (min.)
-20 °C
- Operating temperature range
-20 up to 75 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2995053 Transcend MTE662A 2 TB NVMe/PCIe M.2 internal SSD PCIe 3.0 x4 Industrial TS2TMTE662A
Warranty Terms
Warranty Terms 2995053 Transcend MTE662A 2 TB NVMe/PCIe M.2 internal SSD PCIe 3.0 x4 Industrial TS2TMTE662A
Description
The Transcend MTE662A M.2 SSD features the PCI Express (PCIe) Gen 3 x4 interface and is compatible with the NVM Express (NVMe) 1.3 specifications to achieve unprecedented transfer speeds. The MTE662P features state-of-the-art 3D NAND technology in which 96 layers of 3D NAND flash chips are stacked vertically. As compared to 3D NAND with 64 layers the storage efficiency is increased considerably and the in-built DRAM-cache enables a faster access. The MTE662A complies with the TCG Opal 2.0 standards. The data is secured by encryption and hierarchical authorization. The durability of the SSD is enhanced by a 30µ" gold finger printed circuit board and Corner Bond technology. The MTE662A is fully tested in-house to ensure reliability in business-critical applications. It has a durability of 3K program/erase cycles and can be operated in the extended temperature range of -20°C to 75°C.
