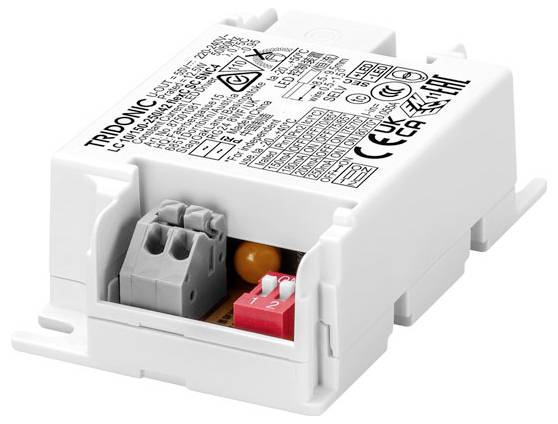

Tridonic LC 10W 150-250mA flexC SC SNC4 LED driver Constant current 10.5 W 0.25 A 24 - 42 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 9.99 / piece)
€ 9.99
incl. VAT
14-day return policy included
Highlights & Details
Tridonic LC 10/17/25/36/42/62W flexC SC
- Constant current
- 24 - 42 V
- 0.25 A
Technical specifications
- Number of max. B16 circuit breakers: 188
- Number of max. at C16 circuit breakers: 188
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Not dimmable
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 70 x 43 x 22.5 mm
- Output voltage (max.)
42 V
- Output voltage (min.)
24 V
- Max. output current
0.25 A
- Output current (max.) - rounded
250 mA
- LED driver features
not dimmable
IP20
- Connection
Jack connector
- Max. power
10.5 W
- No. of outputs
1 x
- Output current (min.)
0.25 A
- Power range
10.5 W (max)
- Width
43 mm
- Height
22.5 mm
- Length
70 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Efficiency
80.5 %
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435795 Tridonic LC 10W 150-250mA flexC SC SNC4 LED driver Constant current 10.5 W 0.25 A 24 - 42 V not dimmable 1 pc(s)
Description
Selectable output current
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
