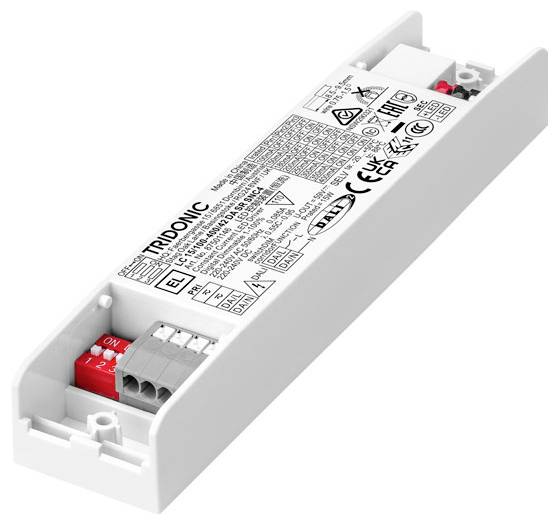

Tridonic LC 15W 100-400mA DA SR SNC4 LED driver 15 W 0.35 A 9 - 42 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Highlights & Details
TRIDONIC LC 15W DA SR SNC4 LED-SNT IP20
- 9 - 42 V
- 0.35 A
Technical specifications
- Number of max. B16 circuit breakers: 66
- Number of max. at C16 circuit breakers: 110
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Dali-2 push-DIMM interface
- Product type
LED driver
- Dim
(L x W x H) 144 x 30 x 21 mm
- Output voltage (max.)
42 V
- Output voltage (min.)
9 V
- Max. output current
0.35 A
- Output current (max.) - rounded
350 mA
- Protection class
IP20
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
15 W
- No. of outputs
1 x
- Output current (min.)
0.35 A
- Power range
15 W (max)
- Width
30 mm
- Height
21 mm
- Length
144 mm
- Max. temperature
+75 °C
- Min. temperature
-20 °C
- Efficiency
83.5 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435808 Tridonic LC 15W 100-400mA DA SR SNC4 LED driver 15 W 0.35 A 9 - 42 V adjustable 1 pc(s)
Description
DC-compatible, emergency lighting device, output current selectable, independent operating device, output current programmable
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
