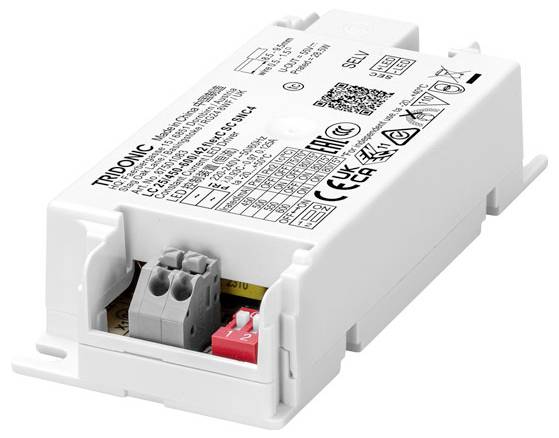

Tridonic LC 25W 450-600mA flexC SC SNC4 LED driver 25.2 W 0.5 A - 600 mA 24 - 42 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Highlights & Details
Tridonic LC 10/17/25/36/42/62W flexC SC
- 24 - 42 V
- 0.5 A - 600 mA
Technical specifications
- Number of max. B16 circuit breakers: 32
- Number of max. at C16 circuit breakers: 53
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Interface: Not dimmable
- Product type
LED driver
- Dim
(L x W x H) 97 x 43 x 22.5 mm
- Output voltage (max.)
42 V
- Output voltage (min.)
24 V
- Max. output current
600 mA
- Output current (max.) - rounded
600 mA
- LED driver features
not dimmable
IP20
- Connection
Jack connector
- Max. power
25.2 W
- No. of outputs
1 x
- Output current (min.)
0.5 A
- Power range
25.2 W (max)
- Width
43 mm
- Height
22.5 mm
- Length
97 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Efficiency
87.5 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435797 Tridonic LC 25W 450-600mA flexC SC SNC4 LED driver 25.2 W 0.5 A - 600 mA 24 - 42 V not dimmable 1 pc(s)
Description
Selectable output current
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
