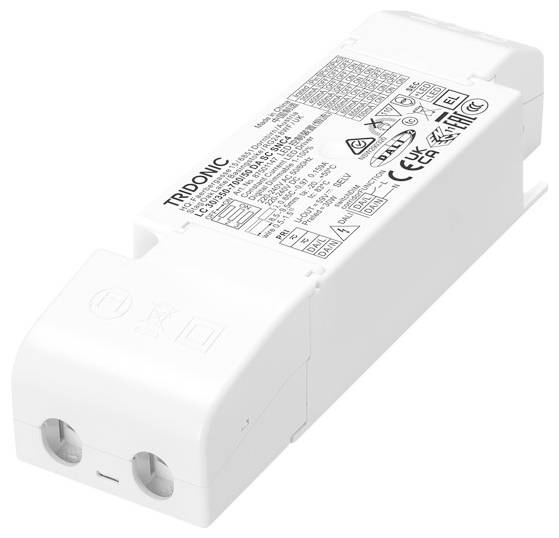

Tridonic LC 30W 350-700mA DA SC SNC4 LED driver Constant current 30 W 0.7 A 15 - 50 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
Highlights & Details
TRIDONIC LC 30/45W DA SC SNC4 LED-SNT IP
- Constant current
- 15 - 50 V
- 0.7 A
Technical specifications
- Number of max. B16 circuit breakers: 25
- Number of max. at C16 circuit breakers: 42
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Dali-2 push-DIMM interface
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 97 x 43 x 30 mm
- Output voltage (max.)
50 V
- Output voltage (min.)
15 V
- Max. output current
0.7 A
- Output current (max.) - rounded
700 mA
- LED driver features
adjustable
IP20
- Connection
Jack connector
- Max. power
30 W
- No. of outputs
1 x
- Output current (min.)
0.7 A
- Power range
30 W (max)
- Width
43 mm
- Height
30 mm
- Length
97 mm
- Max. temperature
+60 °C
- Min. temperature
-20 °C
- Efficiency
89.5 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435839 Tridonic LC 30W 350-700mA DA SC SNC4 LED driver Constant current 30 W 0.7 A 15 - 50 V adjustable 1 pc(s)
Description
DC-compatible, emergency lighting device, output current selectable, independent operating device, output current programmable
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
