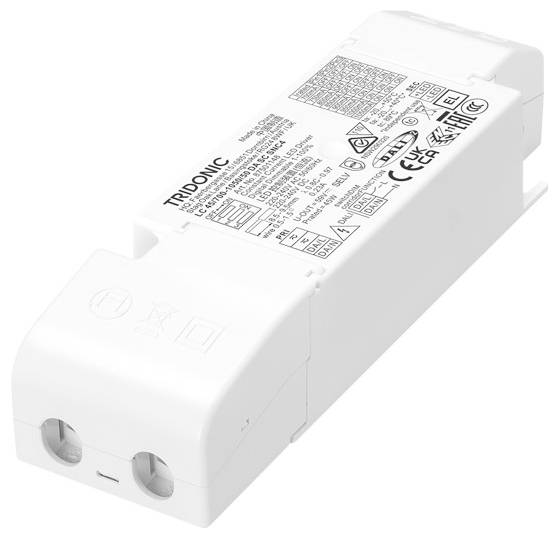

Tridonic LC 45W 700-1050mA DA SC SNC4 LED driver Constant current 45 W 1.05 A 15 - 50 V dimmable, DALI, adjustable 1 pc(
EAN:
Part number:
Item no:
Number
Total (€ 25.99 / piece)
€ 25.99
incl. VAT
14-day return policy included
Highlights & Details
LC 45W 700-1050mA DA SC SNC4
- Constant current
- 15 - 50 V
- 1.05 A
Technical specifications
- Number of max. B16 circuit breakers: 37
- Number of max. at C16 circuit breakers: 62
- Operation maintenance:
- Operation maintenance 100,000 h
- Interface:
- Dali-2 push-DIMM interface
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 97 x 43 x 30 mm
- Output voltage (max.)
50 V
- Output voltage (min.)
15 V
- Max. output current
1.05 A
- Output current (max.) - rounded
1.05 A
- LED driver features
dimmable
DALI
adjustable
IP20
- Connection
Jack connector
- Max. power
45 W
- No. of outputs
1 x
- Output current (min.)
1.05 A
- Power range
45 W (max)
- Width
43 mm
- Height
30 mm
- Length
97 mm
- Max. temperature
+65 °C
- Min. temperature
-20 °C
- Efficiency
88 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435809 Tridonic LC 45W 700-1050mA DA SC SNC4 LED driver Constant current 45 W 1.05 A 15 - 50 V dimmable, DALI, adjustable 1 pc(
Description
DC-compatible, emergency lighting device, output current selectable, independent operating device, output current programmable
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
