TRU COMPONENTS 1565143 Heatshrink w/o adhesive Blue 9 mm 4.50 mm Shrinkage:2:1 10 m

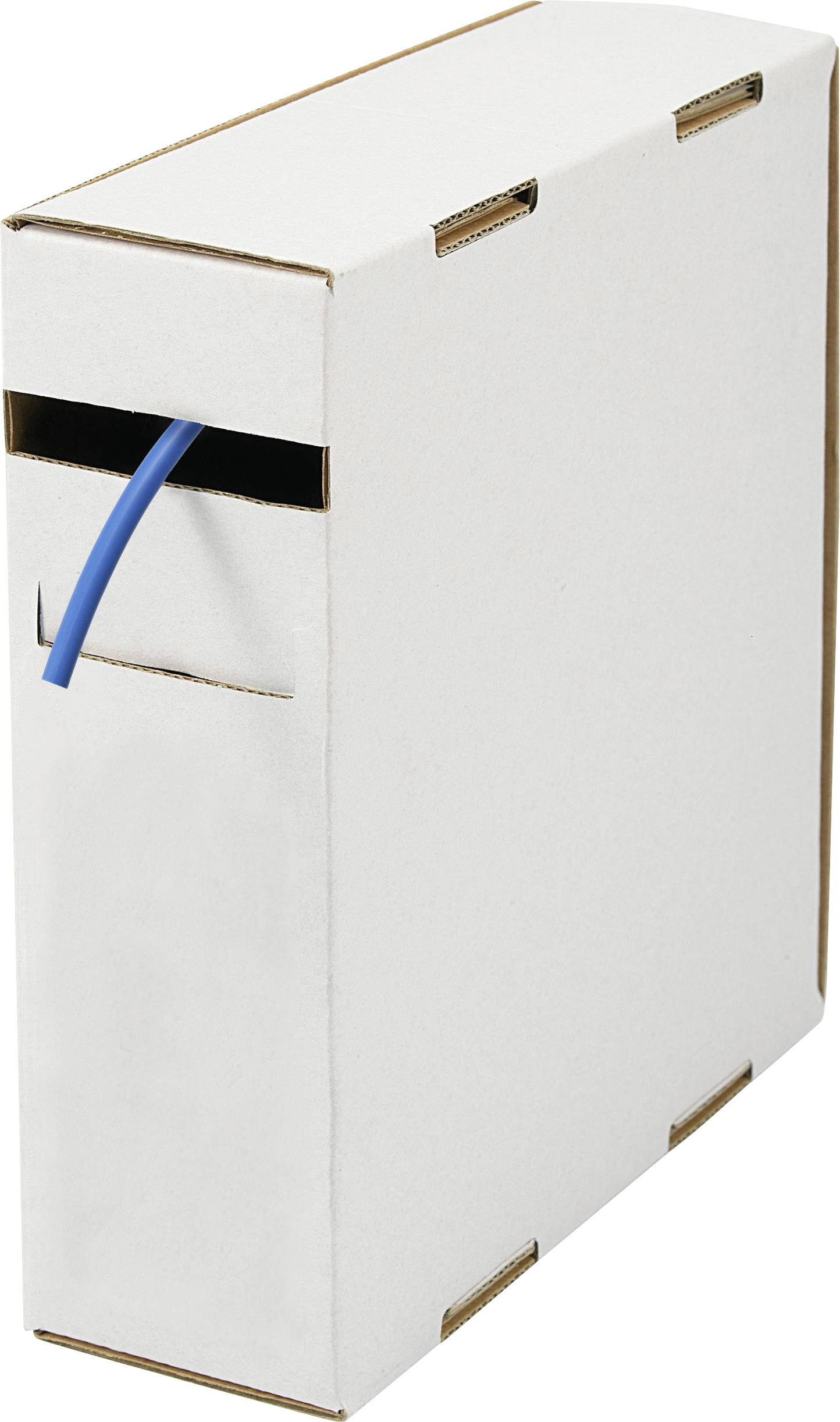

White cardboard box with a blue cable protruding through a side slot, suggesting packaged or stored wiring cable.

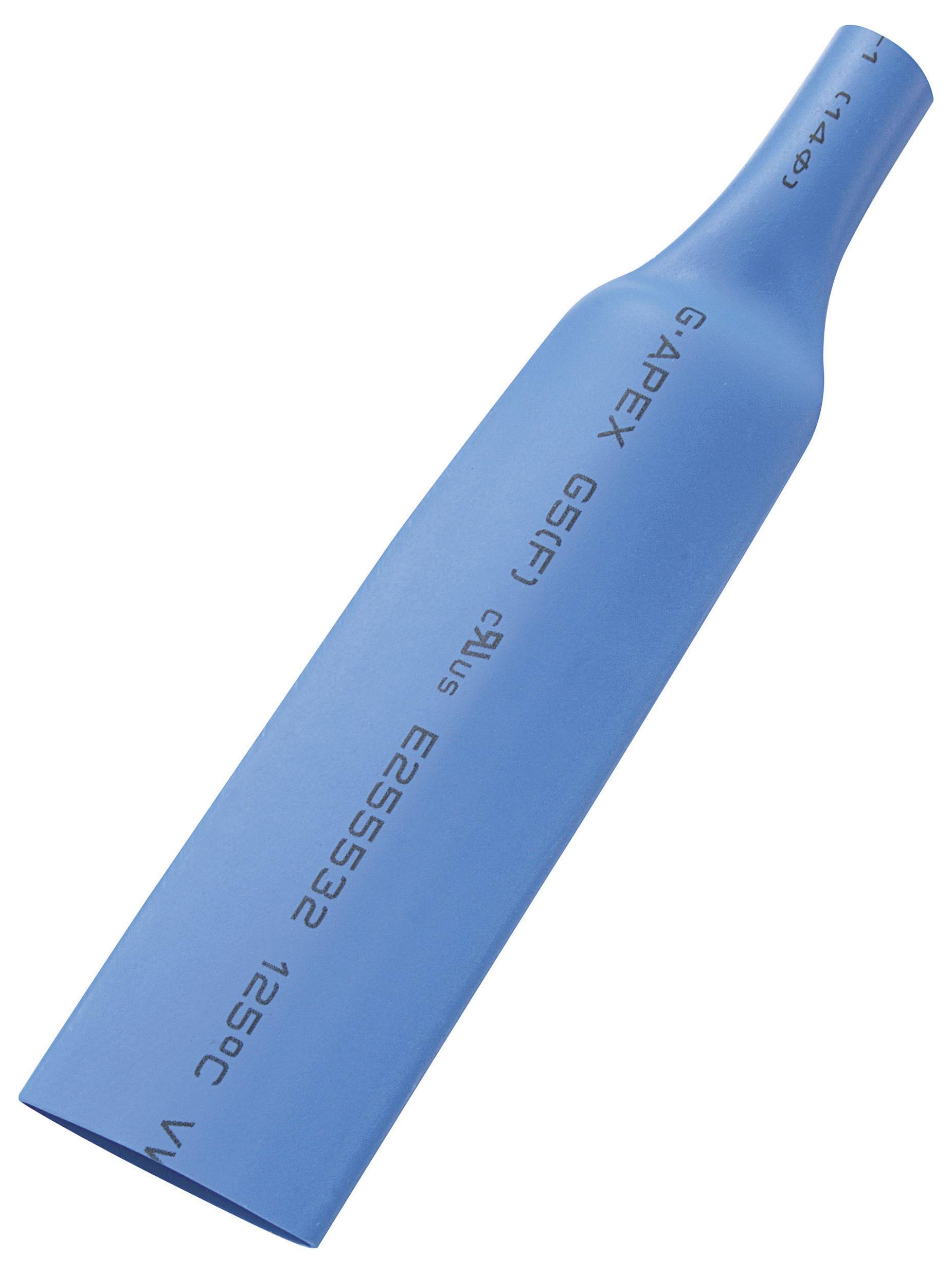

A blue heat shrink tubing labeled 'G' APEX GSIF', designed for insulation and protection of electrical wires, temperature rated 125ºC.
'Image showing two black tubes, one larger labeled 'Before Shrink' and one smaller labeled 'After Shrink'. Text: 'SHRINK RATIO: 2:1'.'
'10 m' line above represents length; '9 mm' line below indicates width.
1/4
Product type
Heatshrink w/o adhesive
Nominal inside diameter (pre-shrinkage)
9 mm
Nominal diameter (post-shrinkage)
4.50 mm
Heatshrink features
Flame-retardant
Chemical-resistant
Highly flexible
Content
10 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
11 Set(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (1 m = € 0.65)
€ 6.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Heat Shrink Tubing In Dispenser Box, No Hot Melt Adhesive 10 m N/A

  • Shrink ratio 2 : 1

Our service for you

Technical specifications

Product type

Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage)

9 mm

Nominal diameter (post-shrinkage)

4.50 mm

Factory colour

Blue

Shrinkage

2:1

Heatshrink features

Flame-retardant

Chemical-resistant

Highly flexible

Content

10 m

Shrink temperature (min.)

+70 °C

Min. temperature

-55 °C

Max. temperature

+125 °C

Manufacturer part #

1565143

Halogen-free

No

RoHS-compliant

Yes

Type

B2G5-6 BL

Wall thickness (post-shrinkage)

0.56 mm

Documents & Downloads

Datasheet

Datasheet 1565143 TRU COMPONENTS 1565143 Heatshrink w/o adhesive Blue 9 mm 4.50 mm Shrinkage:2:1 10 m

User & Safety Instructions

User & Safety Instructions 1565143 TRU COMPONENTS 1565143 Heatshrink w/o adhesive Blue 9 mm 4.50 mm Shrinkage:2:1 10 m

Description

Thin-walled heat shrink tubing for insulation and marking. In a convenient dispenser box for ease of use. For cable marking, cable bundling and electrical insulation for cable connections.
