TRU COMPONENTS 1587654 Flip switch TC-R13-228A-05 250 V AC 6 A 1 x Off/On latch 1 pc(s)

A black toggle switch with a white dot and line, symbolising the 'off' and 'on' positions.

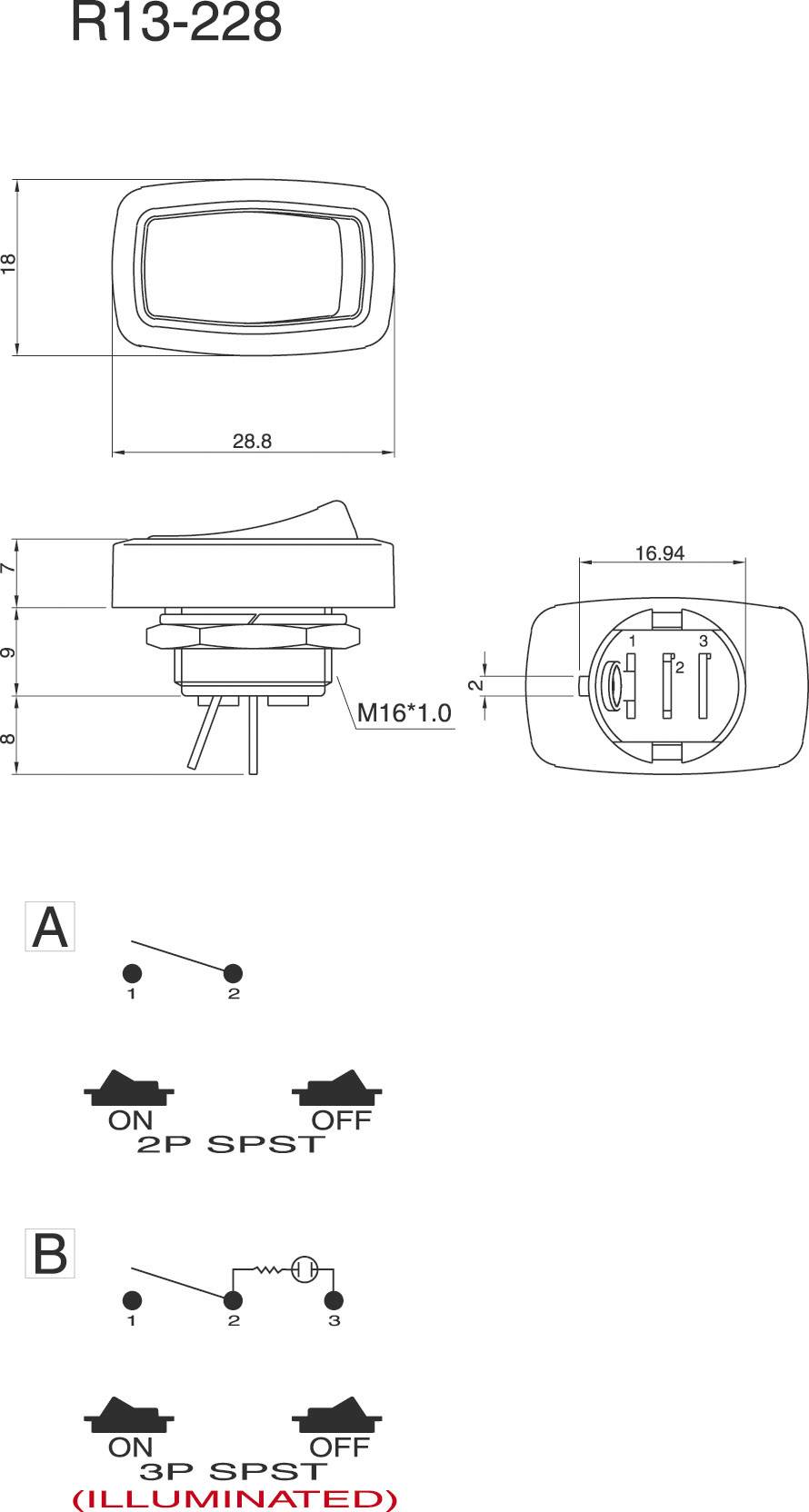

Diagram of a rectangular switch R13-228. Dimensions shown at the top. Below, switching diagrams: '2P SPST' (A) and '3P SPST (illuminated)' (B).
1/2
Product type
Flip switch
Casing/button colour
Black
Functions
latch
Lighting type
None
Switch position
1 x Off/On
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
1460 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3.31 / piece)
€ 3.31
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Toggle switch 250 V AC 6 A 1 x Off/On

Our service for you

Technical specifications

Product type

Flip switch

Casing/button colour

Black

Functions

latch

Lighting type

None

Switch position

1 x Off/On

Print motif

0/I

Material

Polyamide

Connection

Solder tag

Contact resistance

50 mΩ

Switching voltage

250 V AC

Switching current (max.)

6 A

Dielectric strength

1500 V/AC 1 minute

Recess diameter

16 mm

Front panel thickness

4.5 mm

Content

1 pc(s)

Insulation resistance

100 MΩ/500 V DC

RoHS-compliant

Yes

Type

TC-R13-228A-05

Documents & Downloads

Datasheet

Datasheet 1587654 TRU COMPONENTS 1587654 Flip switch TC-R13-228A-05 250 V AC 6 A 1 x Off/On latch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1587654 TRU COMPONENTS 1587654 Flip switch TC-R13-228A-05 250 V AC 6 A 1 x Off/On latch 1 pc(s)

Description

Rocker switch 1-pole, with guide lug for front panel mounting.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
