TRU COMPONENTS 701311 LAS1-AGQ-22E, RD Tamper-proof pushbutton 250 V AC 5 A 2 x On/(On) momentary Red IP67 1 pc(s)

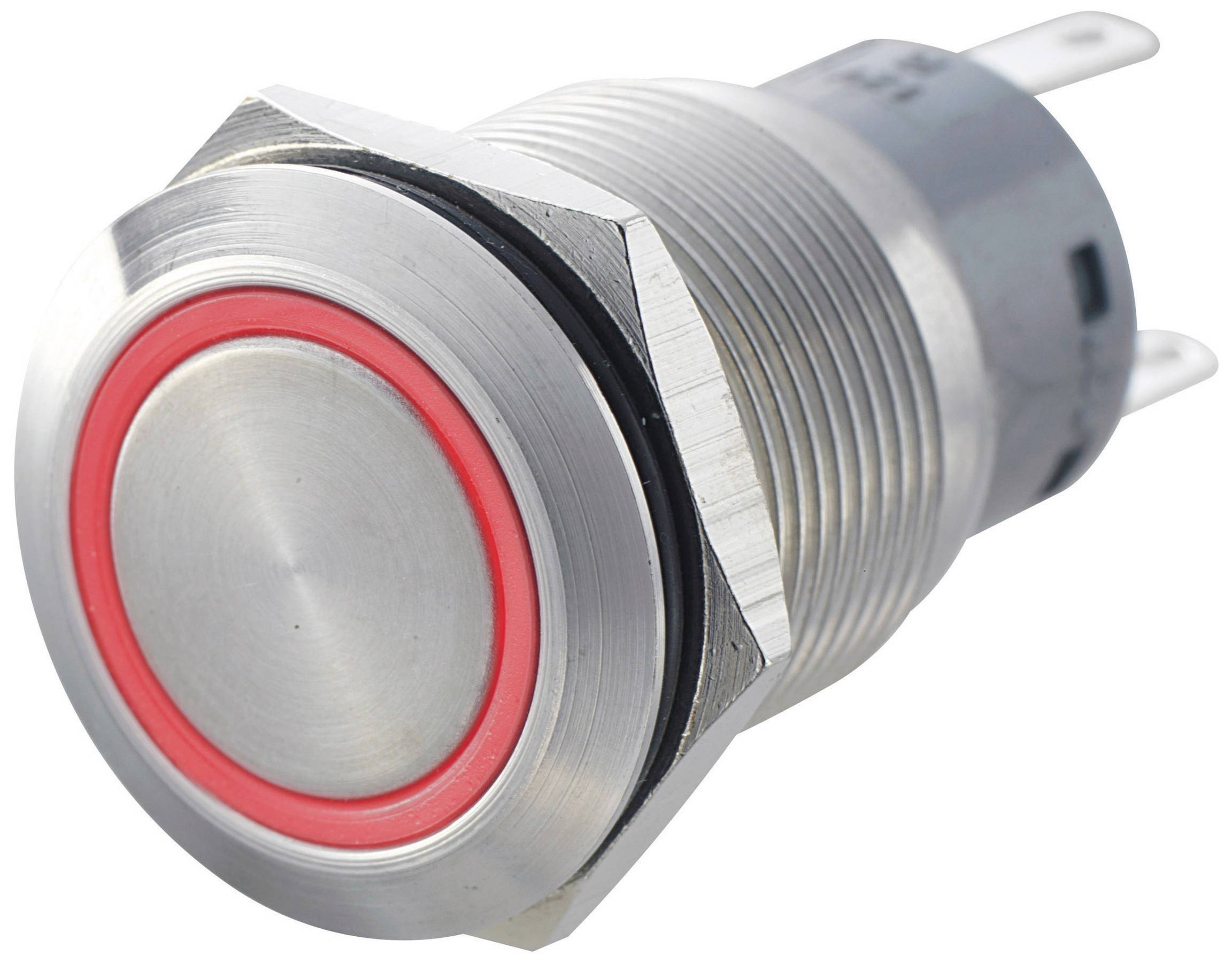

Metal switch with red LED ring, cylindrical design, suitable for mechanical devices or electronic controls.
Round, silver metal button with threading and two metal connections, typically used as a push switch in electronic devices.
Circuit diagram of a relay module 'LAS1-AGQ' with contacts NC1, NO1, NC2, NO2. Lower section shows an electrical circuit with a diode and resistor.
Drawing of an electrical switch with dimensions: Overall size 37 mm, diameter 22 mm, front view with three terminals.
1/4
Product type
Tamper-proof pushbutton
Lighting type
Circular lighting
Switch position
2 x On/(On)
Contact type
2 makers
2 breakers
Connection
Soldering
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Tue 3 Nov
182 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 15.12 / piece)
€ 21.99
-31 %
€ 15.12
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

TRU COMPONENTS 701311 LAS1-AGQ-22E, RD Tamper-proof pushbutton 250 V AC 5 A 2 x On/(On) momentary Red IP67 1 pc(s)

  • IP67 protection

Technical specifications

  • Voltage bulb 12 V
Product type

Tamper-proof pushbutton

Switch/button features

Planar

Casing/button colour

Stainless steel

Functions

momentary

Lighting type

Circular lighting

Colour

Red

Bulb type

LED (monochrome)

Switch position

2 x On/(On)

Contact type

2 makers

2 breakers

Material

Stainless steel

Contact material

Silver alloy

Connection

Soldering

Contact resistance

≤ 50 mΩ

Switching voltage

250 V AC

Switching current (max.)

5 A

Dielectric strength

2000 V AC

Min. temperature

-20 °C

Max. temperature

+70 °C

Durability

1000000 cycles

Recess diameter

19 mm

Electrical lifespan

50000 cycles

IP67

Actuating force

5.5 N

Content

1 pc(s)

Insulation resistance

≥ 1000 MΩ

Board thickness (max.)

10 mm

Type

LAS1-AGQ-22E, RD

Material (details)

Stainless steel

Switching current

5 A

Type

LAS1-AGQ-22E, red

Actuating force

5.5 N

Connection

Soldered connections

Temperature range

-20 - +70 °C

Documents & Downloads

Datasheet

Datasheet 701311 TRU COMPONENTS 701311 LAS1-AGQ-22E, RD Tamper-proof pushbutton 250 V AC 5 A 2 x On/(On) momentary Red IP67 1 pc(s)

User & Safety Instructions

User & Safety Instructions 701311 TRU COMPONENTS 701311 LAS1-AGQ-22E, RD Tamper-proof pushbutton 250 V AC 5 A 2 x On/(On) momentary Red IP67 1 pc(s)

Description

Hints

The LED can be controlled separately.
